EATON CHP42B200X7 CENTER LOAD BRKR MAIN 120/240VAC 200A 84 POLES 25 KA INTERRUPT

Product Description

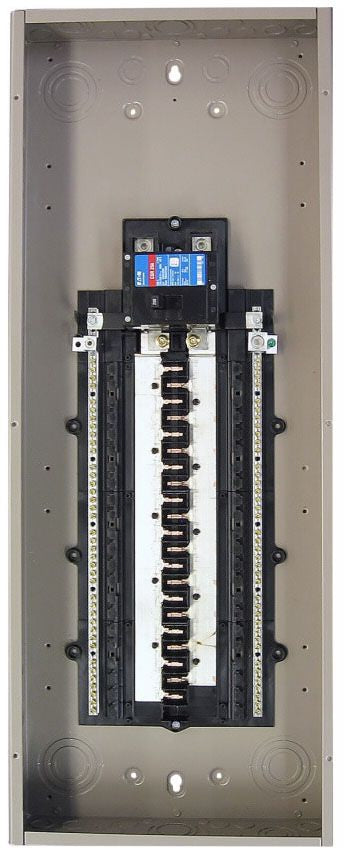

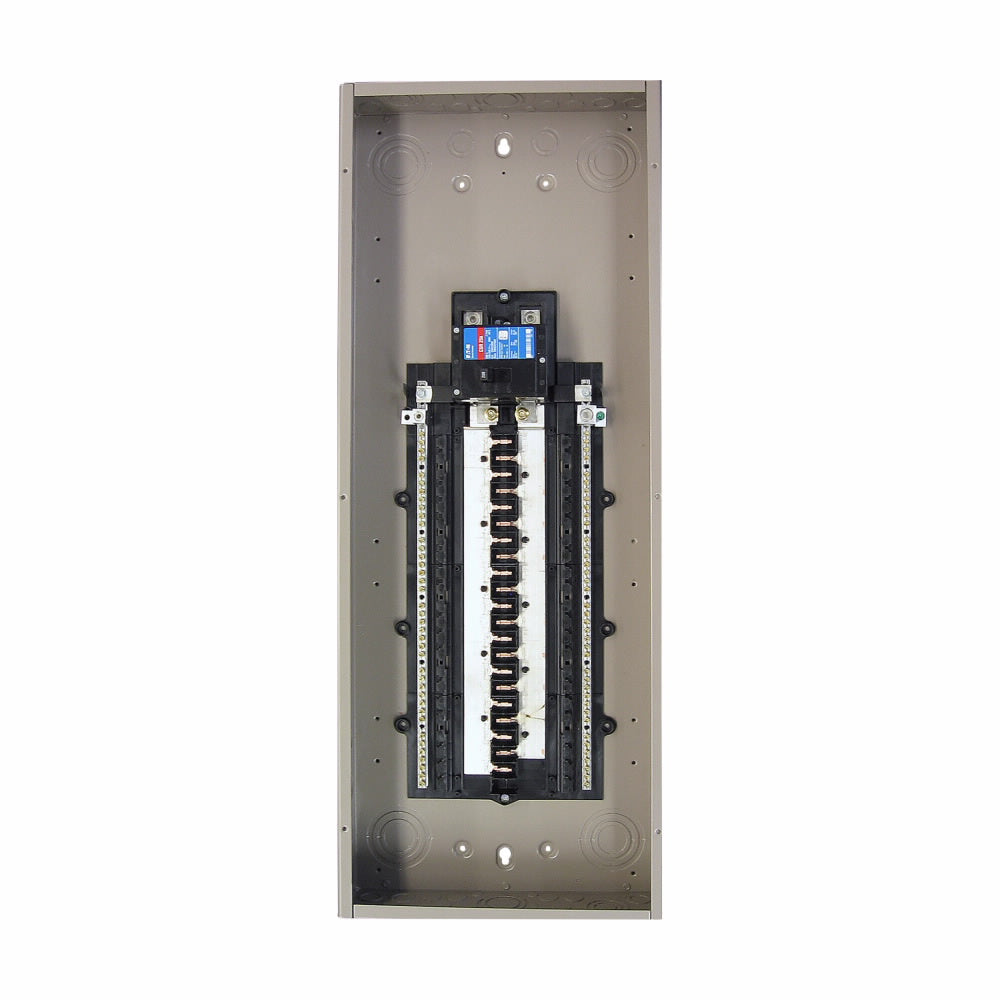

The EATON CHP42B200X7 is a one-phase insulated and bondable split main breaker load center. It operates on a voltage range of one hundred twenty to two hundred forty volts alternating current and has an amperage rating of two hundred amps. This load center is designed to accommodate eighty-four poles and provides a twenty-five kiloamp interrupting capacity. It is suitable for residential and light commercial applications.

• Plug-on neutral breaker mounting.
• Configurations for three wires.
• Compatible with wire sizes from two AWG to three hundred kcmil.

Product Highlights

This load center provides efficient electricity distribution within homes. Its robust design offers both reliability and safety, catering to various electrical assemblies and panels.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHP42B200X7

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 84
• Number of Circuits: 42
• Enclosure Type: NEMA 1
• Housing Material: Sheet Steel
• Dimensions: 37 inches L x 14.31 inches W x 3.88 inches H
• Interrupt Rating: 25 kA
