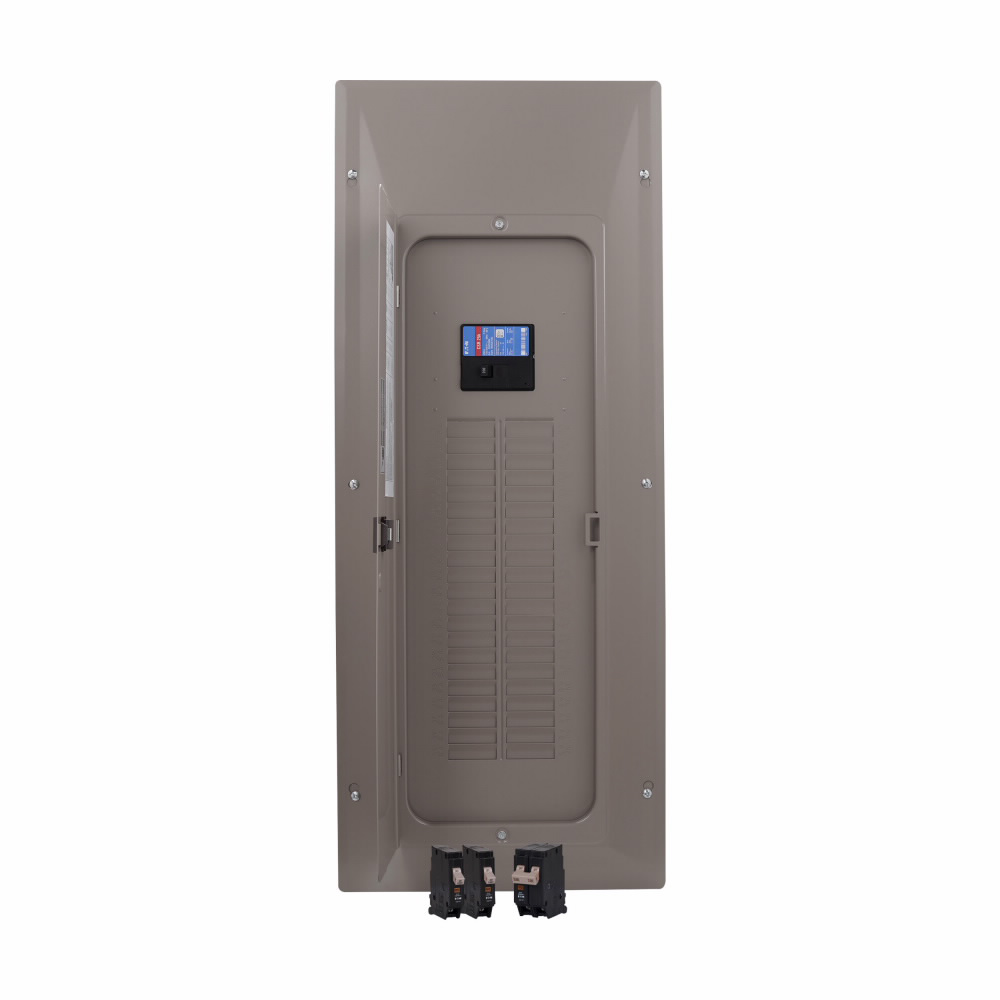

EATON CHP42B200V29 1-Phase Main Breaker Load Center 120/240 VAC 200 A 84 Poles 25 kA Interrupt

Product Description

The EATON CHP42B200V29 is a 1-phase main breaker load center designed for use with 120/240 VAC systems. It has an amperage rating of 200 A and accommodates up to 84 poles with a 25 kA interrupt rating.

• 200 A main breaker load center with 84 poles
• NEMA 1 enclosure type, suitable for indoor installations
• Plug-on neutral mounting for easy installation

Product Highlights

This load center is ideal for residential or light commercial applications where reliable power distribution is essential.

Product Information

Standard Information

• Manufacturer: EATON
• Enclosure Type: NEMA 1

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Dimensions: 38 inches L x 15.31 inches W x 4.1 inches H
• Breaker Type: CH/CSR
• Number of Spaces: 42
• Wire Size: 6 to 1/0 AWG
• Interrupt Rating: 25 kA
• Number of Circuits: 84
• Special Features: Twin neutral bars for increased capacity
