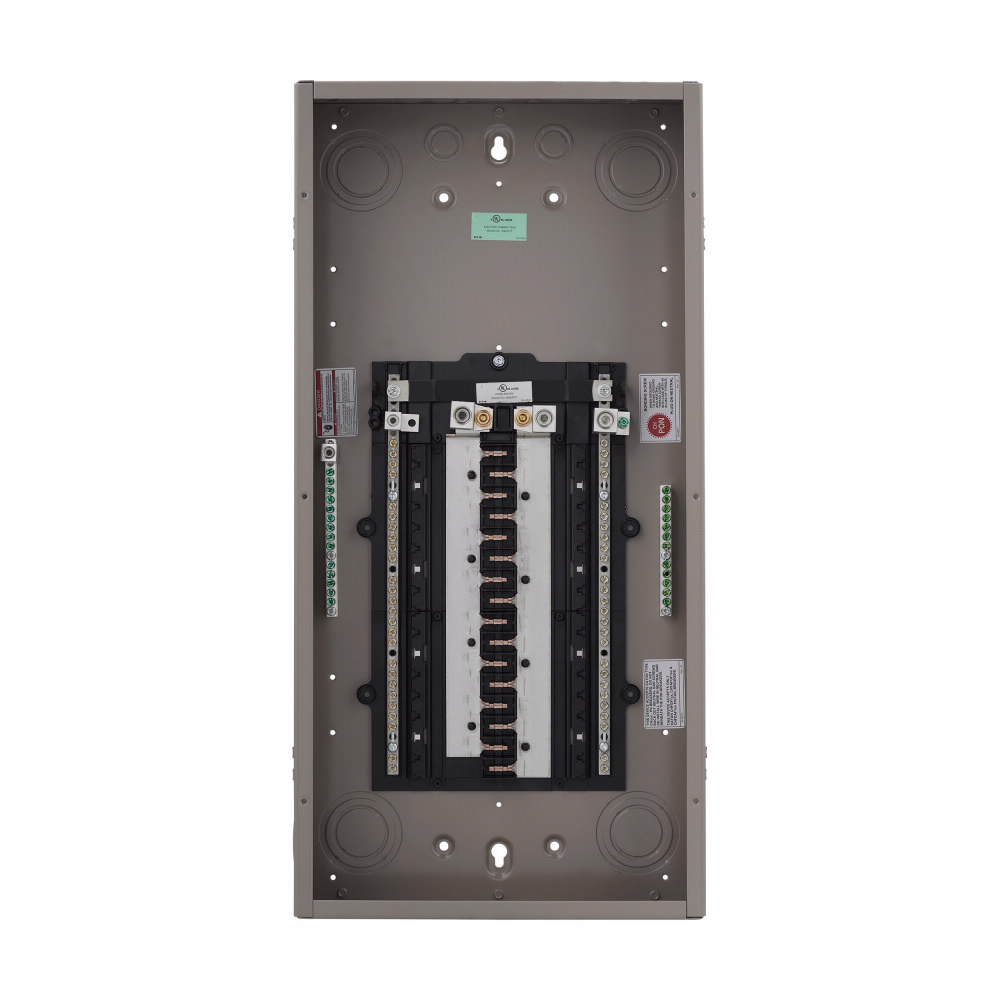

EATON CHP32L225X5 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 VAC, 225 A, 64 Poles, 25 kA Interrupt

Product Description

The EATON CHP32L225X5 is a main lug load center with a rating of 225 amps and 120/240 volts AC. This product features a plug-on neutral configuration and is designed to accommodate a wire size ranging from four AWG to three hundred Kcmil for both copper and aluminum wires. It is suitable for use in residential and light commercial applications where power distribution and circuit protection are necessary. Load centers offer a vital service by distributing electricity to multiple circuits within a building.

• Designed for plug-on neutral applications.
• Compatible with 64 circuit breakers, supporting a maximum of 64 circuits.
• Constructed with a steel enclosure for durability and NEMA 1 compliance.

Product Highlights

This load center features a single-phase insulated design, ideal for safe and efficient circuit protection. The unit measures twenty-nine inches long, fourteen point three inches wide, and four inches high, making it a compact yet powerful solution for electrical needs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHP32L225X5

Technical Specifications

• Amperage Rating: 225 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 64
• Number of Poles: 64
• Dimensions: 29 in L x 14.3 in W x 4 in H
• Interrupt Rating: 25 kA
• Enclosure Type: NEMA 1
• Wiring Configuration: 3-Wire
• Housing Material: Sheet Steel
• Special Features: Plug-on Neutral
