Product Description

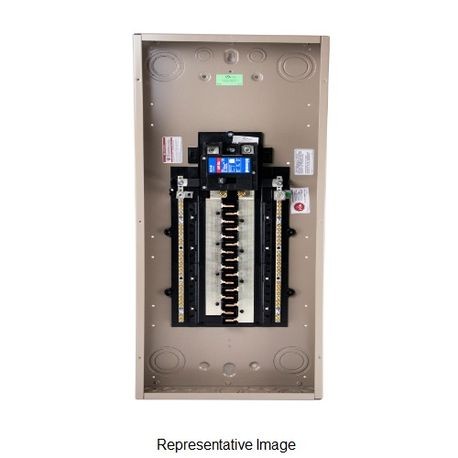

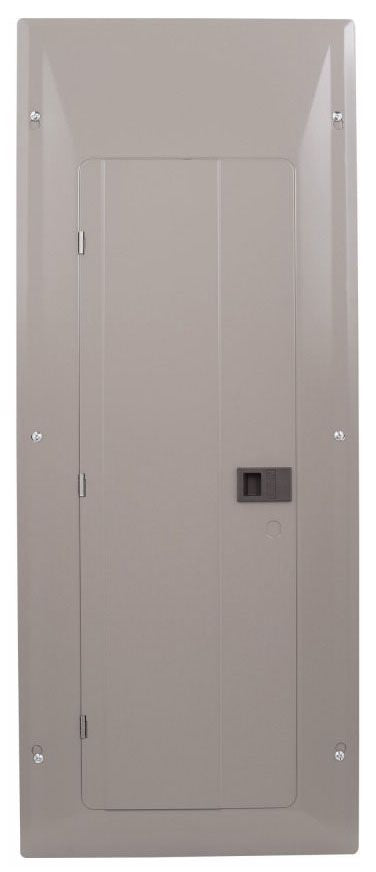

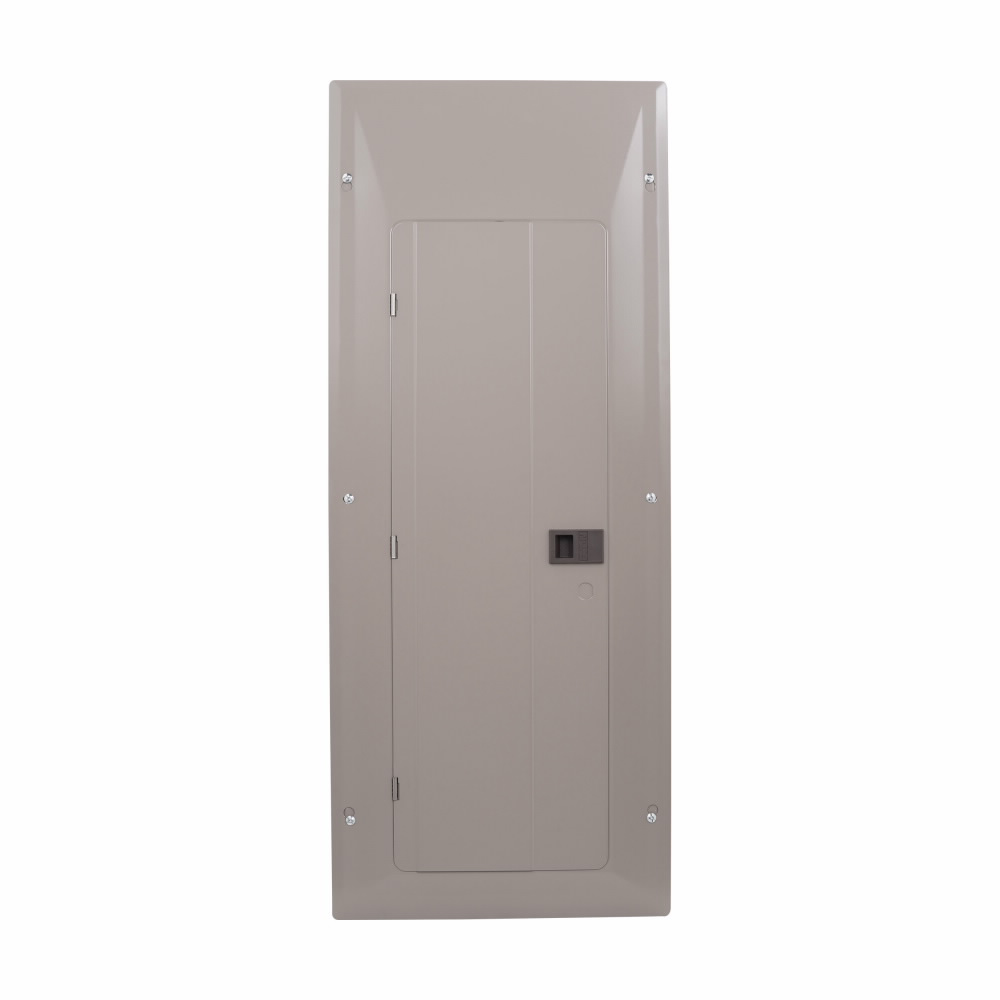

EATON CHP32B200X6 is a single phase insulated and bondable split main breaker load center rated for 120/240 VAC at 200 amps and includes one pole. This unit serves as a housing for branch circuit breakers and wiring that distributes power to individual circuits. It can be used as a main breaker at the service entrance point or as a sub-panel. This load center is designed for ease of installation and maintenance.
- Rated for 200 amps, compatible with 2 AWG to 300 kcmil wire
- Includes a total of 32 circuit spaces
- Features a plug-on mounting design for simple installation
Product Highlights
This load center includes a bonding Z-strap for easy field conversion for service applications, twin neutral bars with a minimum of 150% neutral capacity, and drywall markings on the enclosure for proper mounting depth.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part No: CHP32B200X6
Technical Specifications
-
Type: 1-Phase Insulated/Bondable Split
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 200 A
-
Number of Poles: 1
-
Number of Spaces: 32
-
Dimensions: 34.13 in L x 14.31 in W x 3.88 in H
-
Enclosure Type: NEMA 1
-
Interrupt Rating: 25 kA
-
Mounting Type: Plug-On
-
Housing Material: Sheet Steel
-
Wire Size: 2 AWG to 300 kcmil
-
Wiring Configuration: 3-Wire
-
Maximum Number of Circuits: 64
