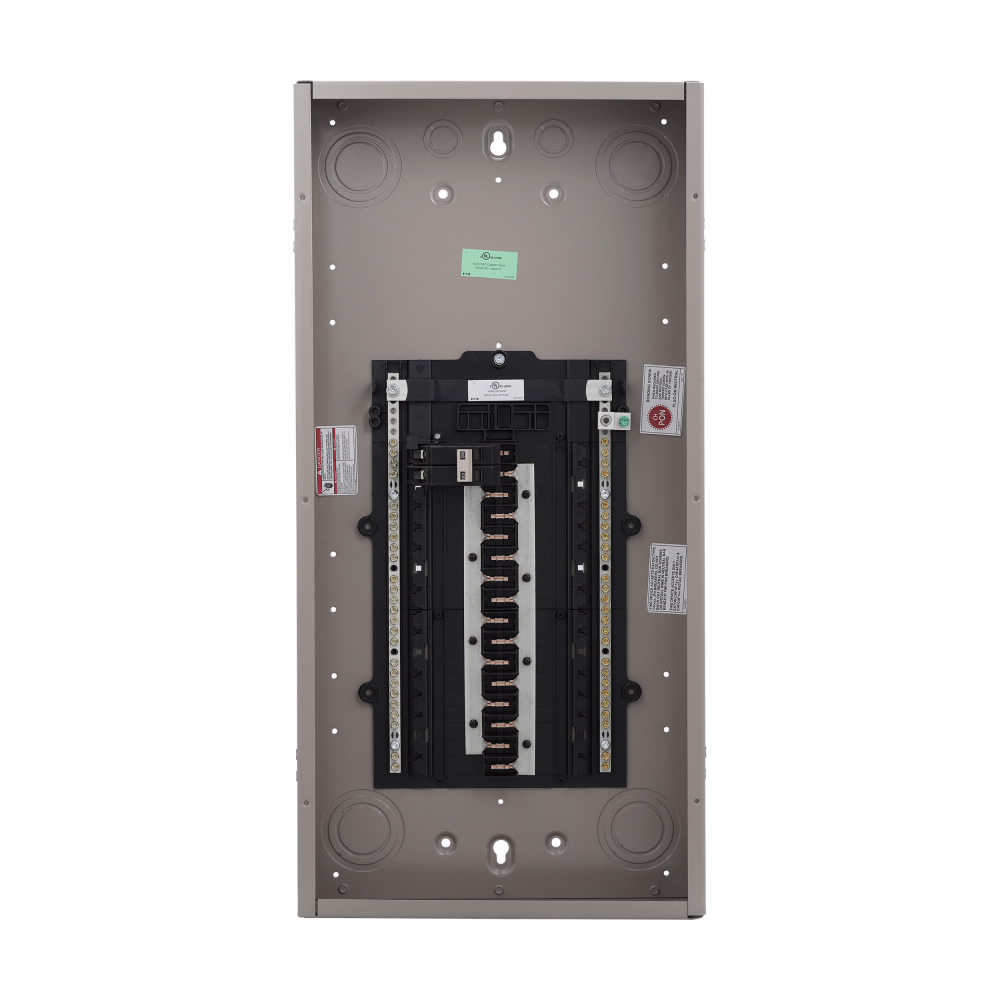

Eaton CHP30B100X5 Center Load Brkr Main 120/240VAC 100A 60 Poles 10 kA Interrupt

Product Description

The Eaton CHP30B100X5 is a main breaker load center designed for efficient power distribution in residential and light commercial applications. This product operates at 120/240 VAC, delivers 100 A, and features a maximum interrupt rating of 10 kA. It is ideal for various electrical assemblies and applications.

• Designed for 120/240 VAC systems
• Accommodates up to sixty poles
• Handles circuits up to 100 A

Product Highlights

The Eaton CHP30B100X5 supports three wiring configurations and is made with sheet steel housing. It comes with plug-on neutral breaker mounting, ensuring easy installation.

Product Information

Standard Information

• Brand: Eaton
• MPN: CHP30B100X5

Technical Specifications

• Type: 1-Phase Insulated/Bondable Split
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Poles: 60
• Number of Circuits: 30
• Dimensions: 29 in L x 14.31 in W x 3.88 in H
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 1
• Wire Size: 6 to 1/0 AWG
• Breaker Type: CH
• Mounting Type: Plug-On Neutral
