EATON CHP24L125X2 CENTER LOAD LUG MAIN 120/240VAC 125A 48

Product Description

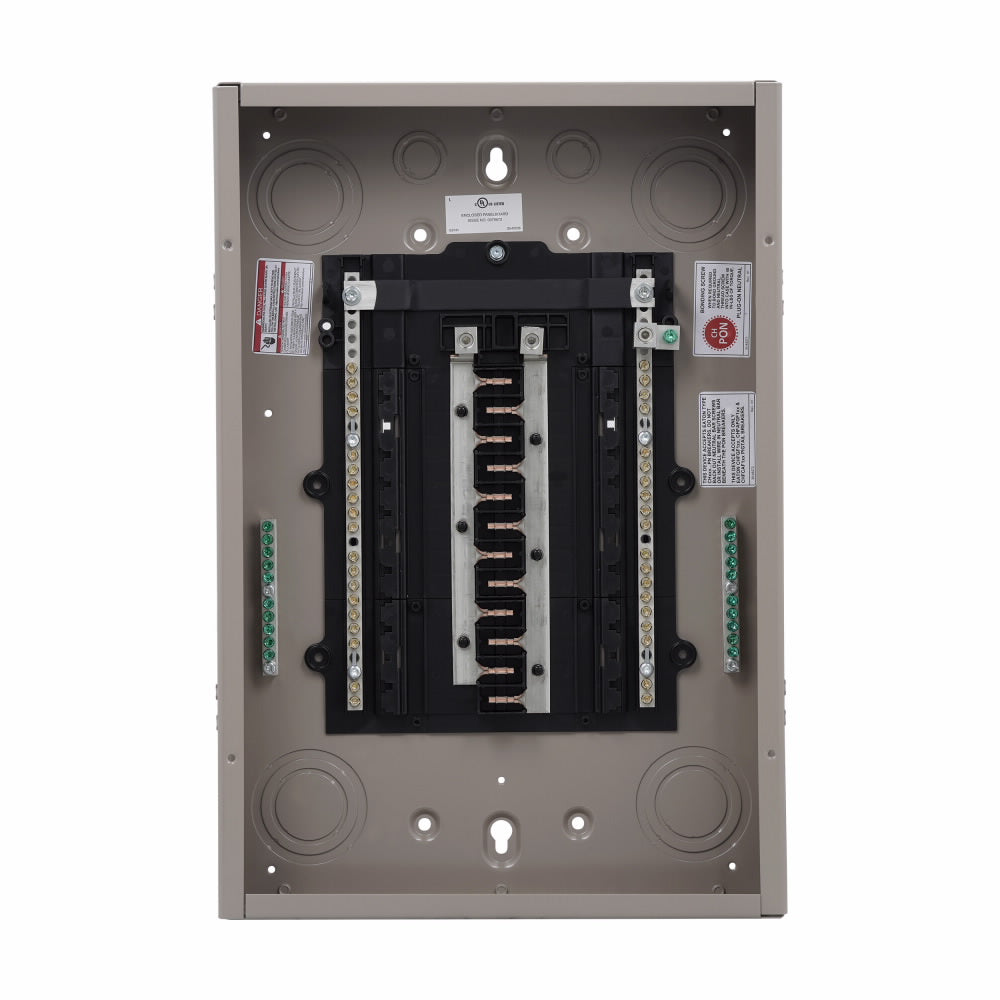

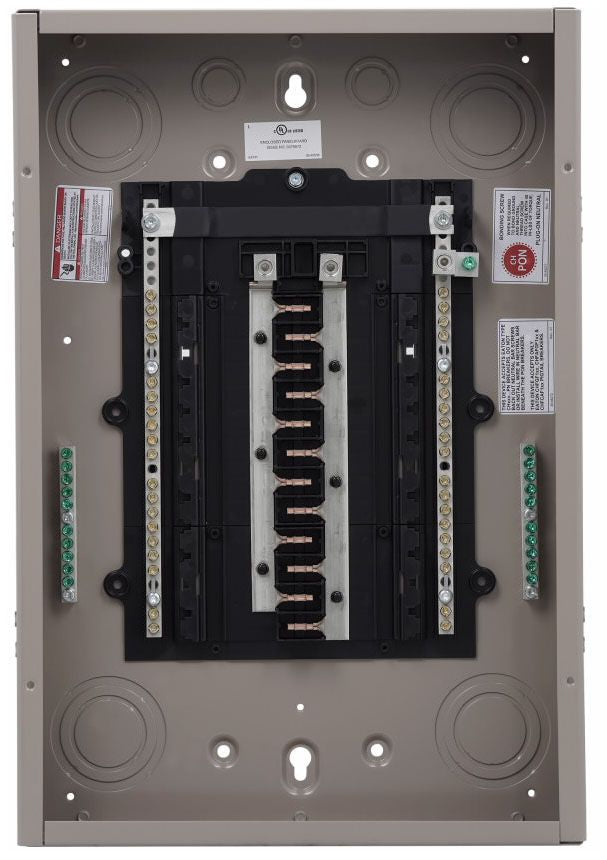

EATON CHP24L125X2 is a main lug load center rated for 120/240 VAC at 125 A. This unit is designed to accommodate 48 circuits and is ideal for residential and light commercial applications. It utilizes a plug-on neutral breaker mounting system.

• 1-Phase insulated/bondable split standard.
• 25 kA interrupt rating for enhanced protection.

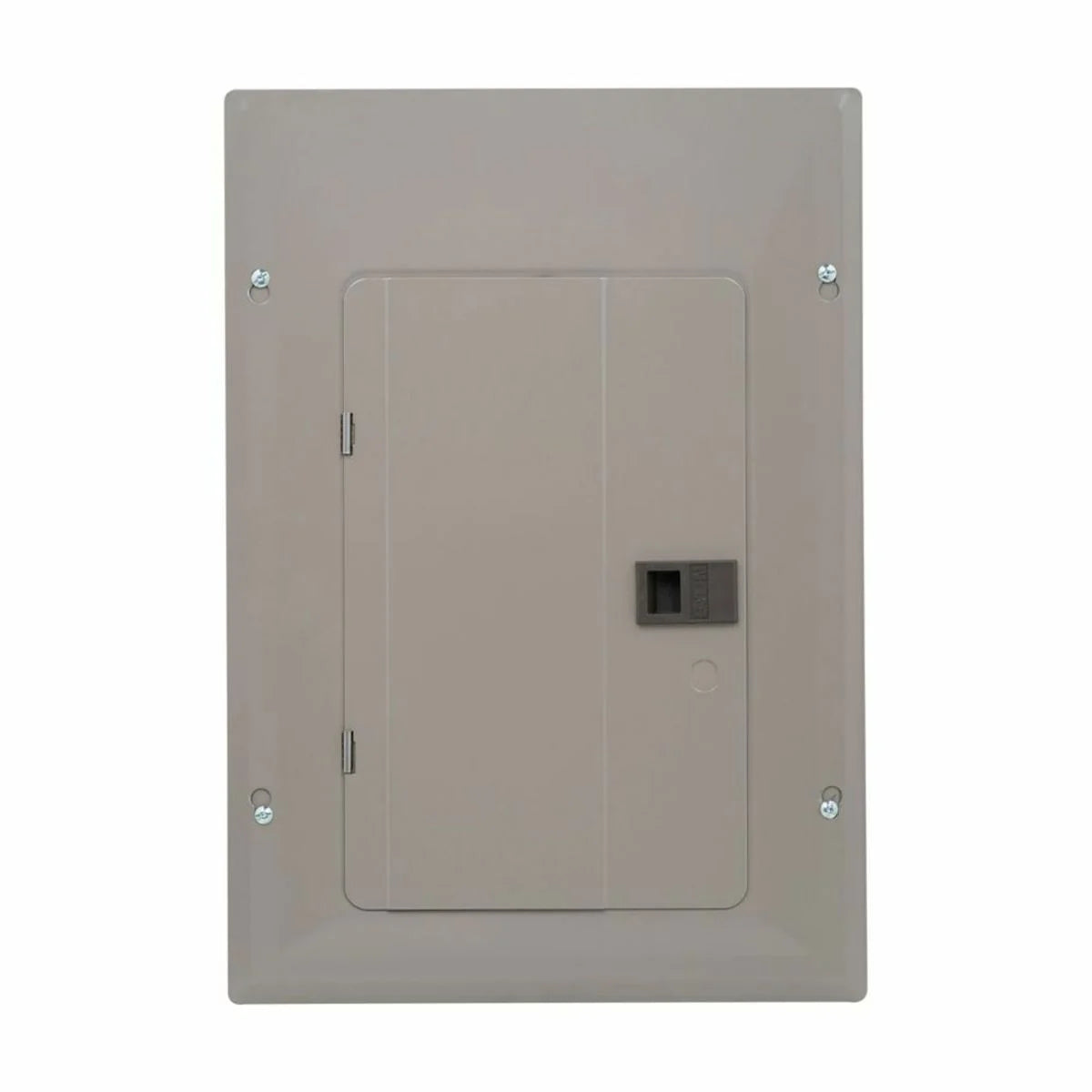

• Enclosure made from durable sheet steel, fitting NEMA 1 standards.

Product Highlights

This load center provides electrical assemblies with robust power distribution and circuit protection. Its design allows for an effective and safe means of managing electrical loads.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: CHP24L125X2

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 48
• Number of Spaces: 24
• Dimensions: 21 inches L x 14.3 inches W x 4 inches H
• Wiring Configuration: 3-Wire
• Interrupt Rating: 25 kA
• Wire Size: 6 to 2/0 AWG
