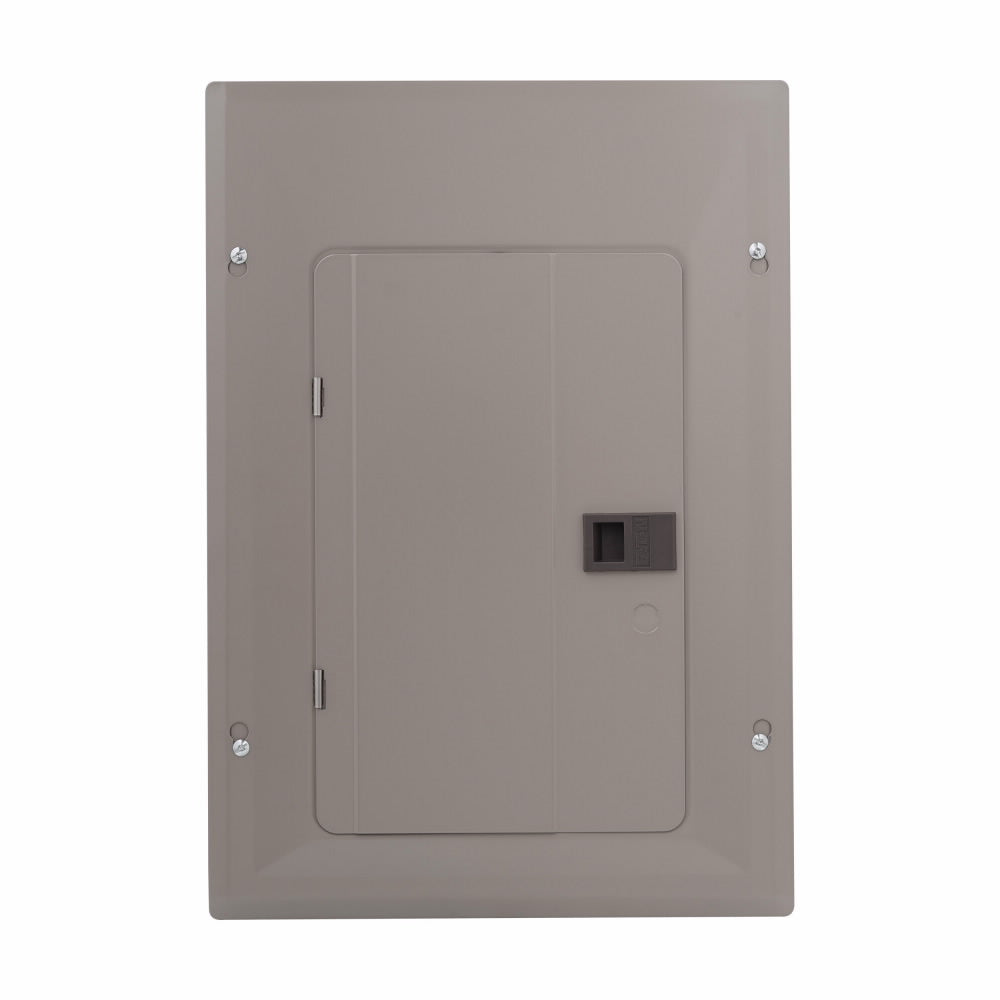

Eaton CHP22B100X2 Center Load Brkr Main 120/240VAC 100A 44

Product Description

The Eaton CHP22B100X2 is a 1-phase insulated and bondable split main breaker load center. This model operates at 120/240 VAC with a current rating of 100 A and includes 44 poles. The design features 22 circuit spaces and can interrupt at 10 kA. Its suitable applications include residential and light commercial powers distribution.

• Rated for 120/240 VAC
• Supports wire sizes from six to one/zero AWG
• Includes a plug-on neutral breaker mounting

Product Highlights

The CHP22B100X2 is designed for efficient power distribution while housing branch circuit breakers. With its sturdy sheet steel housing and NEMA 1 enclosure, this load center is ideal for various installation environments.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: 1-Phase Insulated/Bondable Split

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 44
• Number of Circuits: 22
• Interrupt Rating: 10 kA
• Dimensions: 21 inches L x 14.31 inches W x 3.88 inches H
• Wiring Configuration: 3-Wire
• Enclosure Type: NEMA 1
• Housing Material: Sheet Steel
