Product Description

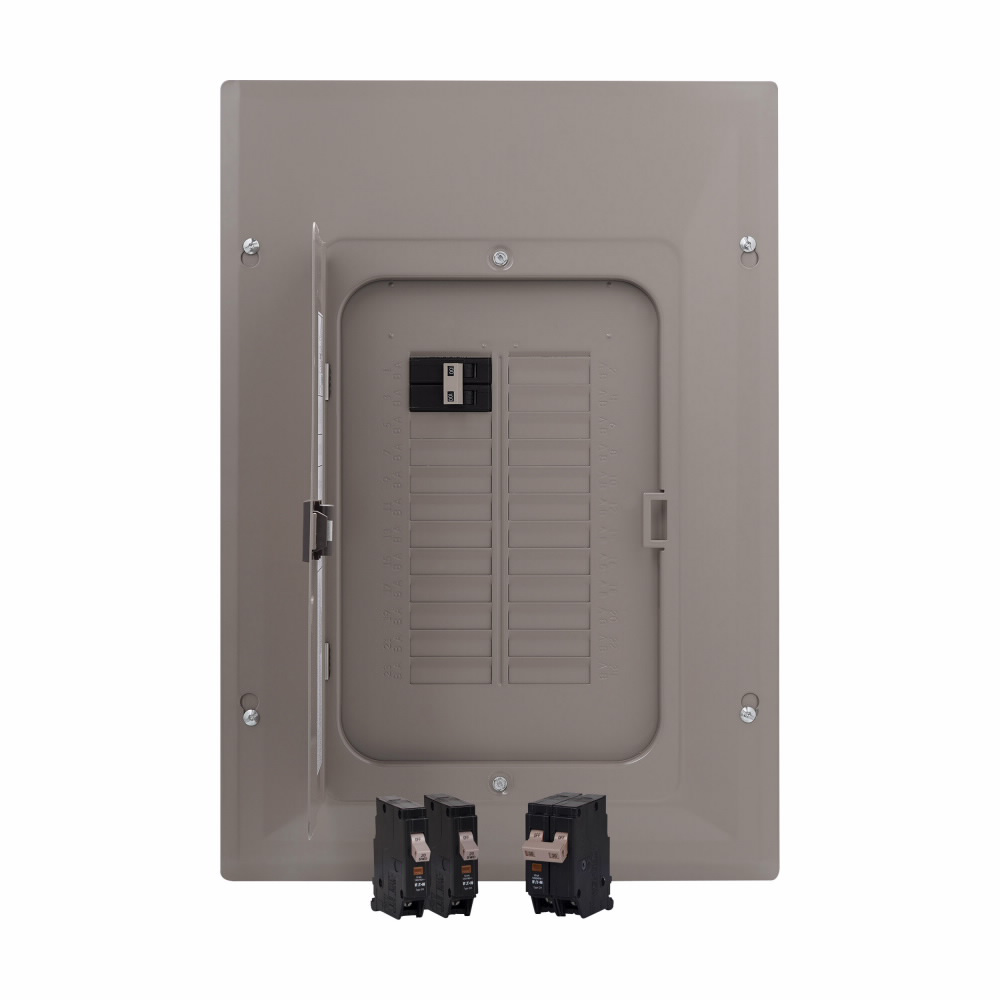

The EATON CHP22B100V29 is a main breaker load center designed for single-phase applications at 120/240 VAC. It features a 100 amp capacity and can manage up to 22 circuits. This unit is suitable for residential and light commercial installations and provides reliable power distribution and circuit protection.
- Compatible with wire sizes from six to one aught AWG.
- Metallic housing and a NEMA one enclosure type provide durability.
- Rated for 25 kA interrupt capacity enhances safety during fault conditions.
Product Highlights
This load center serves as a critical component in electrical distribution systems, ensuring safety and functionality in electrical setups.
Product Information
Standard Information
-
Manufacturer: EATON
-
Brand: EATON
Technical Specifications
-
Type: 1-Phase
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 100 A
-
Number of Circuits: 22
-
Enclosure Type: NEMA 1
-
Interrupt Rating: 25 kA
-
Dimensions: 22 inches L x 15.31 inches W x 4.1 inches H
-
Wire Size: 6 to 1/0 AWG
-
Housing Material: Metallic
