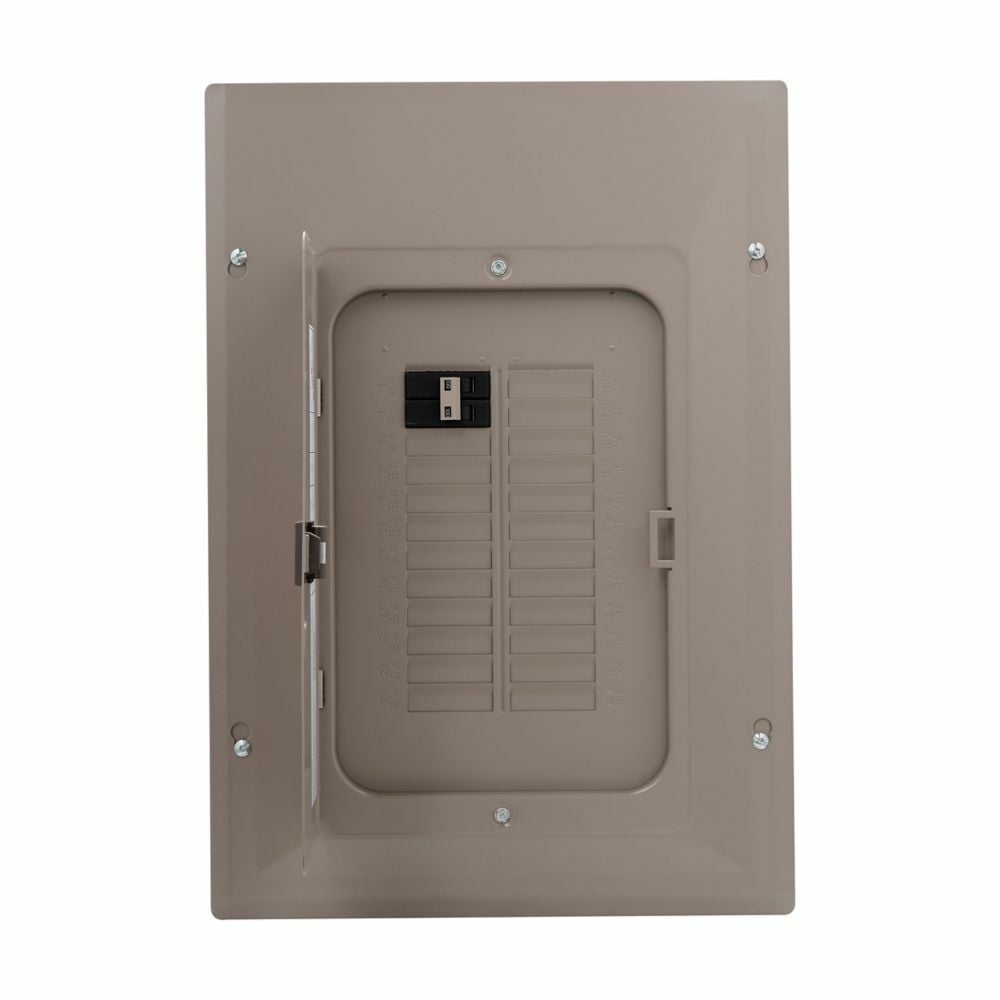

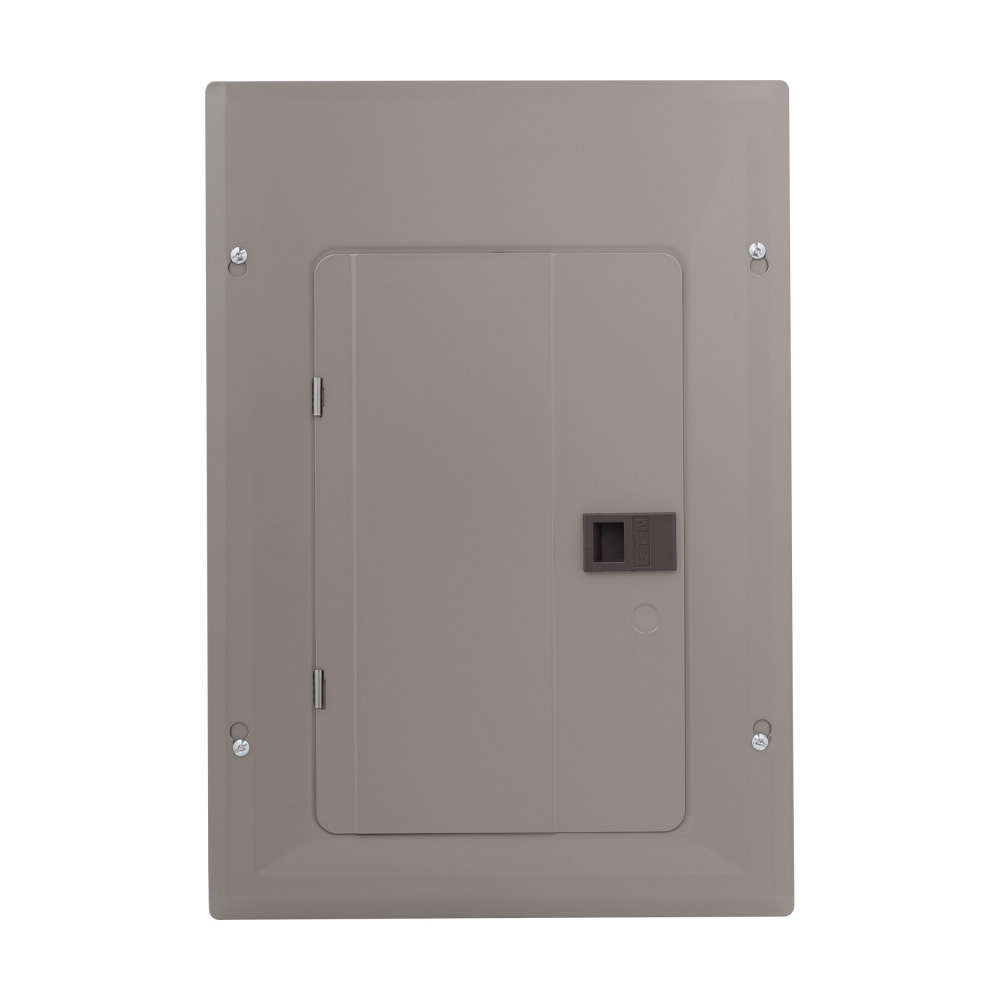

Eaton CHP22B100R CH PON LC, 100A, MB, X2

Product Description

Eaton offers the CHP22B100R CH main breaker load center, designed to provide reliable power distribution in residential settings. This load center features a main breaker rated at one hundred amperes and is compliant with NEMA 3R requirements for overhead feed applications. It accommodates up to twenty-two circuits and supports both copper and aluminum wiring.

• 100 Amp main breaker for robust power distribution
• NEMA 3R enclosure for protection against environmental factors
• Supports three-wire, single-phase overhead configurations

Product Highlights

This main breaker panel is suitable for various residential applications, including load centers, meter breaker panels, and transfer switch panels. Its compact design and efficient use of space make it a preferred choice for electricians.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: CHP22B100R

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 120/240 V
• Dimensions: 21 in L x 14.31 in W x 5.19 in H
• Enclosure Type: NEMA 3R
• Number of Circuits: 22
• Number of Poles: 44
• Wire Size Compatibility: 6 to 1/0 AWG
• Housing Material: Sheet Steel
• Includes: Cover and Hub Closure Plate
• Standards/Approvals: UL 50, UL 67
