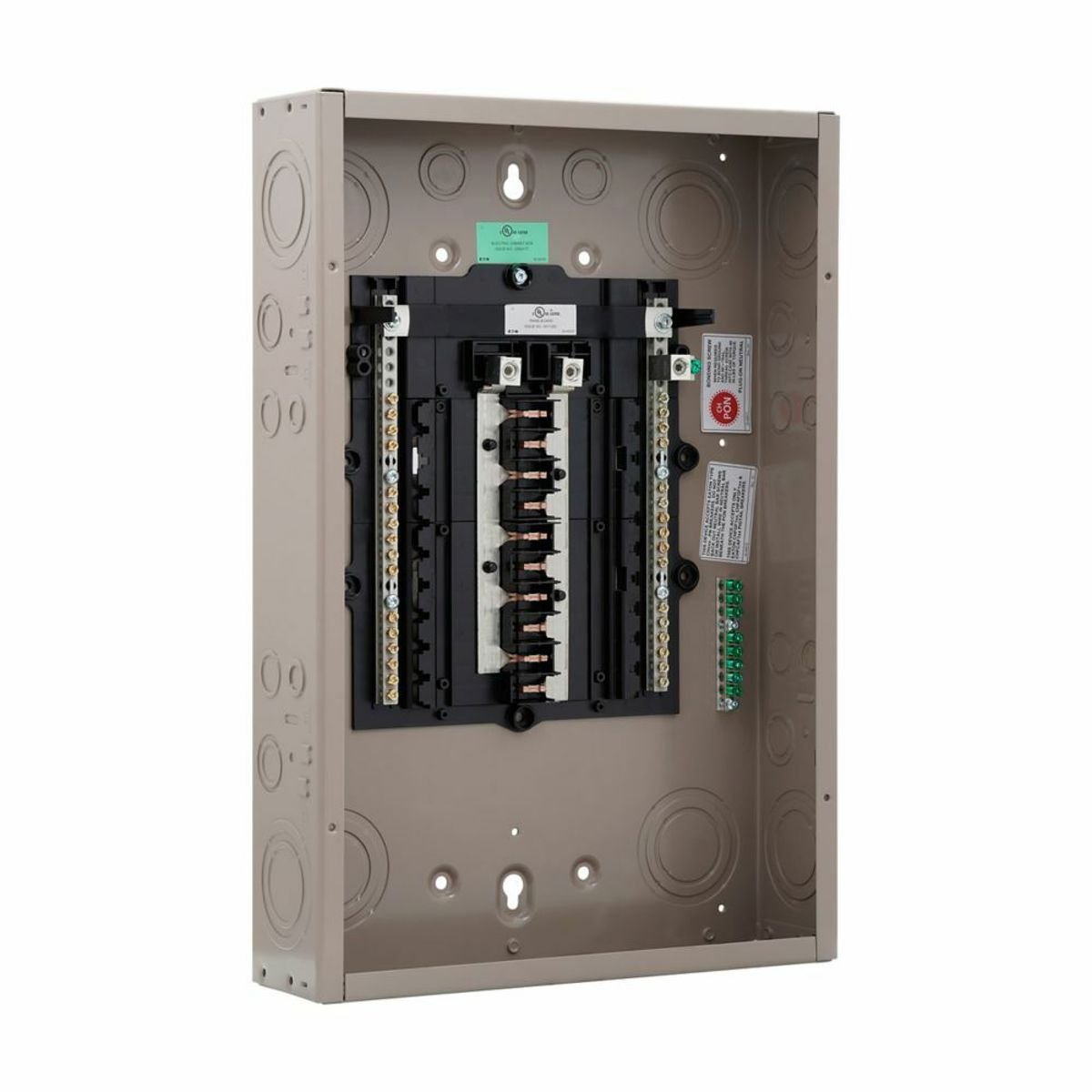

EATON CHP20L125X2 CH Main Lug Load Center, 120/240 V, 125 Amps, Single-Phase, 40 Space, NEMA 1

Product Description

The EATON CHP20L125X2 is a main lug load center designed for 120/240 V systems. It supports a maximum of one hundred twenty-five amps in a single-phase configuration. This load center has the capacity to hold up to forty circuit breakers, and it comes with an NEMA 1 enclosure suitable for indoor use.

• Constructed from sheet steel for durability.
• Features plug-on neutral breaker mounting for ease of installation.
• Designed to accommodate wire sizes ranging from six to two/zero AWG.

Product Highlights

This load center is ideal for electrical assemblies in residential and light commercial settings. Its various features enhance installation ease and operational reliability.

Product Information

Standard Information

• Manufacturer: EATON
• Voltage Rating: 120/240 VAC

Technical Specifications

• MPN: CHP20L125X2
• Amperage Rating: 125 A
• Number of Poles: 40
• Enclosure Type: NEMA 1
• Dimensions: 21 inches L x 14.3 inches W x 4 inches H
• Interrupt Rating: 25 kA
• Number of Spaces: 20
• Wiring Configuration: 3-Wire
• Mounting Type: Plug-On
