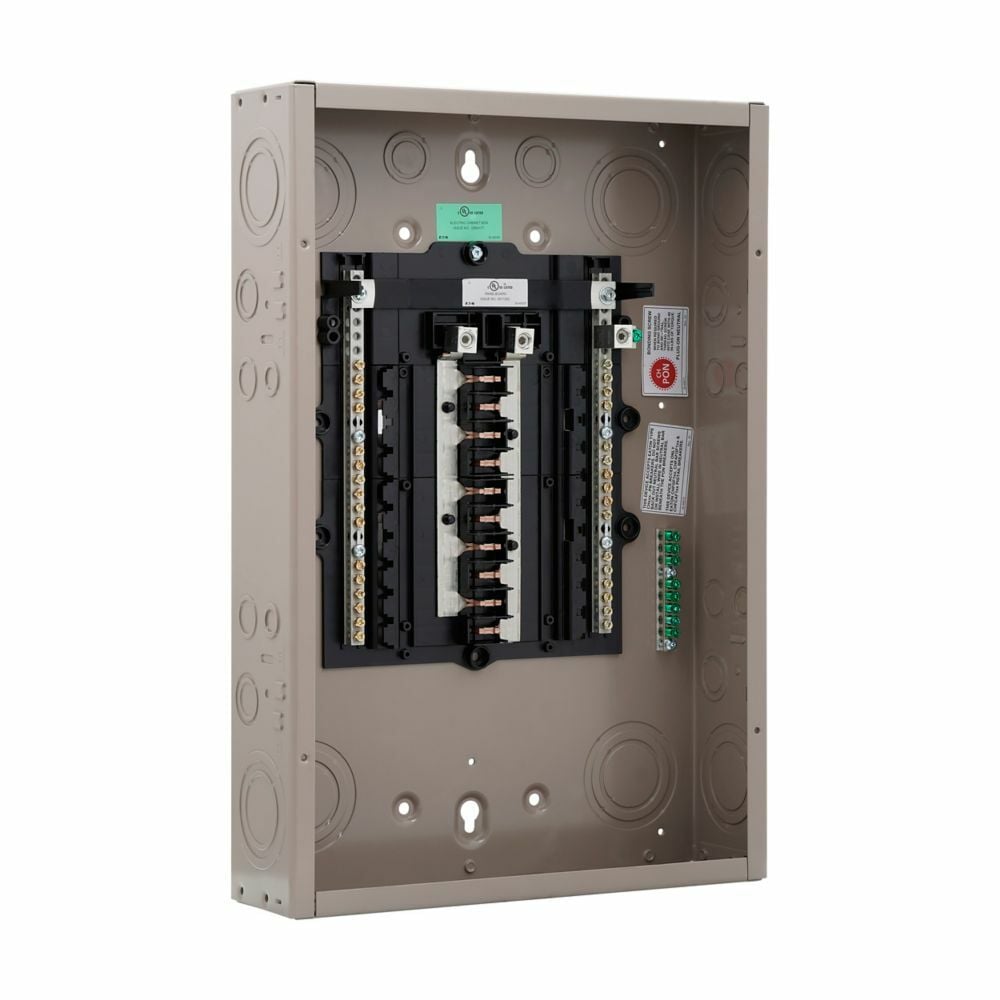

EATON CHP20L125R 1-Phase Main Lug Load Center 120/240 VAC 125 A 25 kA Interrupt

Product Description

EATON offers the CHP20L125R main lug load center designed for 1-phase systems with a voltage rating of 120/240 VAC and a current rating of 125 A. This load center provides a 25 kA interrupt rating and is perfect for residential and light commercial applications. It is capable of housing up to 40 circuits and has 20 spaces for circuit breakers. The enclosure is rated NEMA 3R, making it suitable for outdoor use. The compact design of this load center allows for easy installation, whether used as a service entrance or a sub-panel to extend existing electrical circuits.

• 1-phase main lug only configuration
• NEMA 3R enclosure protects against moisture
• Includes cover for enhanced safety

Product Highlights

This load center is efficient and easy to install. It is designed to distribute power effectively throughout a property while ensuring safety and reliability.

Product Information

Standard Information

• Brand: EATON
• MPN: CHP20L125R

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Interrupt Rating: 25 kA
• Enclosure Type: NEMA 3R
• Number of Spaces: 20
• Number of Circuits: 40
• Dimensions: 21 in L x 14.31 in W x 5.19 in H
• Wiring Configuration: 3-Wire
• Breaker Type: CH
• Includes: Cover
