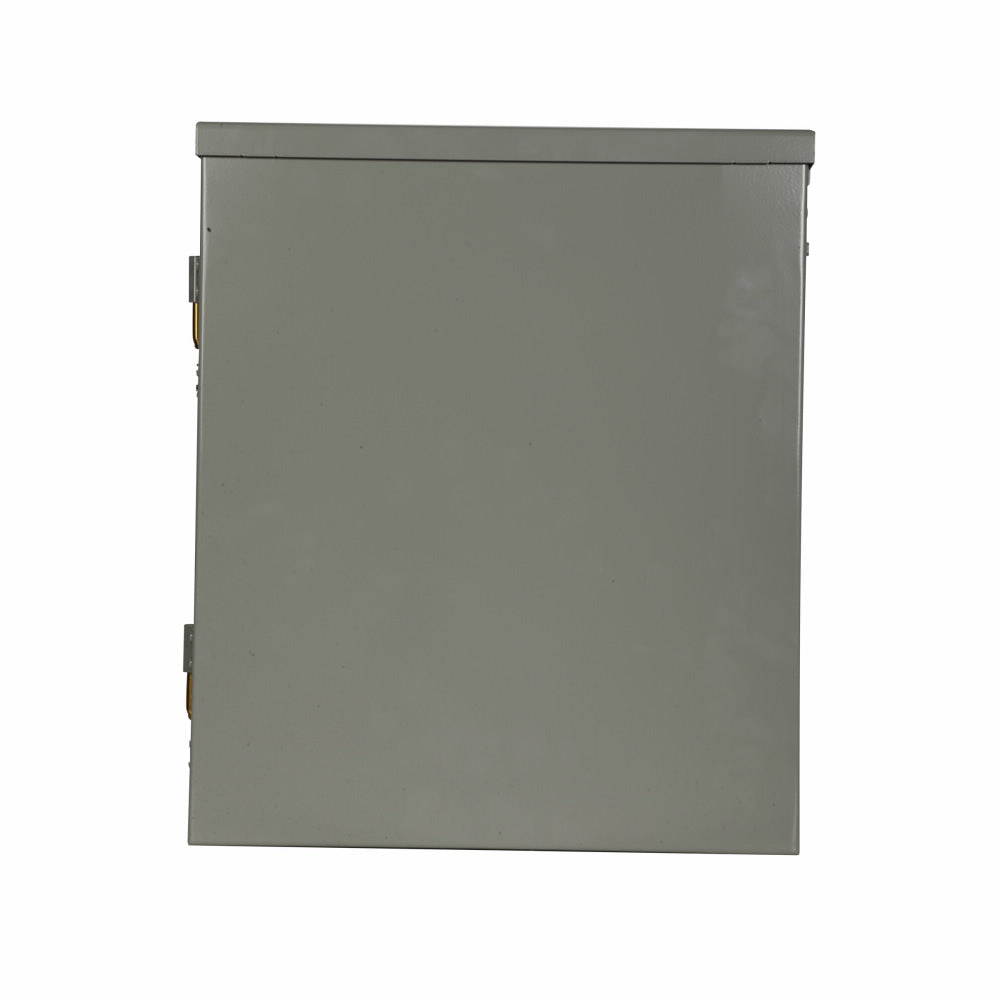

EATON CHP16L125R CENTER LOAD LUG MAIN 120/240VAC 125A 32

Product Description

EATON CHP16L125R is a 1-phase main lug load center rated for 120/240 VAC and 125 A. It features a 25 kA interrupt rating and accommodates up to thirty-two circuits, making it suitable for various residential and light commercial applications.

• Plug-on neutral breaker mounting
• Durable NEMA three R enclosure
• Includes cover for protection

Product Highlights

This load center is designed to manage the distribution of electrical power effectively. It protects against circuit overload and allows for the installation of branch circuit breakers.

Product Information

Standard Information

• Catalog Number: CHP16L125R
• Brand: EATON

Technical Specifications

• Type: 1-Phase
• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 25 kA
• Number of Spaces: 16
• Number of Circuits: 32
• Wiring Configuration: 3-Wire
• Enclosure Type: NEMA 3R
• Dimensions: 18.4 in L x 15.4 in W x 5.6 in H
