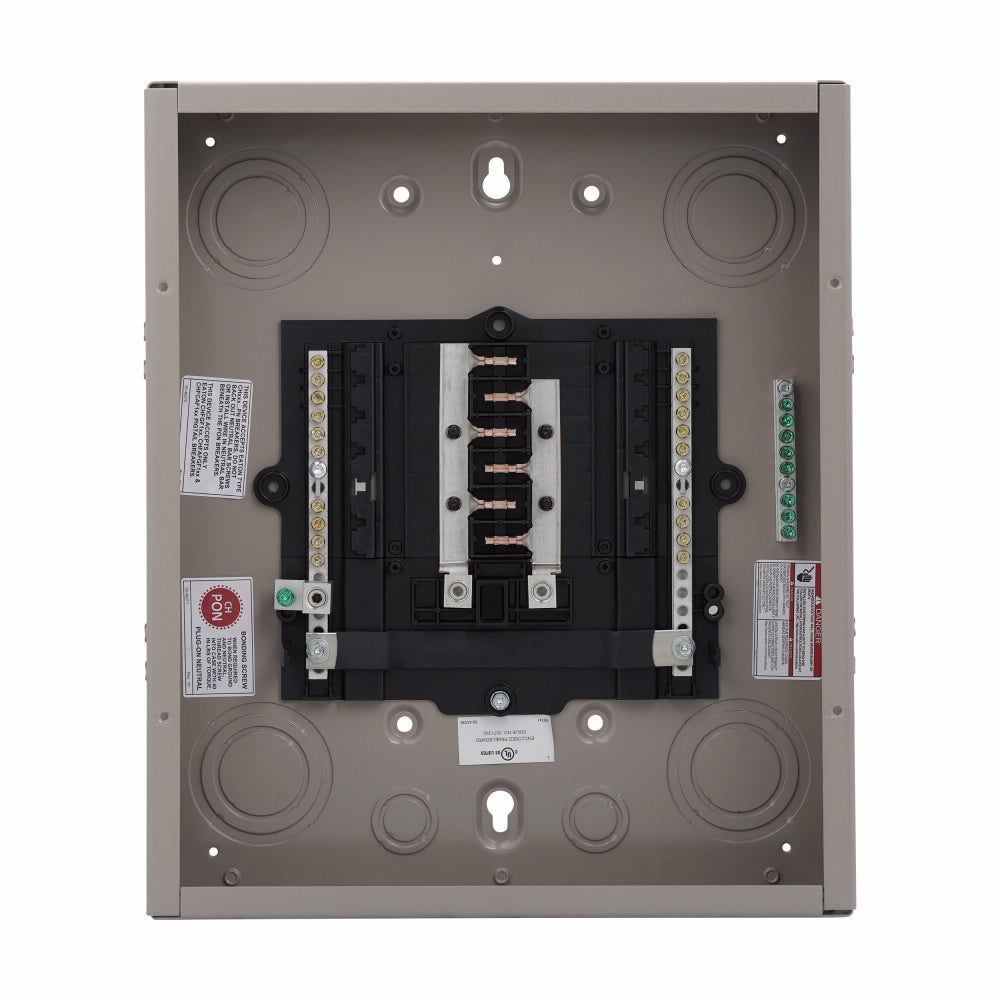

Eaton CHP12L125X0 Center Load Lug Main 120/240VAC 125A 24 Poles 25 kA Interrupt

Product Description

The Eaton CHP12L125X0 is a main lug load center rated for 120/240 VAC and 125 A. This load center features 24 poles and a maximum interrupt rating of 25 kA, making it suitable for various residential and commercial applications. Ideal for use in electrical assemblies and light commercial distribution, the load center has a compact design, optimized for efficiency and ease of installation.

• Rated for 120/240 VAC and 125 A
• 24 Poles for circuit distribution
• NEMA 1 indoor enclosure provides protection
• Item doesn't come with cover

Product Highlights

This load center offers a plug-on neutral breaker mounting, with a 3-wire configuration. It allows the use of wire sizes from 6 to 2/0 AWG copper or aluminum. The durable sheet steel housing ensures longevity and reliability in various installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: CHP12L125X0

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Enclosure Type: NEMA 1
• Number of Poles: 24
• Number of Circuits: 24
• Dimensions: 16.75 in L x 14.3 in W x 4 in H
• Mounting Type: Plug-On
• Interrupt Rating: 25 kA
