Product Description

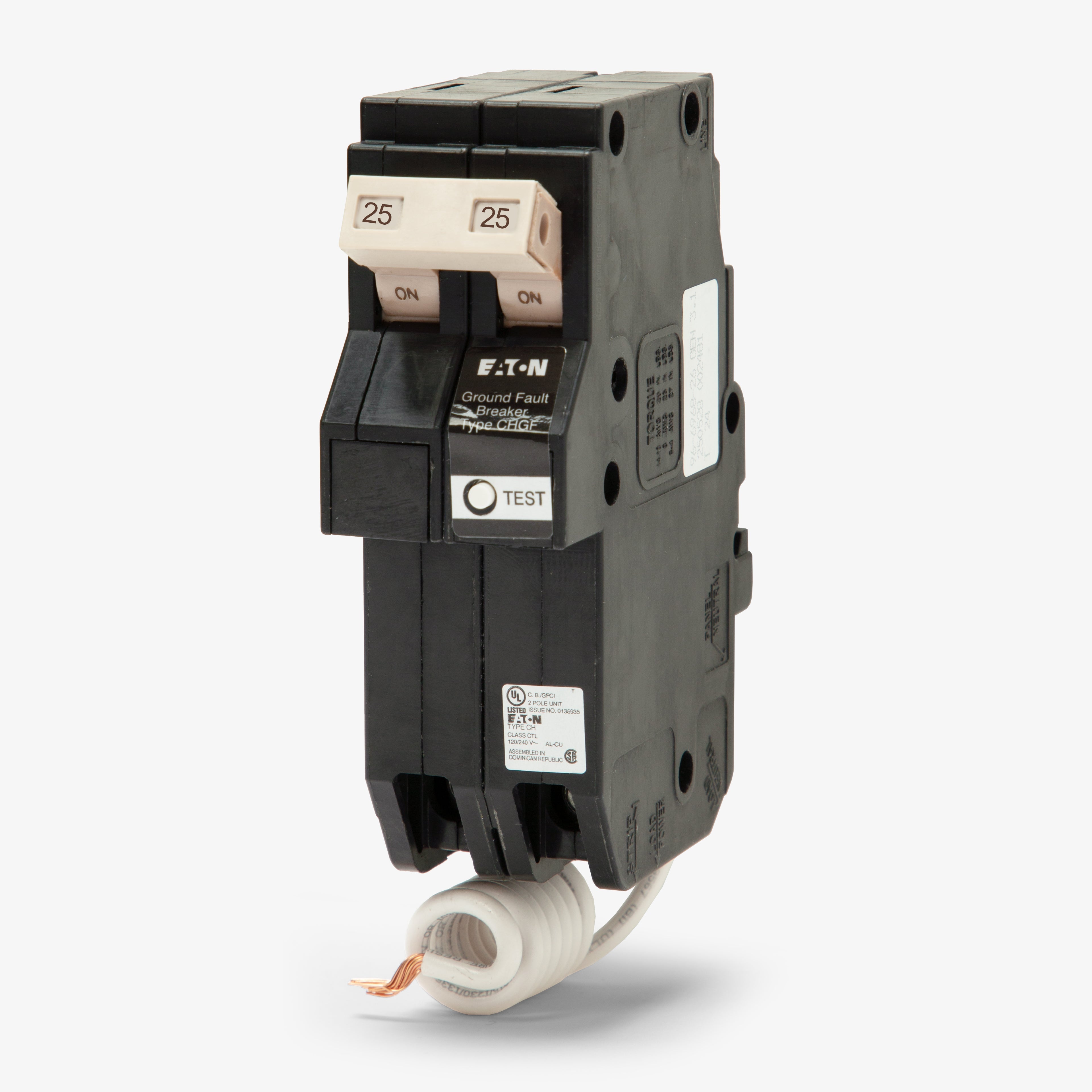

The EATON CHN225GF Miniature Circuit Breaker is a 2-pole, 25 Amp, 120/240V GFCI device for residential and commercial safety. It provides premium overload and 5mA Class A ground fault protection, preventing shock hazards. This plug-in circuit breaker features a thermal-magnetic trip curve, avoiding nuisance tripping while reacting quickly to short-circuit conditions. It includes a trip flag and common trip functionality, ensuring simultaneous operation of all poles. UL 489 certified, it installs into Eaton CH loadcenters.
- Trips to the OFF position, eliminating nuisance callbacks.
- Includes a trip flag to differentiate between a trip and the breaker being turned off.
- Thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting instantaneously to severe short-circuit conditions.
Product Highlights
Provides 5mA Class A ground fault protection and 10 kAIC interrupt rating for enhanced safety and reliable circuit protection.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CHN225GF
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: CHN225GF
-
Manufacturer: Eaton
-
Brand: Eaton
-
Amperage Rating: 25 A
-
Application: OtherDatacenters - IT Space: CI and Hyper ConvergedMarine Vessels and Equipment - Marine Vessels and Equipment - OtherGeneration - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative Energy
-
Interrupt Rating: 10 kAIC @ 120/240VAC
-
Number of Poles: 2
-
Standard: UL 489, CSA C22.2 No. 5, UL 943
-
Item Type: GFCI circuit breakers
-
Trip Type: Common
-
Voltage Rating: 120/240 V
-
Mounting Type: Plug-In
-
Indicators: GFI
-
Protection: 5 mA
-
Main Circuit Breaker: CH
-
Series: CHN
-
Phase: 1
-
Special Classification: GFCI
-
Terminal Type: Box Lugs
-
For Use With: Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LIG
-
Trip Function: Long-Time, Instantaneous, Ground Fault
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG (Cu/Al)
-
Max Wire Gauge: 4 AWG
-
Min Wire Gauge: 14 AWG
-
Available Options: Padlock Attachment
-
Accessories: Pigtail Neutral Wire
-
Approval: CSA, UL
-
Temperature Rating: 40C
-
Construction Features: HACR Rated, Common Trip, Self-Test
-
Category: Ground Fault GFCI Plug-In Circuit Breakers
