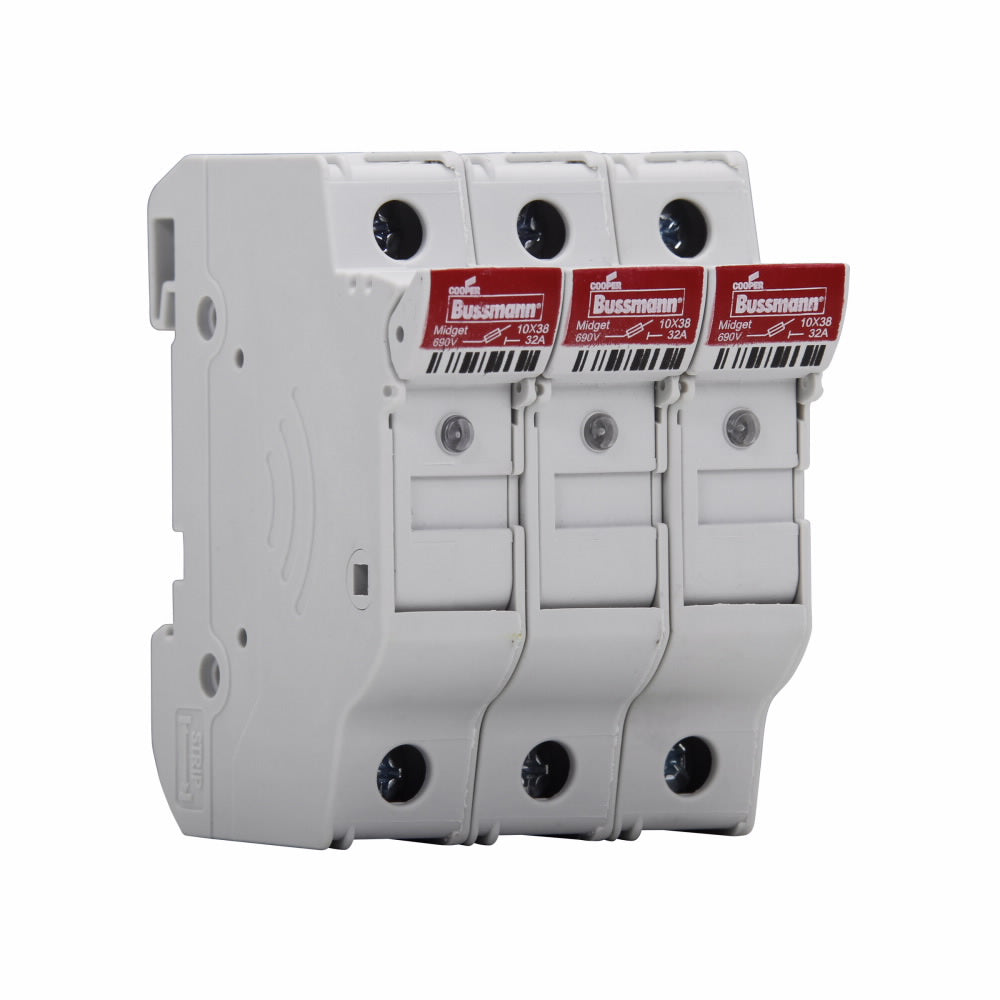

Eaton CHM3DIU BUS 3P 10X38MFH30A 600V Midget - Indicator

Product Description

The Eaton CHM3DIU is a modular fuse holder designed for reliable performance in electrical assemblies. This model is rated for 600/690 volts and can handle an amperage rating of thirty to thirty-two amps. The holder features three poles and is suitable for Midget class fuses, accommodating wire sizes from eighteen to four AWG.

• Modular design for easy installation
• Rated for 600/690 V with a temperature range of -20 to 90 degrees Celsius
• Compatible with a range of fuse types including AGU, C10G, and more

Product Highlights

The CHM3DIU fuse holder is built to meet UL and CSA standards, ensuring safety and reliability in various applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171236278

Technical Specifications

• Amperage Rating: 30/32 A
• Application: Electrical Assemblies, Panels, and OEMs Applications
• Class: Midget
• Dimensions: 2.067 inches W x 3.275 inches D x 2.909 inches H
• Fuse Diameter: 10 mm
• Fuse Length: 38 mm
• Number of Poles: 3
• Series: CH Series
• Voltage Rating: 600/690 V
• Temperature Rating: -20 to 90 degrees Celsius
• Standards/Approvals: CCC Certified, CSA Certified, IEC 60269-2, RoHS Compliant
• Suitable For Use With: AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM Fuse
