Eaton CHM2DIU CHM Modular Fuse Holder 30 A (10 x 38 mm)

EATON
Brand: EATON
SKU: CHM2DIU
Availability: In Stock

Ships same day if ordered by 12 pm
$150.70
$150.70
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

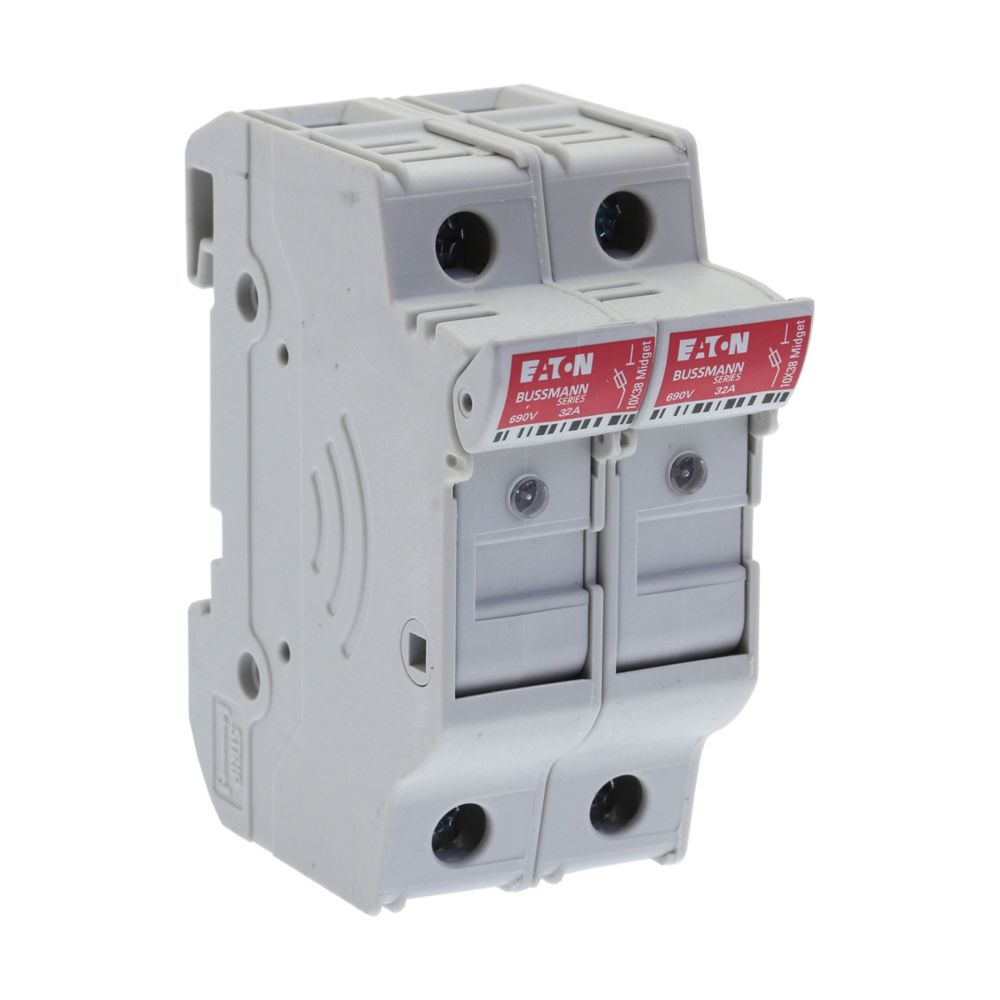

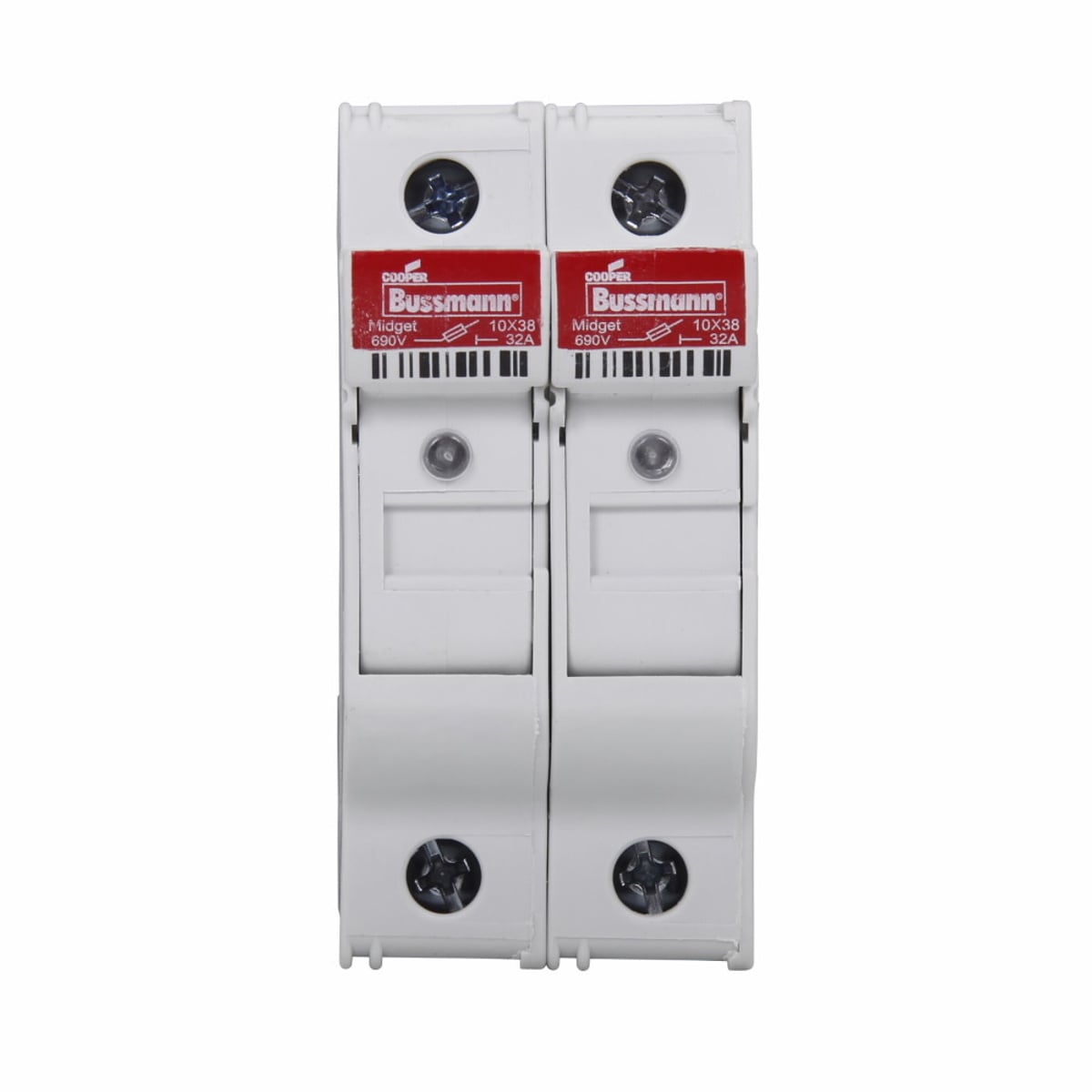

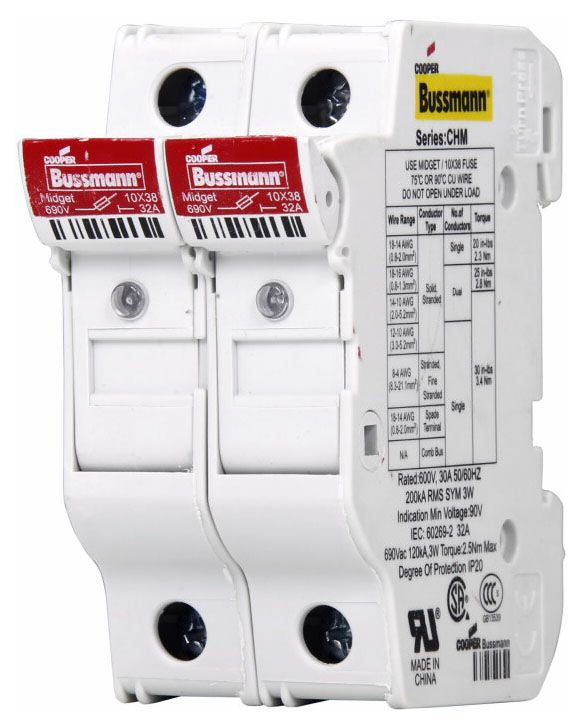

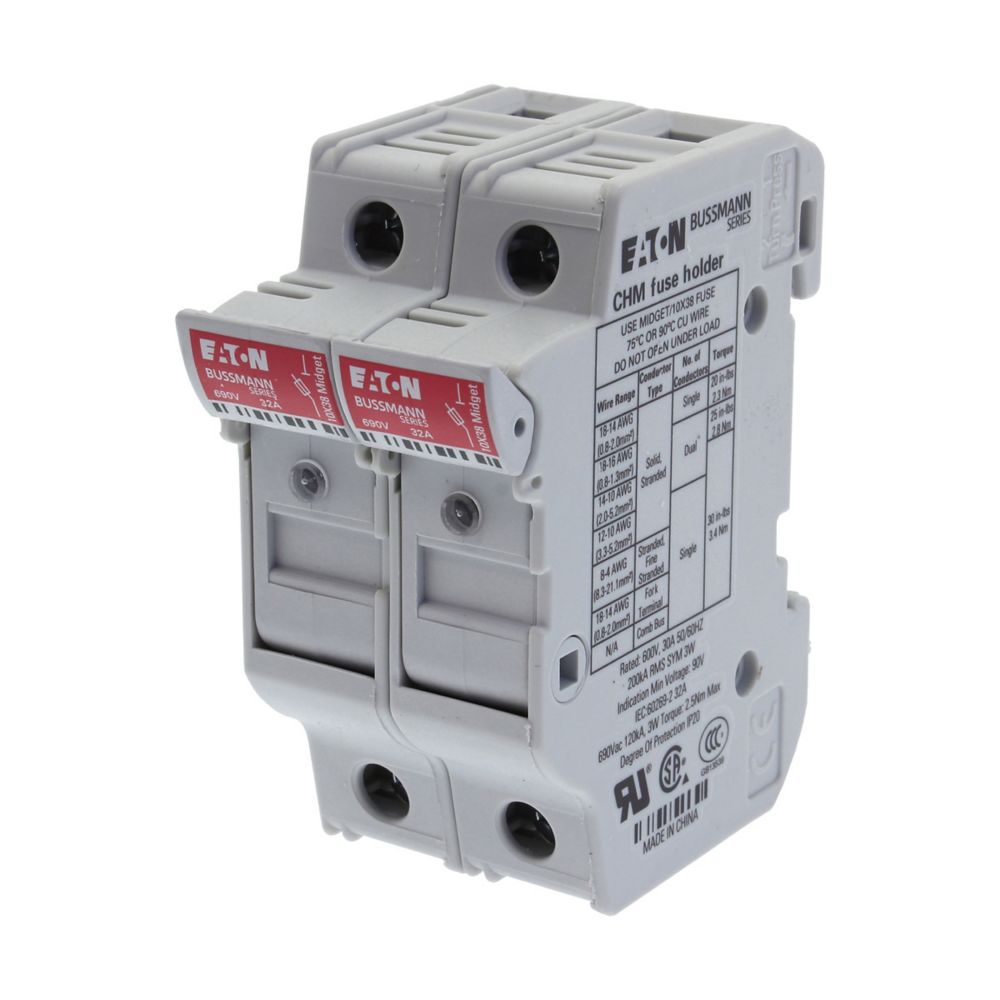

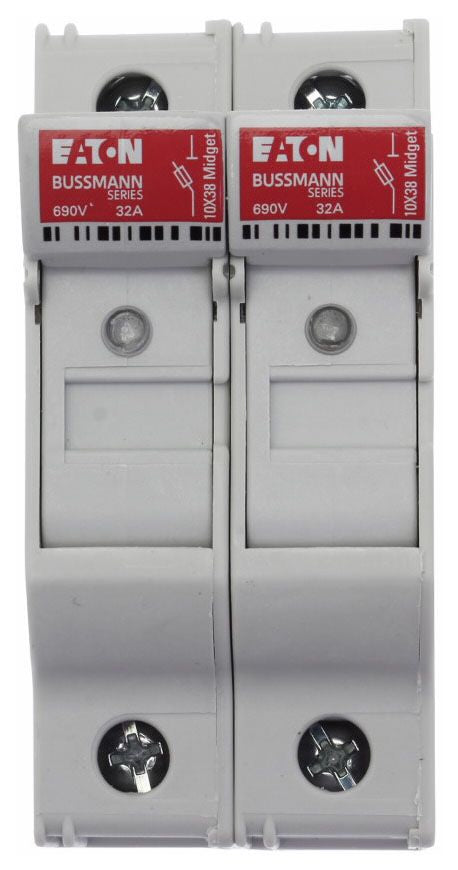

The Eaton CHM2DIU is a two-pole CHM modular fuse holder rated 600 V (UL) / 690 V (IEC) and 30 A (UL) / 32 A (IEC), designed to accept 10 x 38 mm (midget) fuses for overcurrent protection. It features a finger-safe, modular design with visual indication and mounts on a 35 mm DIN rail. The holder supports 18 to 4 AWG conductors and operates in temperatures from -20 to 90 deg C.

  • Voltage and current ratings: 600 V (UL) / 690 V (IEC); 30 A (UL) / 32 A (IEC); two-pole configuration
  • Compatible with 10 x 38 mm (midget) fuses; accepts 18 to 4 AWG line and load wiring; mounts on 35 mm DIN rail
  • Finger-safe modular design with visual indicator; enclosure rating IP20; operating temperature -20 to 90 deg C; multiple safety approvals

Product Highlights

Two-pole modular fuse holder for 10 x 38 mm fuses; 600/690 V and 30/32 A ratings; DIN-rail mount with indicator and IP20 finger-safe construction.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: CHM2DIU
  • Country of Origin: China
Technical Specifications
Manufacturer
Eaton
MPN
CHM2DIU
Series
Bussmann CHM
Type
Modular fuse holder
Number of Poles
2
Voltage Rating
600 V (UL), 690 V (IEC)
Current Rating
30 A (UL), 32 A (IEC)
Fuse Size
10 x 38 mm (midget)
Fuse Type
Midget / 10 x 38 mm
Wire Size
18 to 4 AWG
Mounting Type
35 mm DIN-rail
Indicator
Included (visual)
Enclosure Rating
IP20
Operating Temperature
-20 to 90 deg C
Approvals/Certifications
UL Listed/Recognized; CSA; CCC; IEC 60269-2; RoHS compliant; UL 94-V-0
Compatible Fuses
AGU, C10G, C10M, BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, CHM
Safety Features
Finger safe construction
Country of Origin
China
Weight
0.236 lb (107 g)
Dimensions
3.275 in L x 1.378 in W x 2.909 in H
UPC / EAN
051712362771 / 51712362771
