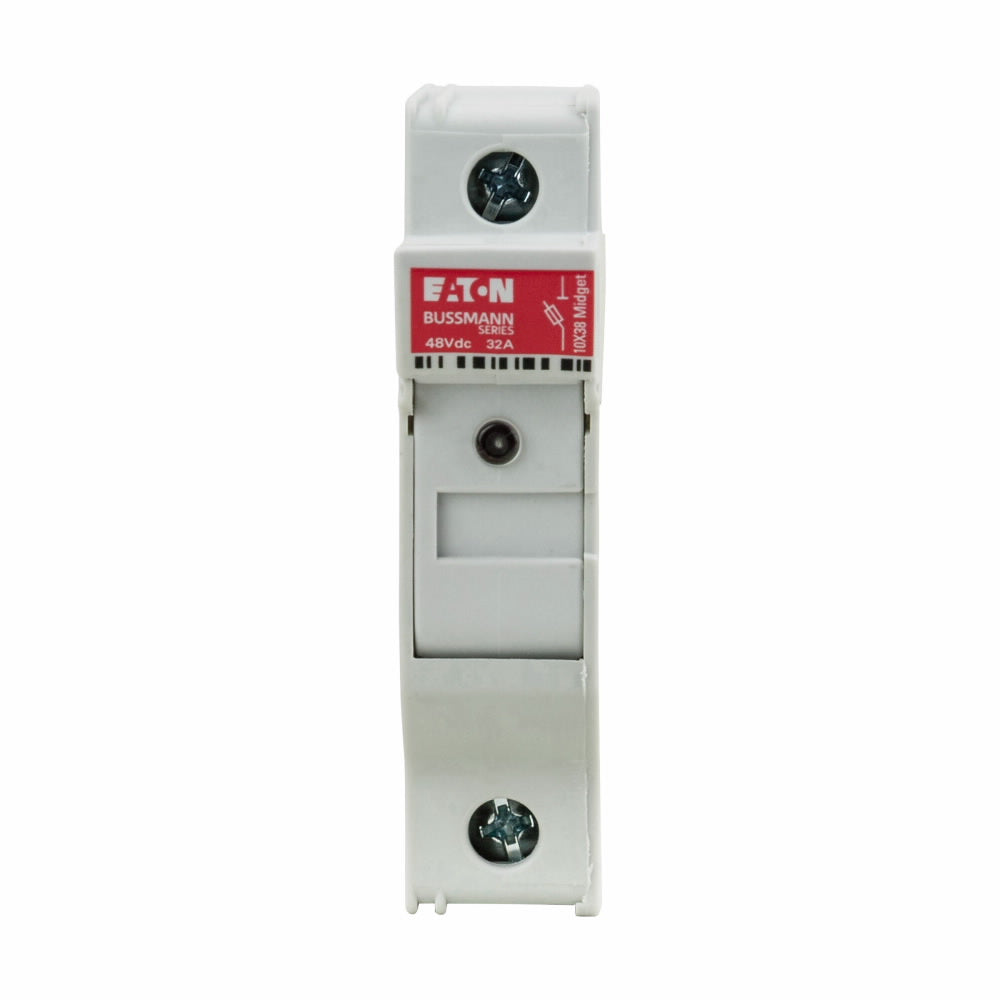

Eaton CHM1DI-48U Bus Fuse Holder 48 VDC 30/32 A Midget

Product Description

The Eaton CHM1DI-48U is a reliable bus fuse holder designed for use in electrical assemblies. This modular unit accommodates fuses in specific dimensions and ratings. It operates at a voltage of forty-eight volts DC, supporting an amperage rating of thirty or thirty-two amps. The product is suitable for wire sizes ranging from eighteen to four AWG.

• Modular design for easy installation and maintenance.
• Compatible with various fuse types including AGU, C10G, and more.
• Rated for temperatures from negative twenty to ninety degrees Celsius.

Product Highlights

This fuse holder is engineered for efficiency and durability, essential for both OEM applications and electrical panels.

Product Information

Standard Information

• Category: Electrical, Fuse Holders
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 30/32 A
• Application: Electrical Assemblies, Panels and OEMs Applications
• Class: Midget
• Dimensions: 0.689 in W x 3.275 in D x 2.909 in H
• Fuse Diameter: 10 mm
• Fuse Length: 38 mm
• Manufacturer Part Number: CHM1DI-48U
• Number of Poles: 1
• Series: CH Series
• Standards/Approvals: CCC Certified, CSA Certified, IEC 60269-2, UL Listed, UL Recognized
• Suitable For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse
• Temperature Rating: -20 to 90 deg C
• Type: Modular
• Voltage Rating: 48 VDC
