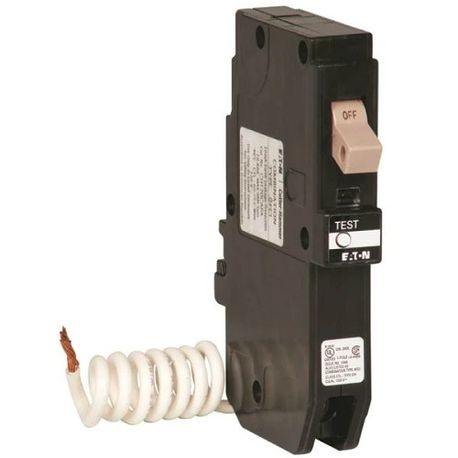

EATON CHFN120GF BREAKER CKT FLT GND 120/240VAC 20A 10KA

Product Description

EATON CHFN120GF is a Type CH Self-Test Ground Fault Circuit Breaker rated for 120/240 VAC and 20 A with a 10 kA interrupt rating. It features a pigtail neutral connection and is suitable for wire sizes from fourteen to six AWG. This breaker can be mounted easily using a plug-on method. The mechanism is designed to trip to the off position, helping to avoid nuisance tripping.

• Self-Test feature enhances reliability.
• Tripping mechanism eliminates nuisance callbacks.
• Compatible with various power distribution applications.

Product Highlights

This ground fault circuit breaker provides premium overload protection for residential applications.

Product Information

Standard Information

• Brand: EATON
• MPN: CHFN120GF

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Connection Type: Pigtail Neutral
• Wire Size: 14 to 6 AWG
• Mounting Type: Plug-On
• Dimensions: 4-1/2 in L x 3/4 in W x 3-1/4 in H
• Standard: UL Listed
