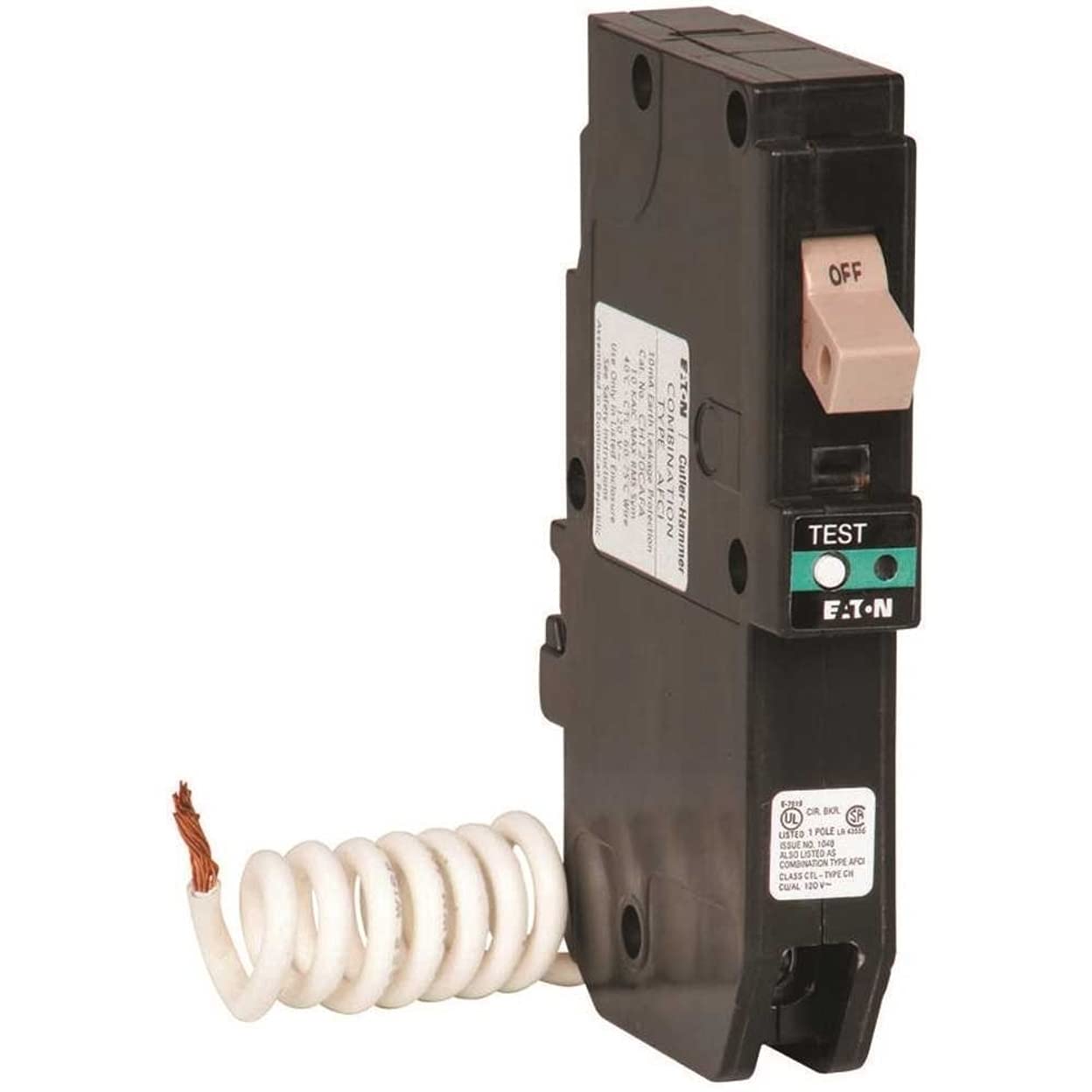

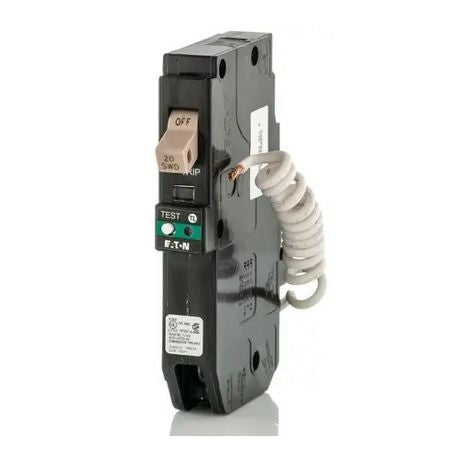

Eaton CHFN120AF Type CH Combination Miniature Arc Fault Circuit Breaker 120/240 VAC 20 A 10 kA Interrupt 1 Pole

Product Description

The Eaton CHFN120AF is a 20 Amp, 120/240 Volt, single pole, combination miniature arc fault circuit breaker. This circuit breaker is designed for use in Type CH loadcenters and provides reliable protection against overloads. The unit features a plug-on mounting style and a pigtail or plug-on neutral connection, ensuring easy installation and compatibility with various systems.

• Rated for 120/240 VAC and 20 A.
• Designed for Type CH loadcenters.
• Includes a 10 kA interrupt rating for effective overload protection.

Product Highlights

This breaker includes a thermal-magnetic trip curve that minimizes nuisance tripping while providing instantaneous reaction to severe short-circuit conditions. The trip flag feature helps users identify the cause of a trip compared to a manual shut off. Multiple breakers can share an internal common trip for simultaneous operation.

Product Information

Standard Information

• Brand: Eaton
• MPN: CHFN120AF

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Connection Type: Pigtail/Plug-On Neutral
• Mounting Type: Plug-On
• Dimensions: Four and one half inches length, three fourths inches width, three and one fourth inches height
• Compliance: UL Listed
