Product Description

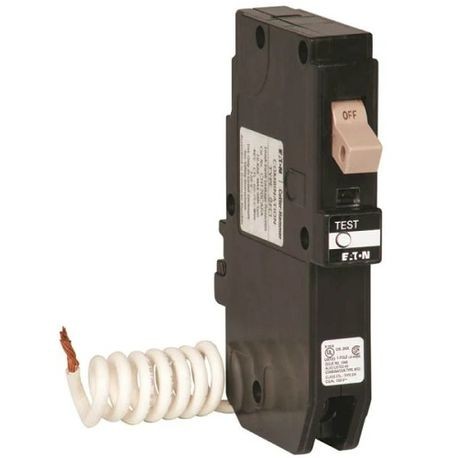

The Eaton CHFN115GF is a ground fault circuit interrupter breaker with a rating of fifteen amps and an interrupt capacity of ten kiloamperes. This product is designed for one pole applications and features a pigtail neutral connection. The dimensions are four and one-half inches long, three-quarters of an inch wide, and three and one-fourth inches high. Eaton's CH series breakers provide enhanced overload protection by tripping to the OFF position to prevent nuisance callbacks.
- Features a trip flag to indicate breaker condition.
- Utilizes thermal-magnetic technology for precise tripping.
- Compatible with CH load centers.
Product Highlights
This breaker is made for residential spaces and is suitable for conventional and renewable energy applications. It is UL listed for safety and reliability.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Model Number: CHFN115GF
Technical Specifications
-
Type: Ground Fault Circuit Interrupter
-
Amperage Rating: 15 A
-
Interrupt Rating: 10 kA
-
Number of Poles: 1
-
Connection Type: Pigtail Neutral
-
Dimensions: 4-1/2 in L x 3/4 in W x 3-1/4 in H
-
Country of Origin: Dominican Republic
-
Standard: UL Listed
