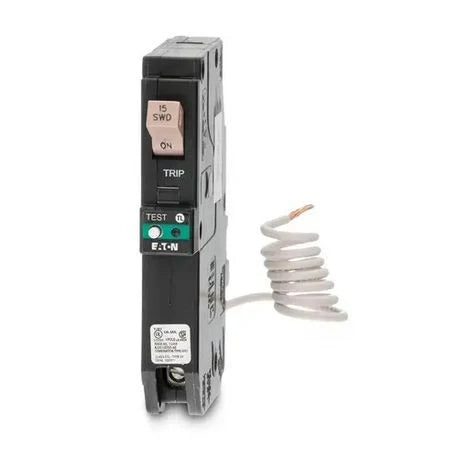

Eaton CHFN115AF CH COMBO AFCI Breaker 15A Pigtail 10 kAIC

Product Description

Eaton CHFN115AF is a combination arc fault circuit interrupter (AFCI) circuit breaker with a rating of 15 amps. This device features a pigtail connection and has an interrupt rating of 10 kAIC. The CH series is designed for residential use in power distribution applications.

• Single pole connection type
• Application for residential and commercial use
• UL Listed for quality assurance

Product Highlights

Designed to provide safety from arc faults, the Eaton CH Combo AFCI circuit breaker protects circuits by detecting and interrupting high energy arcing faults.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: CHFN115AF
• Amperage Rating: 15 A
• Interrupt Rating: 10 kAIC
• Connection Type: Pigtail
• Number of Poles: 1
• Width: 0.75 inches
• Height: 1.2 inches
• Length: 4.5 inches
• Weight: 0.45 lb
• UPC: 786689058814
• GTIN: 00786689058814
• Application: Suitable for conventional and renewable energy applications
