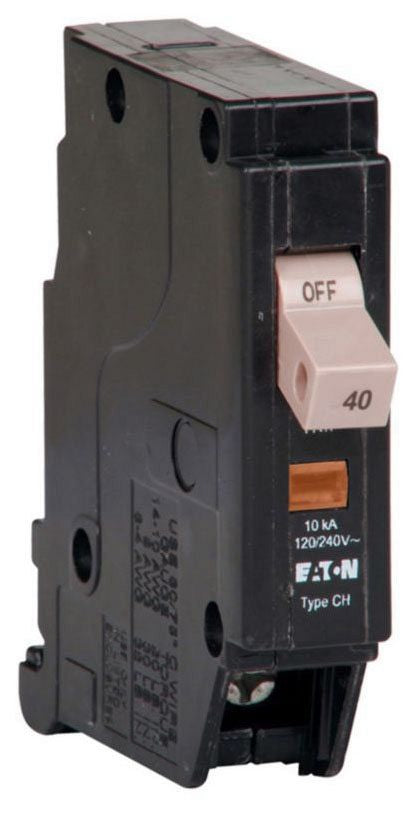

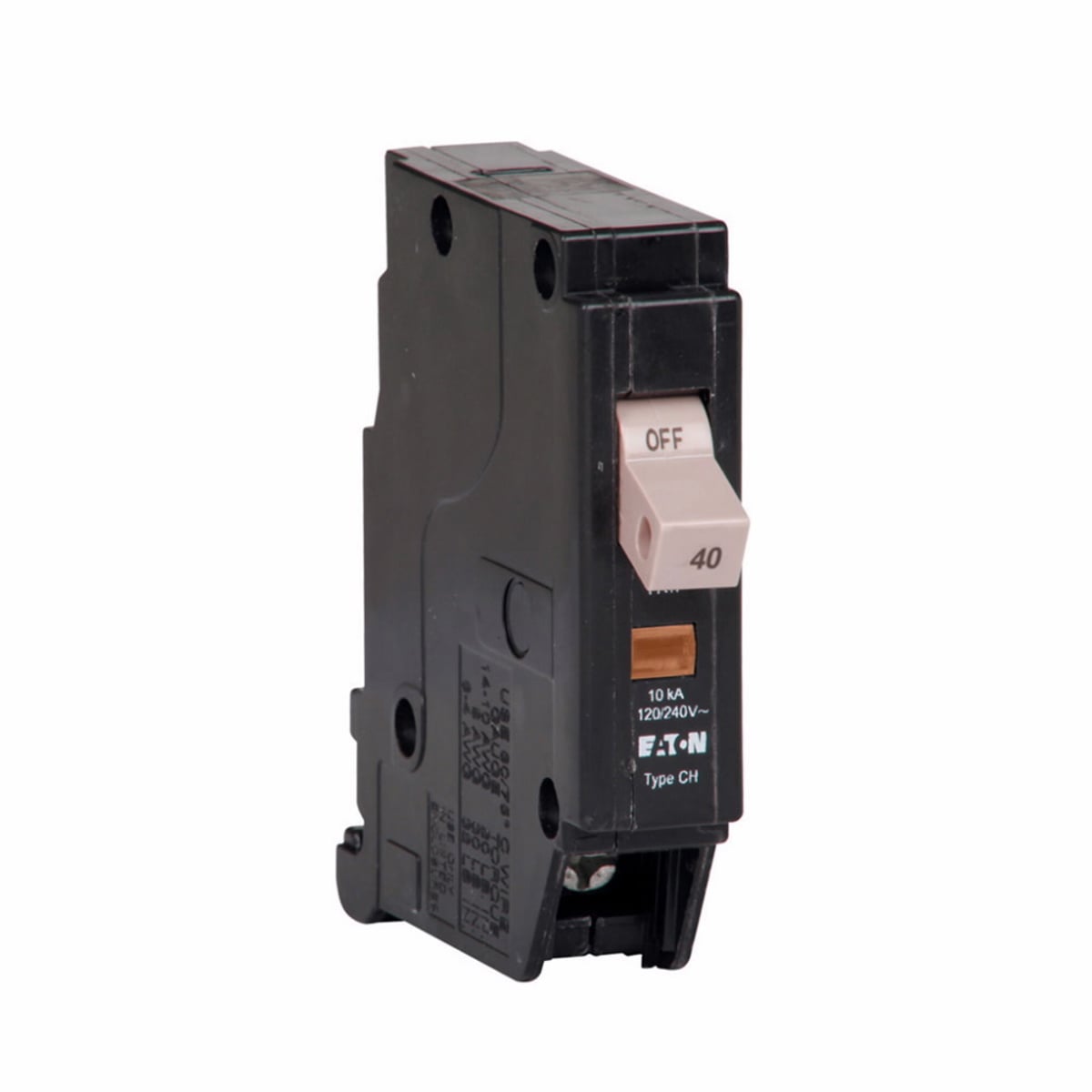

Eaton CHF140 chf breaker 40a 1p

Product Description

The Eaton CHF140 is a thermal magnetic circuit breaker, designed as a Type CHF 3/4-Inch standard circuit breaker. It features a 40 Amp, single-pole configuration, operating at 120/240V with a 10 kAIC interrupt rating. This breaker includes a trip flag for common breaker trip indication and is compatible with #14-2 AWG Cu/Al wire. It is suitable for use in Type CH Loadcenters, providing essential circuit protection.

• Features a thermal magnetic trip mechanism for reliable protection.
• Designed for 120/240V systems with a 10 kAIC interrupt rating.
• Compatible with #14-2 AWG copper or aluminum wire.

Product Highlights

Provides premium overload protection with a trip flag indicator and common breaker trip functionality.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHF140
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Eaton
• Catalog Number: CHF140
• Circuit Breaker Type: Type CHF 3/4-Inch Standard
• Amperage Rating: 40A
• Voltage Rating: 120/240V
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Trip Type: Trip Flag
• Wire Size: 14-2 AWG Cu/Al
• Application: Type CH Loadcenters
• Certifications: UL 489, CSA C22.2, HACR Rated
• Item Type: Thermal Magnetic Circuit Breaker
• Mounting Type: Plug-In
• Phase: 1
• Operating Temperature: 60 to 75 deg C
• Frame Type: CH
• Terminal Type: Plug-On
• Series: CHF
• UNSPSC: 39121603
• UPC: 786685532134
• Terminal Type Load Side: Lugs
