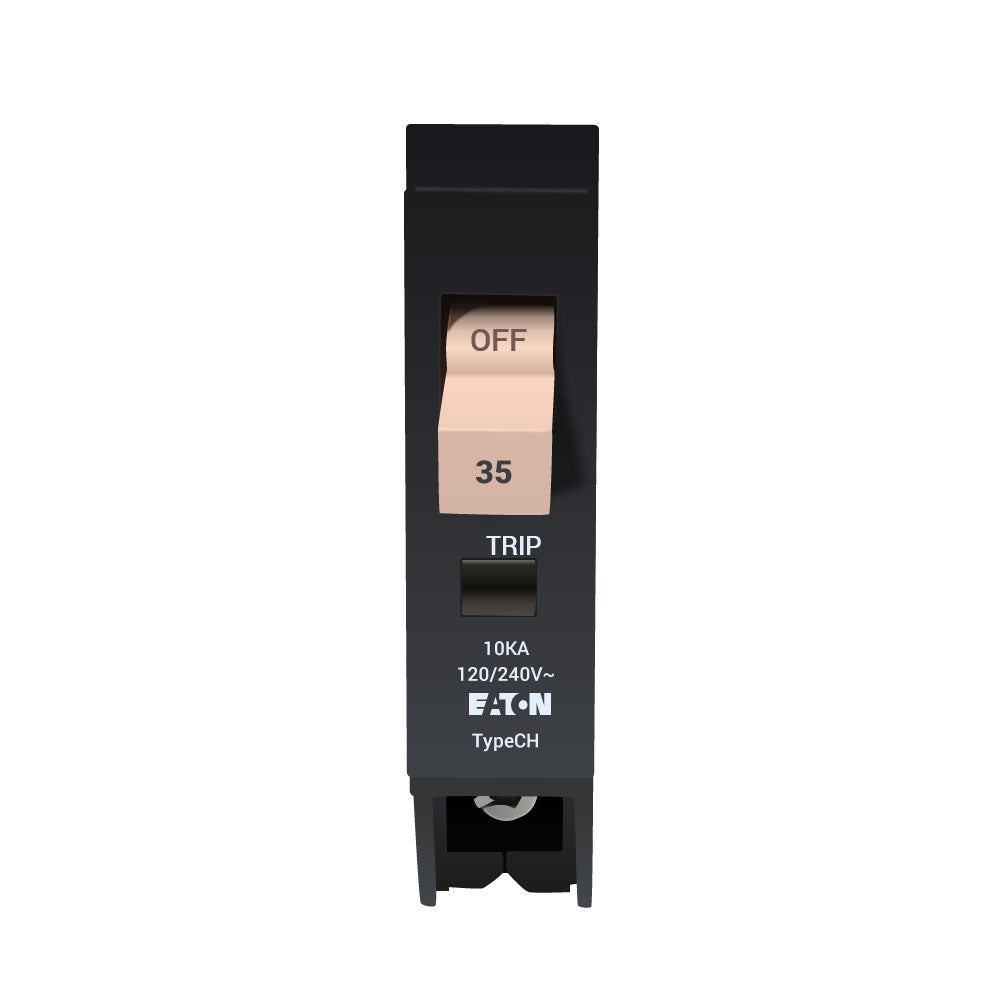

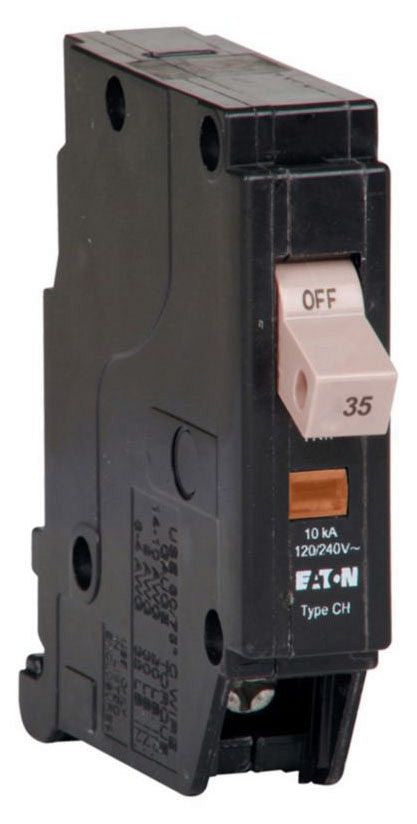

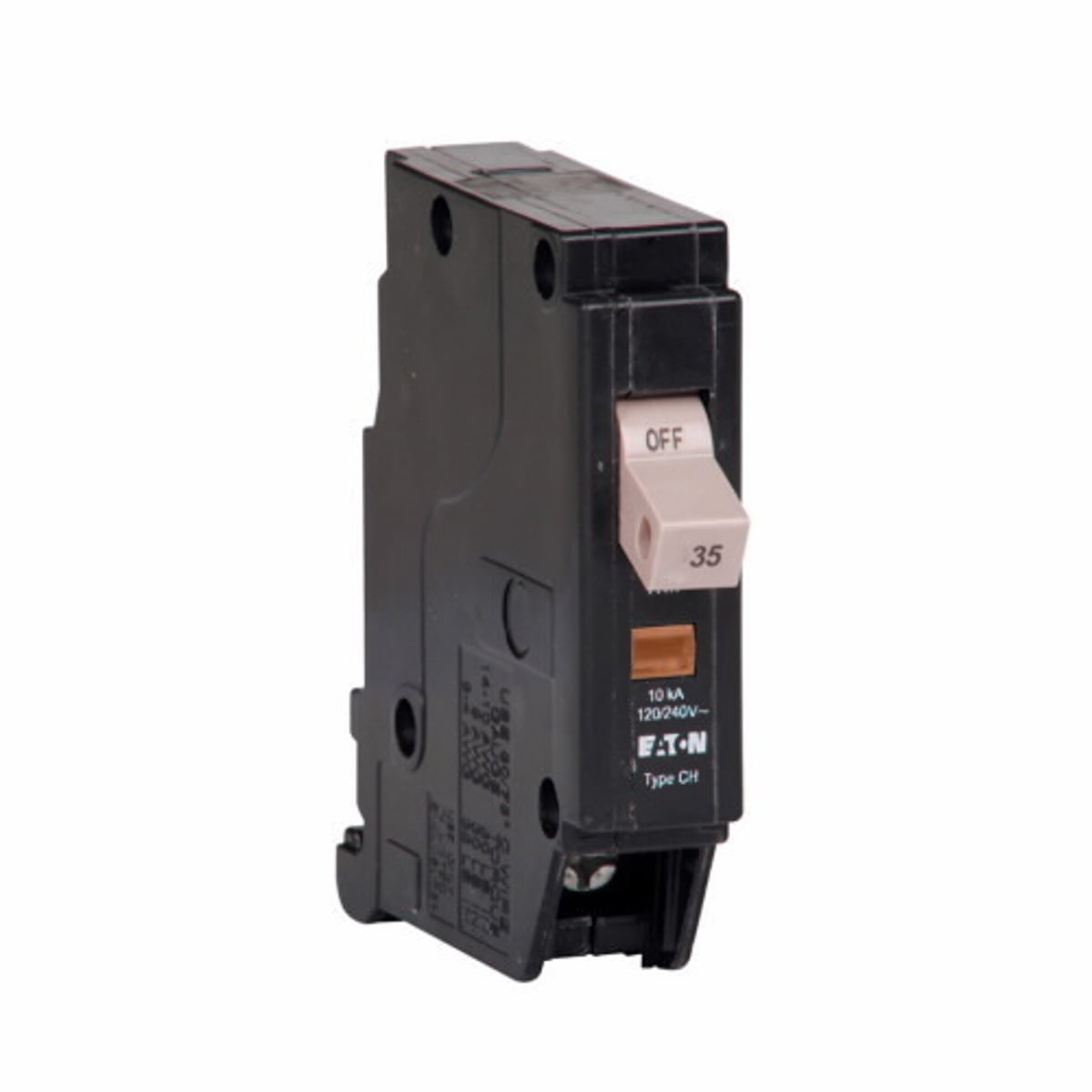

Eaton CHF135 CHF Breaker 35A 1P 3/4-Inch

Product Description

The EATON CHF135 is a CH thermal magnetic circuit breaker, designed as a Type CHF 3/4-Inch standard circuit breaker. It features a 35 Amp, single-pole configuration with a 10 kAIC interrupt rating, operating at 120/240 Volt. This breaker includes a mechanical trip flag and common breaker trip functionality, suitable for Type CH Loadcenters. It accommodates wire sizes of (1) #14-8 AWG and (2) #14-10 AWG Copper/Aluminum.

• Provides premium overload protection for residential CH circuit breaker applications.
• Trips to the OFF position, designed to eliminate nuisance callbacks.
• Includes a trip flag to visibly differentiate between a trip and the breaker being turned off.

Product Highlights

Features a thermal-magnetic trip curve for overload and short-circuit protection, with a trip flag for visible status indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHF135
• Country of Origin: Dominican Republic

Technical Specifications

• Breaker Type: Type CHF 3/4-Inch Standard Circuit Breaker
• Brand: Eaton
• Input Voltage: 120/240 Volt
• Amperage: 35 Amp
• Trip Type: Mechanical Trip Flag
• Wire Size: (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Standards: UL 489|CSA C22.2 #5|HACR Rated
• Product Type: Thermal magnetic circuit breakers
• Application: Other|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Generation - Renewable Energy - Alternative Energy|Datacenters - IT Space: CI and Hyper Converged|Generation - Conventional Energy - Conventional Energy
• Actuator Type: Toggle Handle
• Connection Type: Box Lug
• Mounting Type: Plug-On
• Phase: 1 ph
• Operating Temperature: 60 to 75 deg C
• Compatible With: Type CH Loadcenters
• Series: CH Series
• Category: Molded Case / 1-Pole
• Functions: LI - Long-Time and Instantaneous
• Protection Type: Thermal Magnetic
