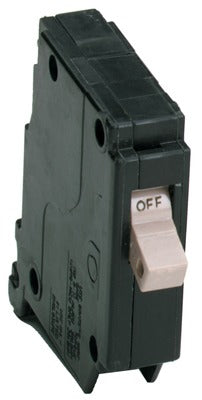

Eaton CHF120CS Single Pole Circuit Breaker 20A

Product Description

The EATON CORPORATION CHF120CS is a 20-amp single-pole circuit breaker designed for residential and light commercial electrical panelboards. Rated at 20 amps, it provides overcurrent protection for branch circuits and features a built-in trip flag indicator that gives a clear visual signal when the breaker has tripped. The 3/4-inch-per-pole width fits standard load centers and panelboards that accept this form factor. Licensed electricians install this breaker as part of new construction wiring or as a direct replacement in existing panels.

This breaker suits residential branch circuit applications including kitchen, bathroom, laundry, and general-purpose circuits requiring 20-amp protection. It is packaged in a clamshell retail pack and sold in a package quantity of six units, making it practical for multi-circuit installations or service work requiring several breakers of the same rating. The trip flag indicator allows quick visual identification of a tripped breaker without a meter, speeding up troubleshooting on a loaded panel.

Key Features

• 20-amp single-pole overcurrent protection for branch circuits
• Built-in trip flag indicator for fast visual fault identification
• 3/4-inch-per-pole width fits standard residential and light commercial panelboards
• Clamshell packaging protects the breaker during transport and storage
• Sold in a package quantity of six units

Compatibility

Designed as an OEM-style replacement single-pole circuit breaker for residential and light commercial panelboards accepting 3/4-inch-per-pole breakers of this form factor.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main breaker and verify the panel is de-energized before installing or removing any circuit breaker. Confirm the panelboard is rated to accept this breaker style before installation. Do not install a breaker of a higher amperage rating than the wire gauge of the circuit it protects.

Technical Specifications

• Amperage Rating: 20 amps
• Pole Configuration: Single pole
• Width Per Pole: 3/4 inches
• Trip Indicator: Trip flag included
• Package Quantity: 6 units
• Weight: 2.1 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CHF120CS
