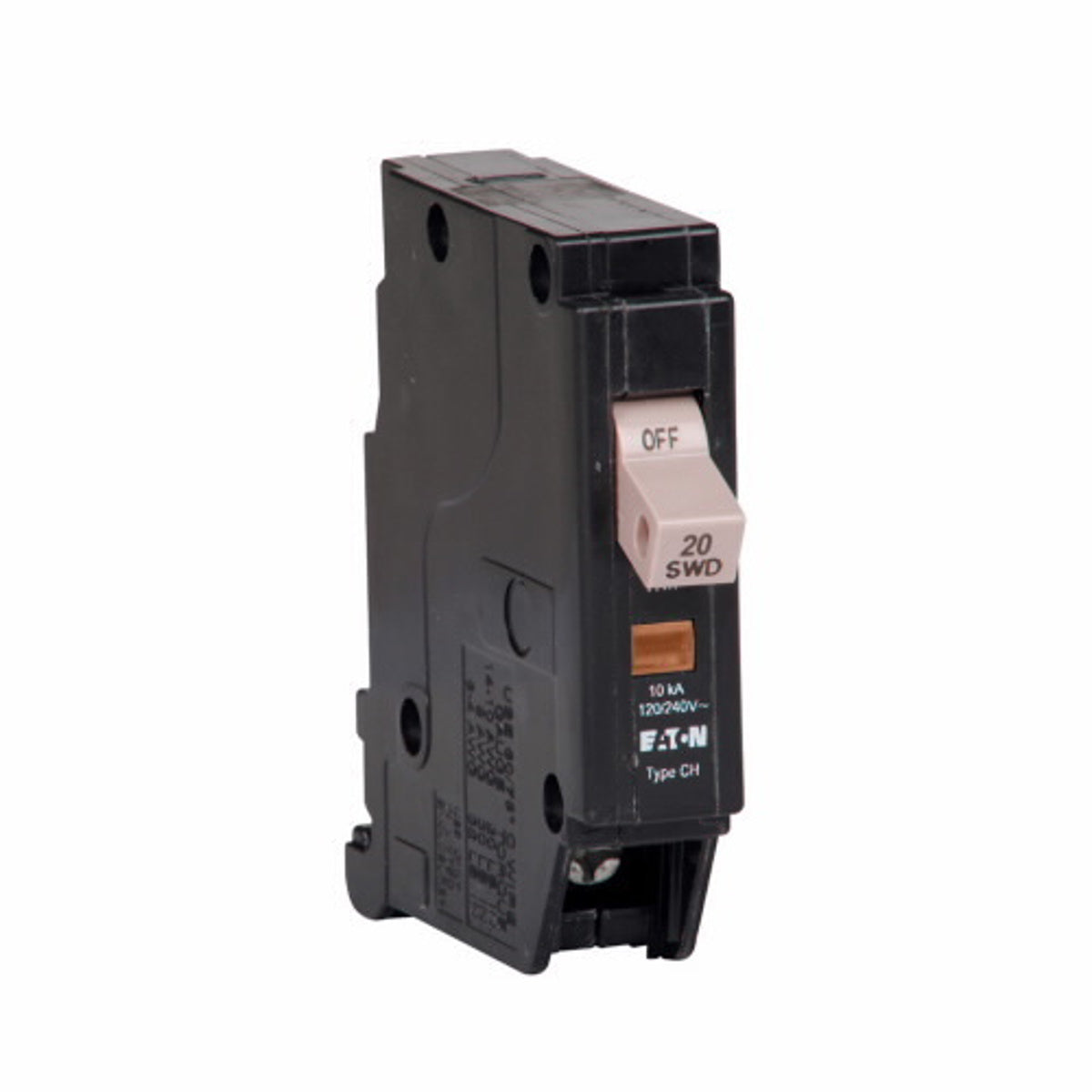

Eaton CHF120CS CHF breaker, 20A Single-Pole Standard Trip Circuit Breaker

Product Description

The Eaton CHF 20A Single-Pole Standard Trip Circuit Breaker, MPN CHF120CS, is designed for residential use. This thermal-magnetic circuit breaker provides reliable overload protection. It is easy to install and operates effectively in various applications, ensuring safety in electrical systems.

• Rated for 20 Amperes.
• Compatible with 120/240 Volt electrical systems.
• Features a trip flag for quick diagnosis.

Product Highlights

This breaker includes an internal common trip connection, allowing simultaneous operation of multiple poles. The clear ON-OFF indication makes it easy to understand the breaker status.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: CHF120CS
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: Mechanical/Flag
• Wire Size: (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
• Dimensions: 7-1/4 in L x 4-1/2 in W x 6-1/2 in H
