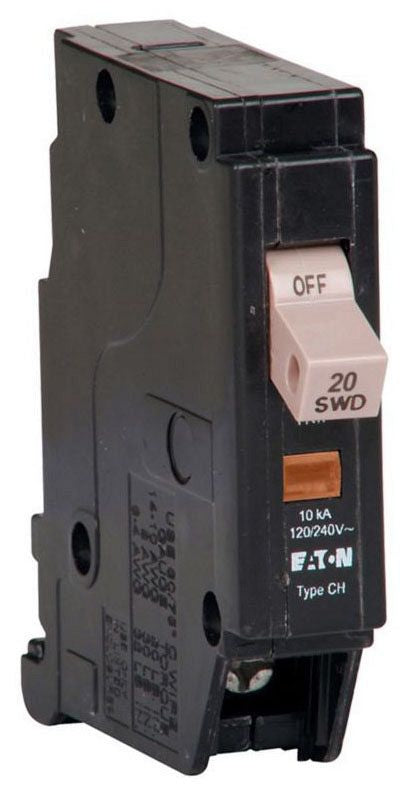

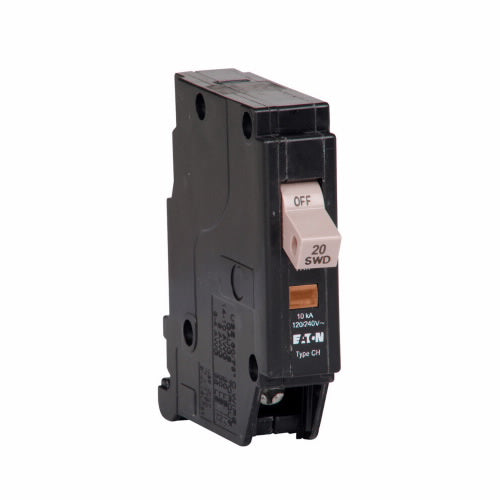

EATON CHF120 Type CHF Standard Arc-Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Mechanical Trip

Product Description

The EATON CHF120 is a Type CH circuit breaker designed for 120/240 VAC systems. This single-pole breaker has a 20 Amp rating and provides overload protection with a ten kA interrupt rating. The unit is designed for easy installation and features a mechanical trip function to safeguard against electrical overloads.

• Voltage rating: 120/240 VAC
• Amperage rating: 20 A
• Number of poles: 1

Product Highlights

The CHF120 is suitable for use in residential applications, commercial electrical panels, and industrial equipment, ensuring reliable and efficient circuit protection.

Product Information

Standard Information

• Brand: EATON
• Catalog Number: CHF120

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Temperature Rating: 60 to 75 deg C
• Wire Size: (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
• Mounting Type: Plug-On
• Dimensions: 3 inches L x 3/4 inches W x 3 inches H
• Standards: UL 489, HACR Rated
