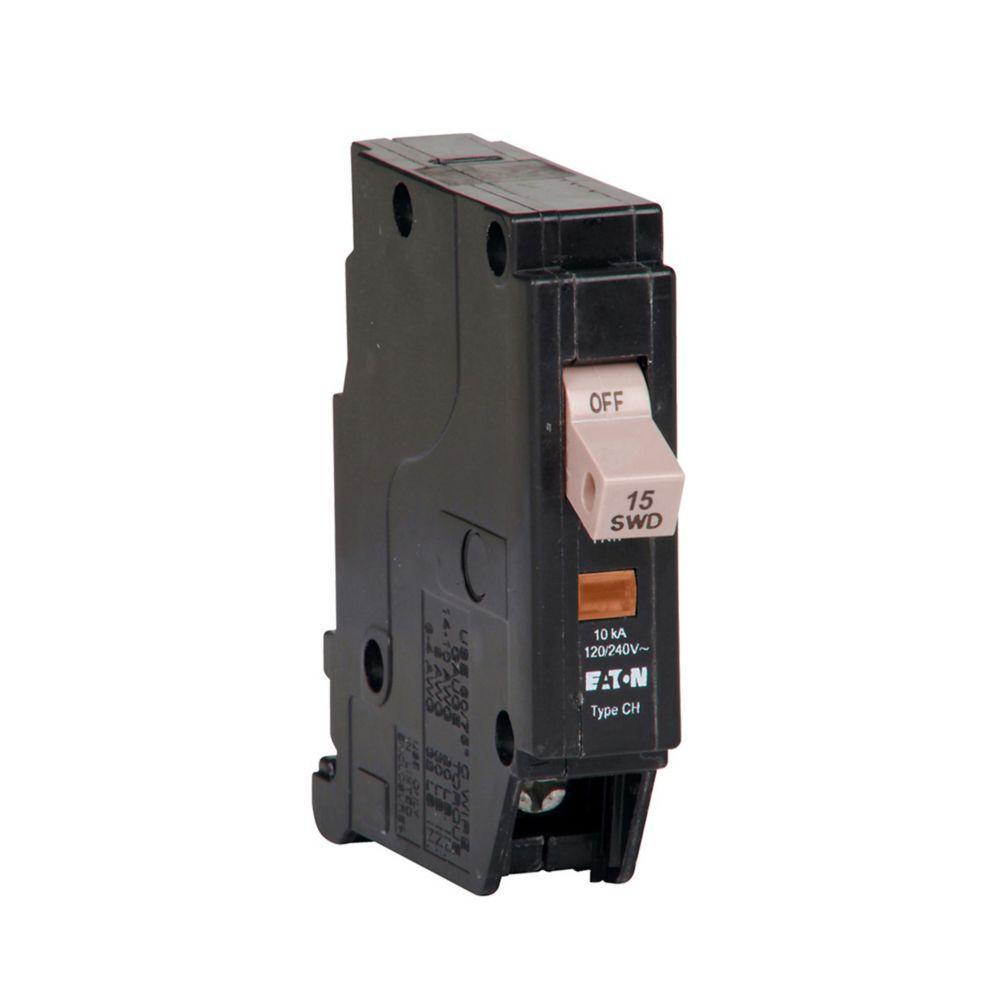

Eaton CHF115CS Eaton CHF 15A Single-Pole Standard Trip Circuit Breaker

Product Description

The Eaton CHF115CS is a fifteen amp single-pole standard trip circuit breaker designed to provide reliable overload protection in residential electrical systems. The thermal-magnetic trip curve prevents nuisance tripping while ensuring a quick response to severe overloads. It is suitable for use in various applications ranging from conventional energy generation to marine vessels.

• Thermal-magnetic operation for effective overload protection
• Trip flag indicator differentiates tripped state from manual shut-off
• Compatible with wire sizes from fourteen to eight AWG

Product Highlights

The Eaton CHF115CS circuit breaker features a compact design with a common trip connection across multiple breakers, facilitating simultaneous operation.

Product Information

Standard Information

• Catalog Number: CHF115CS
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 deg C
• Wire Size Compatibility: 14 to 8 AWG, 14 to 10 AWG
• Country of Origin: Dominican Republic
