Product Description

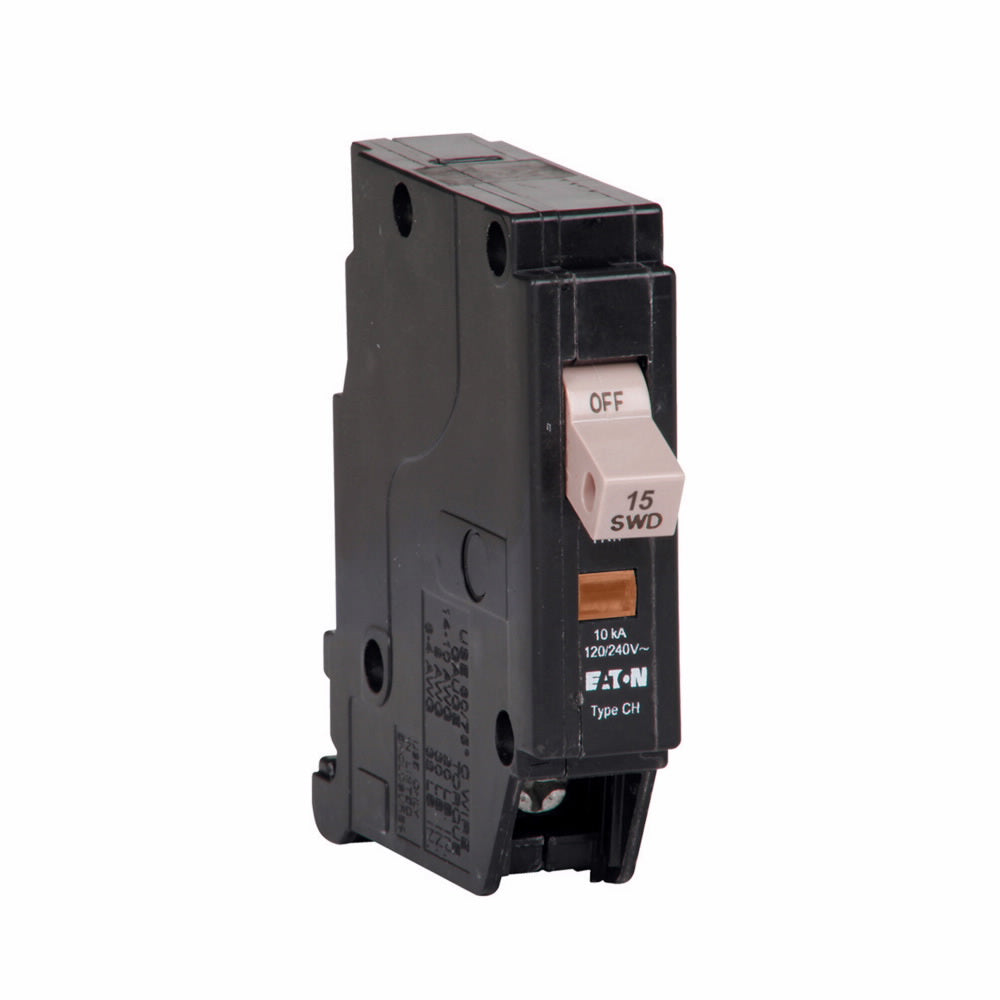

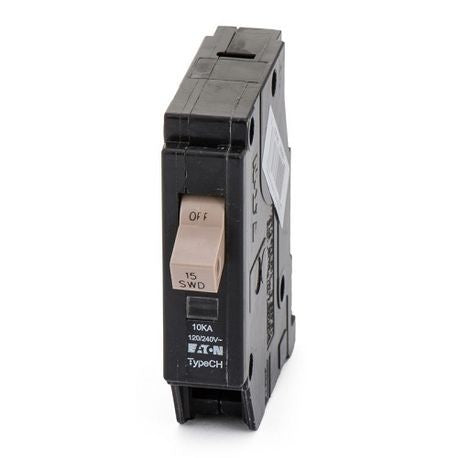

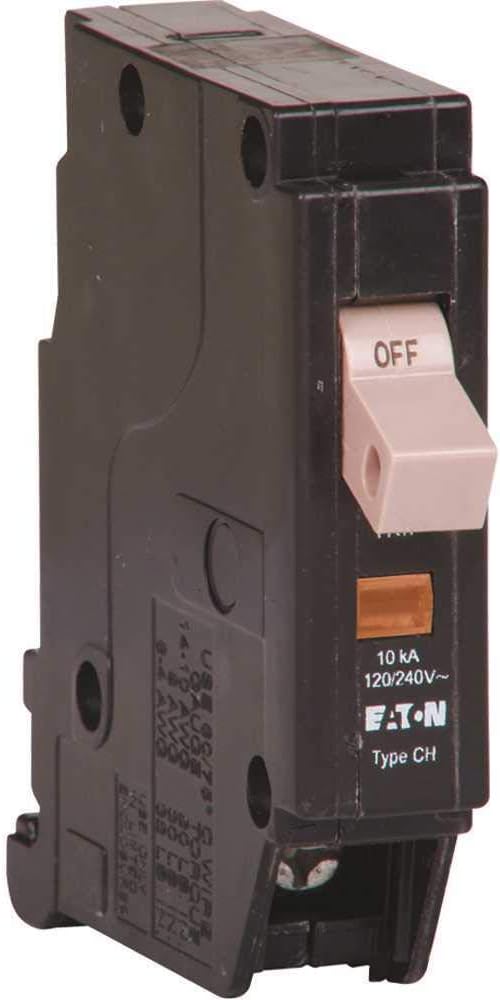

The Eaton CHF115 is a reliable circuit breaker designed for residential and light commercial applications. It is a single-pole thermal magnetic circuit breaker rated for 15 amps and 120/240 volts. The CHF115 provides protection with a trip flag to indicate the status of the breaker clearly.
- Rated for 15 amps and 120/240 volts
- Includes trip flag for easy status identification
- Designed for Type CH load centers
Product Highlights
This circuit breaker effectively prevents overloads and short circuits while being easy to reset. It meets UL 489 standards and is HACR rated.
Product Information
Standard Information
Technical Specifications
-
Voltage Rating: 120/240 V
-
Current Rating: 15 A
-
Number of Poles: 1
-
Interrupt Rating: 10 kAIC
-
Application: Circuit Protection, Type CH Load Centers
-
Wire Size: (1) 14-8 AWG, (2) 14-10 AWG Cu/Al
-
Temperature Rating: 60 to 75 °C
-
Dimensions: 3 in L x 3/4 in W x 3 in H
