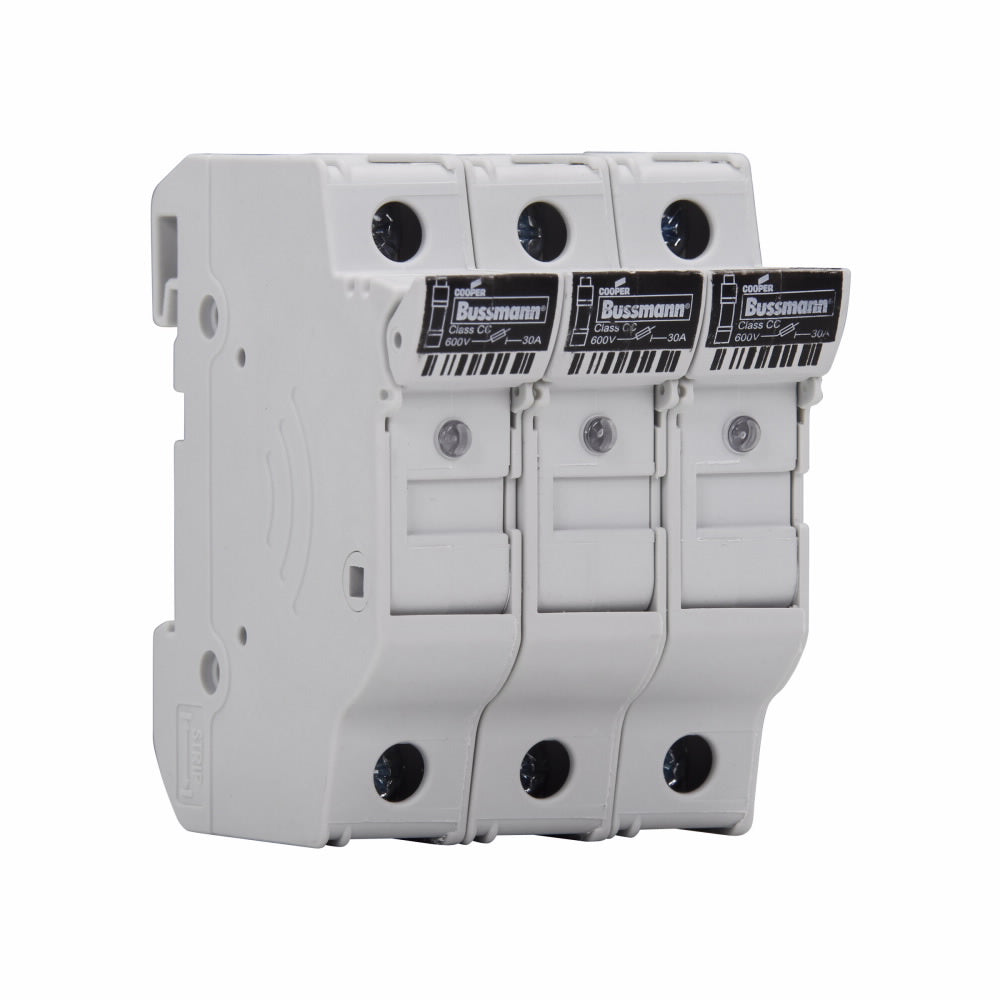

Eaton CHCC3DIU Bus 3-Pole 30A 600V MFH For 10X38 Midget Fuse Class CC-Indicator

Product Description

Bussmann Fuse Holder, brand Eaton, model CHCC3DIU, is designed for use with 10x38 midget fuses. This modular fuse holder supports 3 poles and operates at 30 amps with a voltage rating of 48 VDC. It provides a reliable finger-safe solution for various electrical applications.

• Meets UL Class CC standards
• Compatible with KTK-R, LP-CC, and FNQ-R Series CC Fuses
• Mountable on DIN rail for easy installation

Product Highlights

Features a LED indicator for improved visibility. Incorporates a tool-less ganging option for quick assembly of multiple poles.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: CHCC3DIU BUS 3-POLE 30A 600V MFH

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 48 VDC
• Temperature Rating: -20 to 90 degrees C
• Fuse Length: 38 mm
• Fuse Diameter: 10 mm
• Connection Type: Spade Lug
• Dimensions: 2.067 inches W x 3.275 inches D x 2.909 inches H
• Material: Polyester
• Mounting Type: DIN Rail
• Number of Poles: 3
• Standards/Approvals: CCC Certified, CSA 47235, RoHS Compliant, UL File No. E14853
