Eaton CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED

Product Description

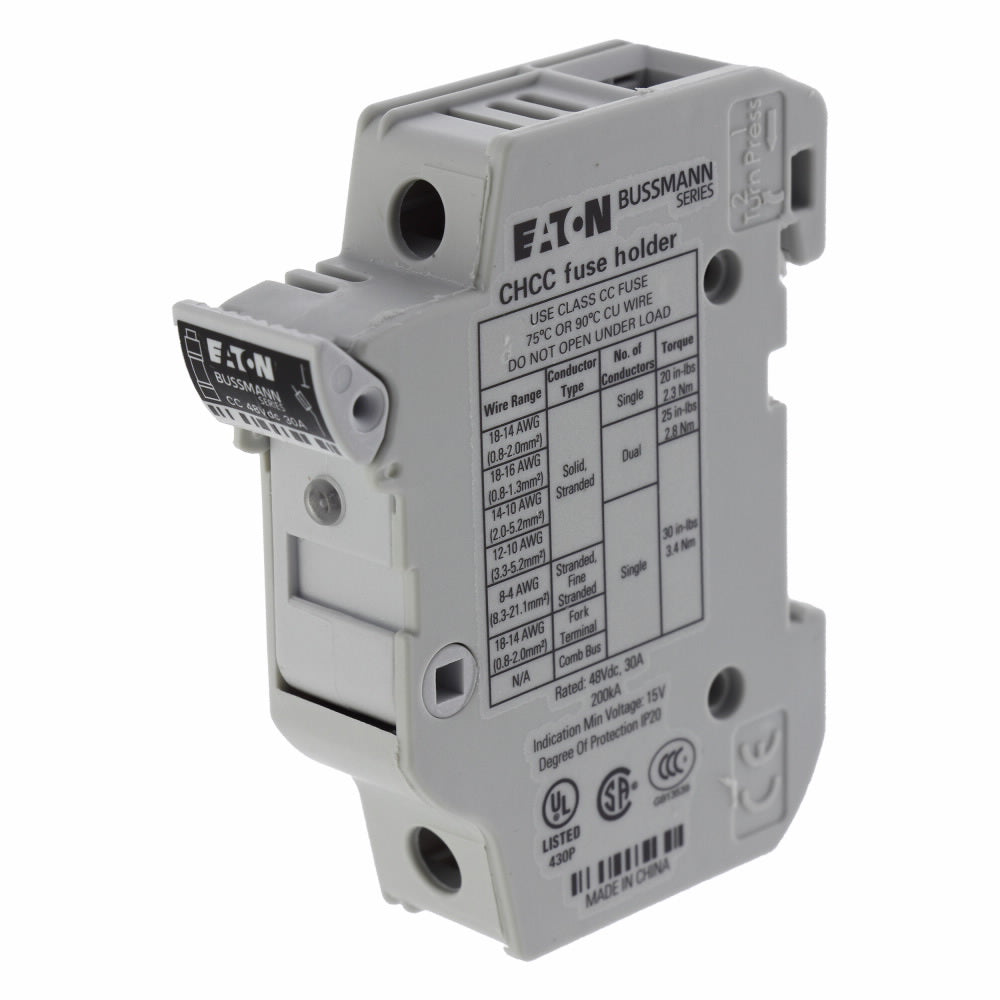

The Eaton CHCC1DI-48U is a modular fuse holder designed for use with Class CC fuses. Rated for thirty amperes and capable of handling up to forty-eight volts direct current, this holder supports wire sizes from eighteen to four AWG. The device measures six hundred eighty-nine thousandths of an inch in width, three hundred twenty-seven thousandths of an inch in depth, and two hundred ninety-nine thousandths of an inch in height.

• High SCCR rated for 600 VAC/VDC and 48 VDC applications.
• Compatible with KTK-R, LP-CC and FNQ-R fuses.
• Temperature range from negative twenty to positive one hundred twenty degrees Celsius.

Product Highlights

This fuse holder features an LED indicator to show operational status and is suitable for electrical assemblies, panels, and original equipment manufacturer applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171236281

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 48 VDC
• Number of Poles: 1
• Temperature Rating: -20 to 120 deg C
• Dimensions: 0.689 in W x 3.275 in D x 2.909 in H
• Fuse Diameter: 10 mm
• Fuse Length: 38 mm
• Compatible Fuses: KTK-R, LP-CC and FNQ-R
