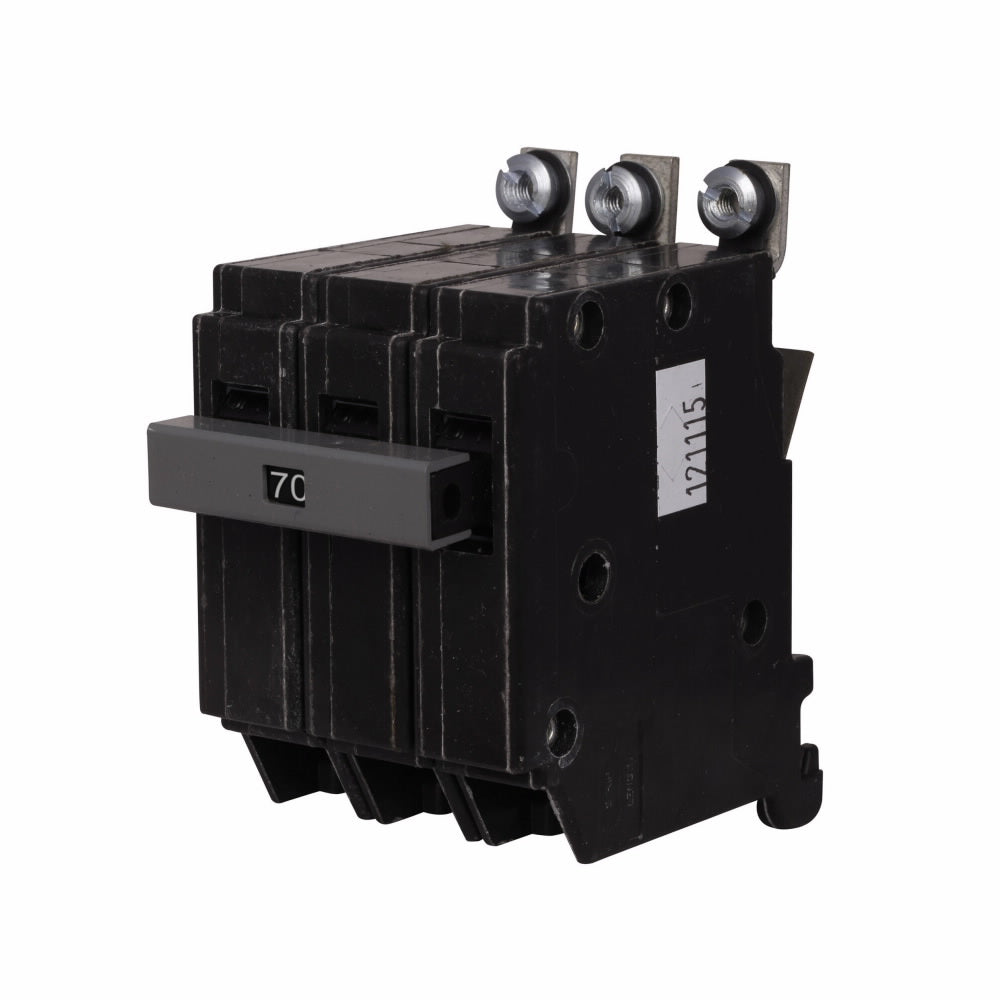

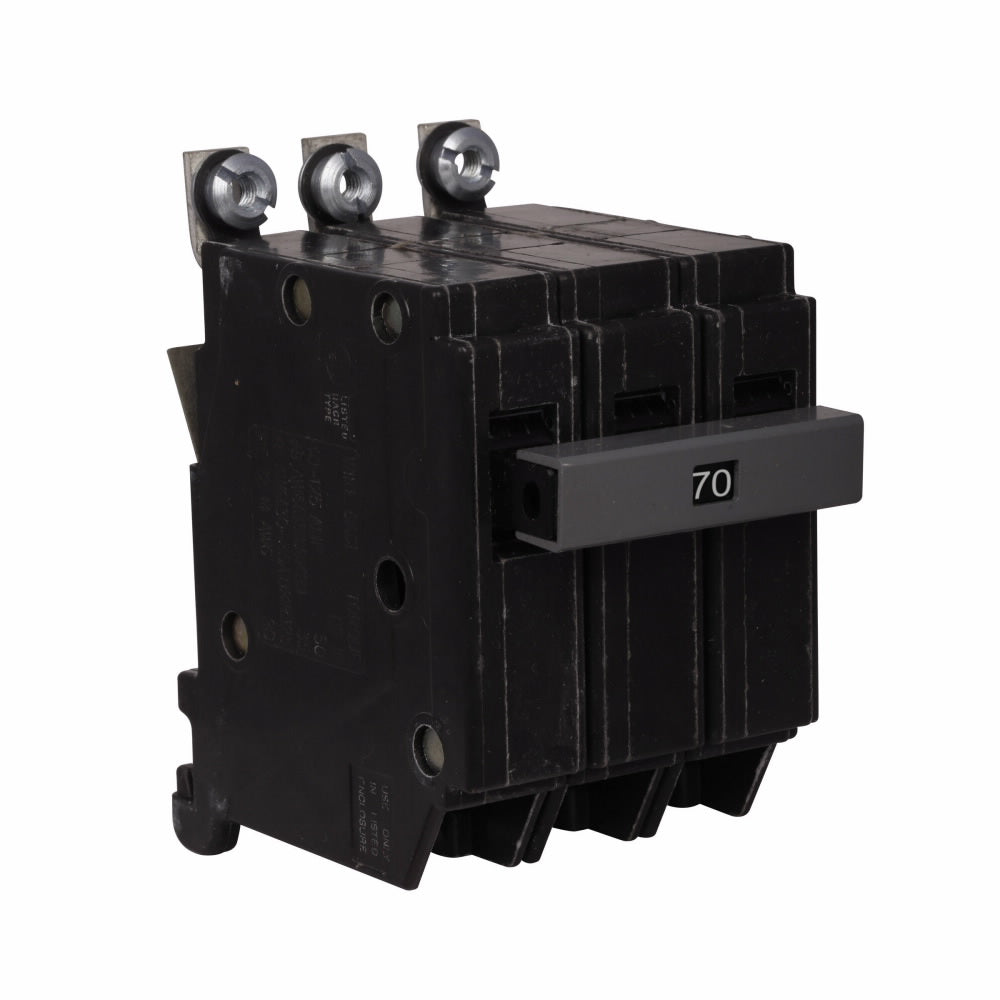

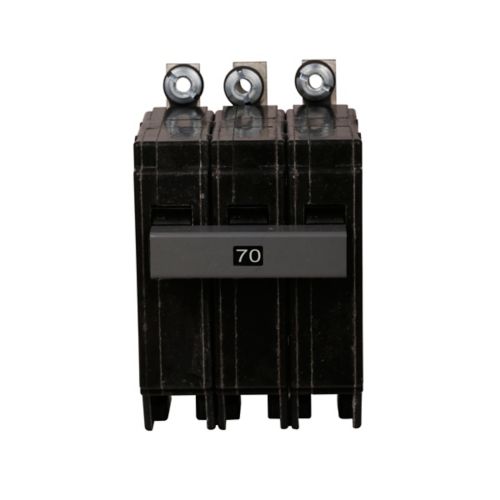

Eaton CHB370 CH thermal magnetic circuit breaker 70 A

Product Description

The Eaton CHB370 thermal magnetic circuit breaker is designed for use with CH Loadcenters. This three-pole circuit breaker has a 70A amperage rating and a 240V voltage rating. It features a 10 kAIC interrupt rating and accommodates wire sizes from #14-8 AWG. It is UL 489 certified and suitable for industrial Pb Panelboards applications.

• Designed for use with CH Loadcenters
• Interrupt rating of 10 kAIC
• Accommodates wire sizes from #14-8 AWG

Product Highlights

The Eaton CHB370 is a three-pole, 70A circuit breaker with a 240V voltage rating, suitable for industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB370
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton CH thermal magnetic circuit breaker
• Catalog Number: CHB370
• UPC: 782113112657
• Product Length/Depth: 3.8 in
• Product Height: 3.3 in
• Product Width: 2.3 in
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters
• Amperage Rating: 70 A
• Voltage rating: 240 V
• Circuit breaker type: CHB
• Interrupt rating: 10 kAIC
• Wire size: #14-8 AWG
• Number of poles: Three-pole
• Type: Circuit breaker
• Manufacturer: Cutler-Hammer / Westinghouse
• Frame Type: CHB
• Poles: 3
• Amps: 70A
• Mounting: Bolt-On Mounting Type
• Manufacturer Series: CHB
• Condition: New
• Mounting Type: Bolt-On
