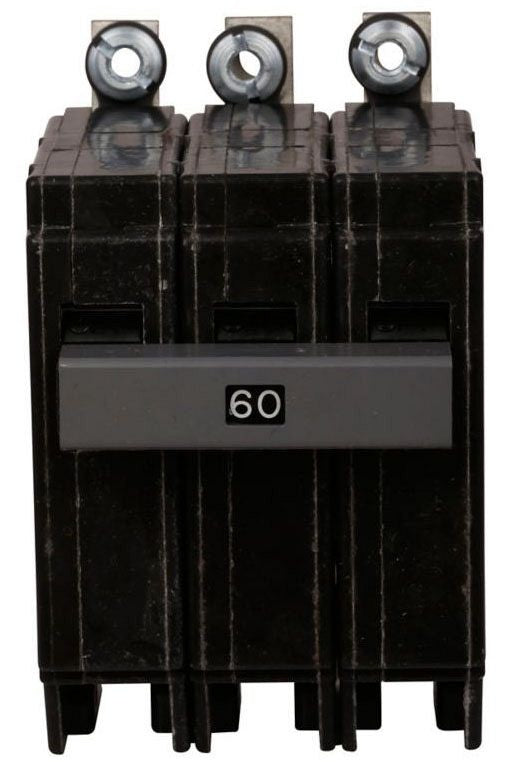

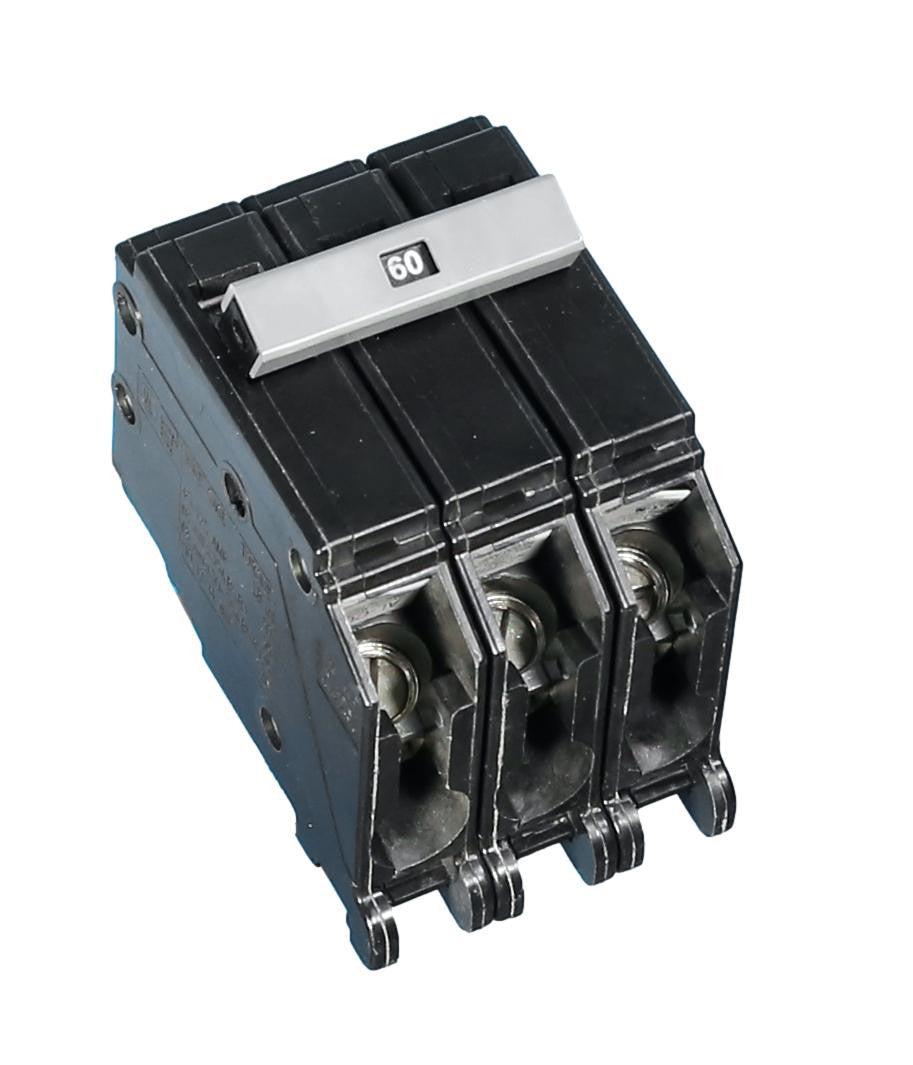

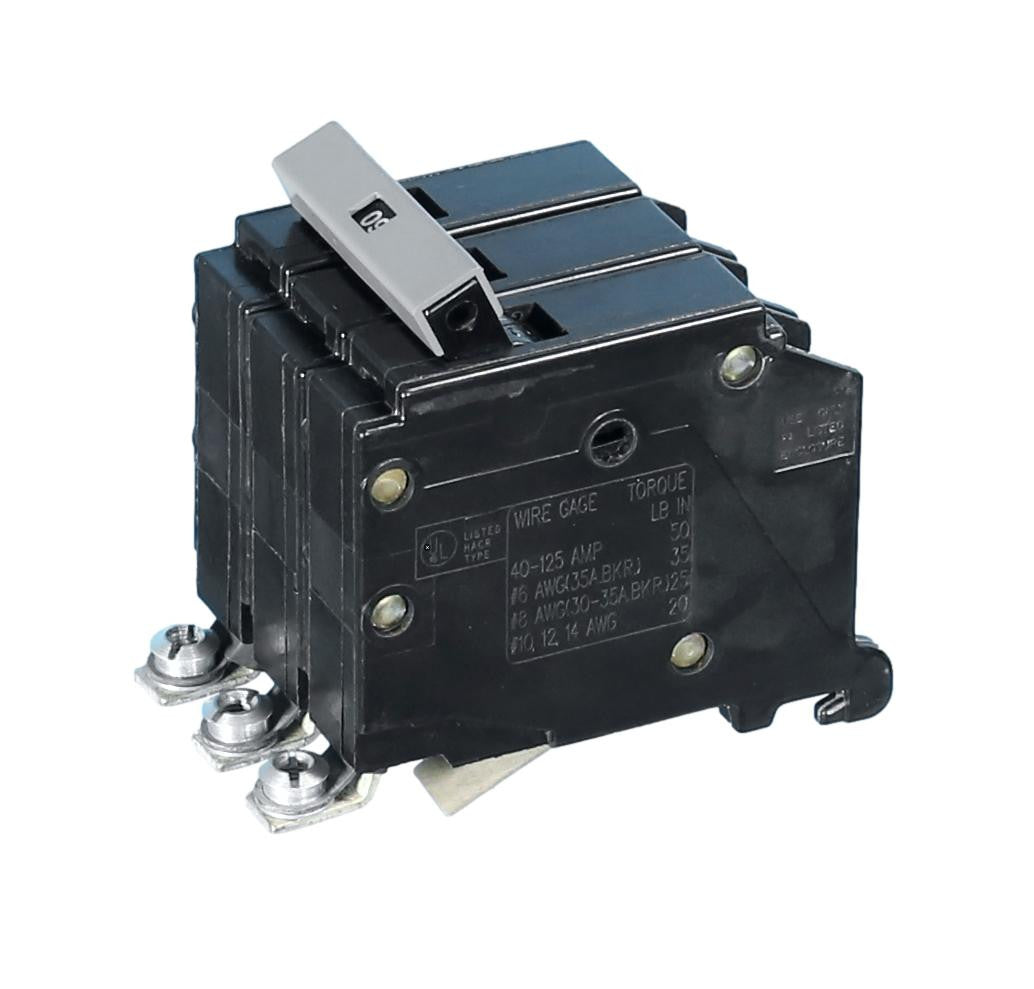

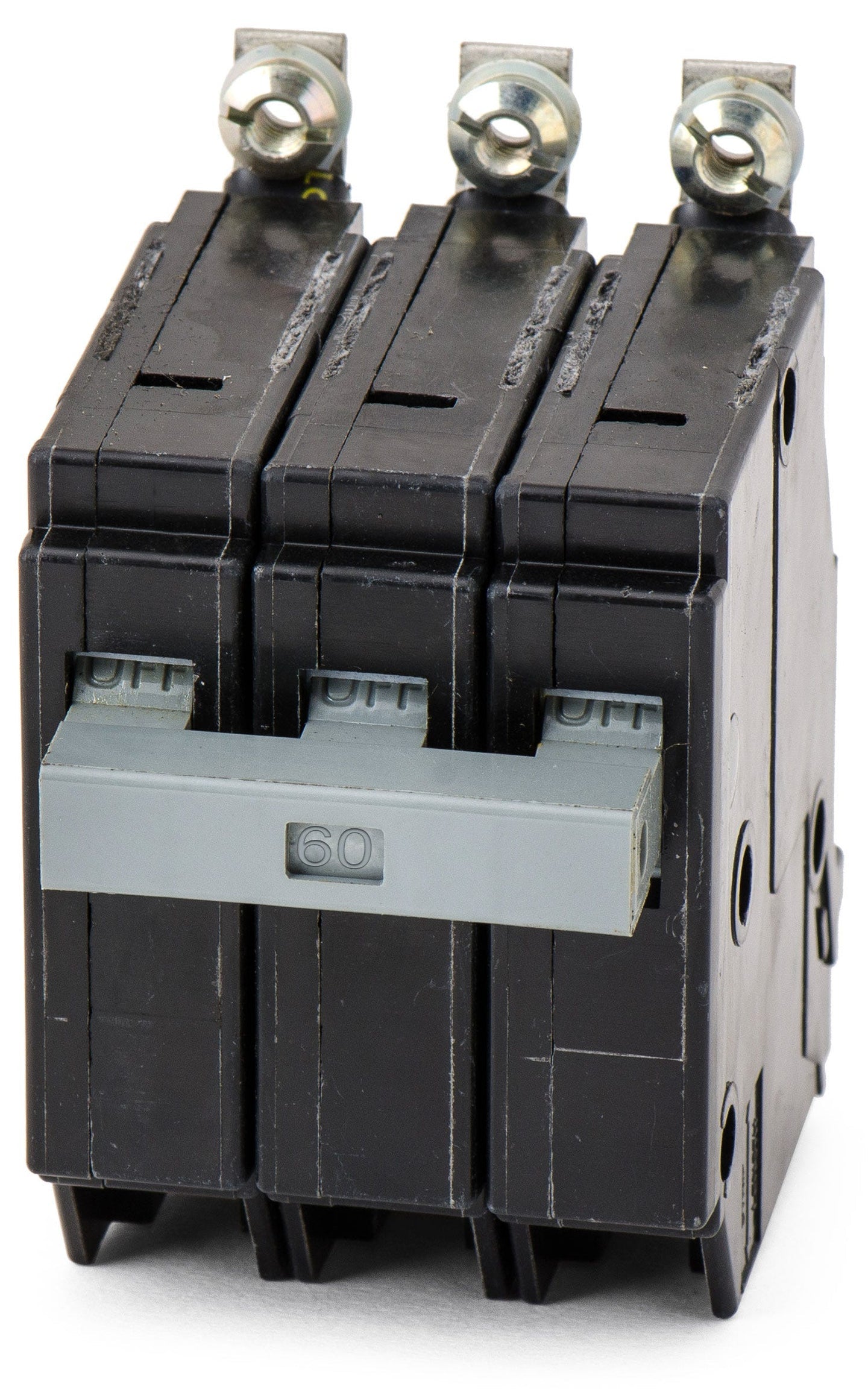

Eaton CHB360 C-H Type CHB Circuit Breaker 60 A

Product Description

The EATON CHB360 is a molded case circuit breaker, Type CHB Standard, designed for reliable protection. Operating at 240 VAC with a 60 A amperage rating and 10 kA interrupt capacity, it features a LI Trip, 3 Pole, 3 ph, and Handle Actuator. It is suitable for use with 8 to 2 AWG wire.

• Contacts are sintered weld resistant silver tungsten
• Inverse time element thermal element tripping
• Copper aluminum wire

Product Highlights

Provides reliable circuit protection with a thermal-magnetic trip unit and quick-make, quick-break mechanism. It is HACR rated for HVAC applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB360
• Country of Origin: Dominican Republic

Technical Specifications

• Actuator Type: Handle
• Amperage Rating: 60 A
• Connection Type: Box Lug
• Manufacturer Part Number: CHB360
• Mounting Type: Bolt-On
• Number of Poles: 3
• Phase: 3 ph
• Standards/Approvals: Bureau Veritas Certified|CCC Certified|CE Certified|CSA Certified|GoST-R Certified|Lloyd's Register Certified|UL 489
• Temperature Rating: 60 to 75 deg C
• Trip Type: LI
• Type: Type CHB Standard
• Voltage Rating: 240 VAC
• Product Length/Depth: 3.7 in
• Product Height: 3.3 in
• Product Width: 1.5 in
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters
• Circuit breaker type: CHB
• Interrupt rating: 10 kAIC
• Wire size: #8-2 AWG
• Brand: Eaton | Cutler-Hammer
• Series: CHB
• Amperage: 60A
• Voltage: 240VAC
• Poles: 3
• AIC Rating: 10kA @ 240VAC
• Terminal Type: Box Lugs
• For Use With: Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 8-2 AWG
• Max Wire: 2 AWG
• Min Wire: 8 AWG
• Available Options: Shunt Trip, Padlock Attachment
• Standards: CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: Common Trip, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break
• SKU: CHB360
• UPC: 782113112640
• Condition: New
• Availability: New or Re-certified
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Generation - Renewable Energy - Alternative Energy|Other|Generation - Conventional Energy - Conventional Energy|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Datacenters - IT Space CI and Hyper Converged|Residential Bldgs Facilities - Residential Bldgs Facilities - Other
• Standard: UL 489Contact Manufacturer
• GTIN: 00782113112640
• Item Type: Thermal magnetic circuit breakers
• Model #: CHB360
• Part #: CHB360
