Product Description

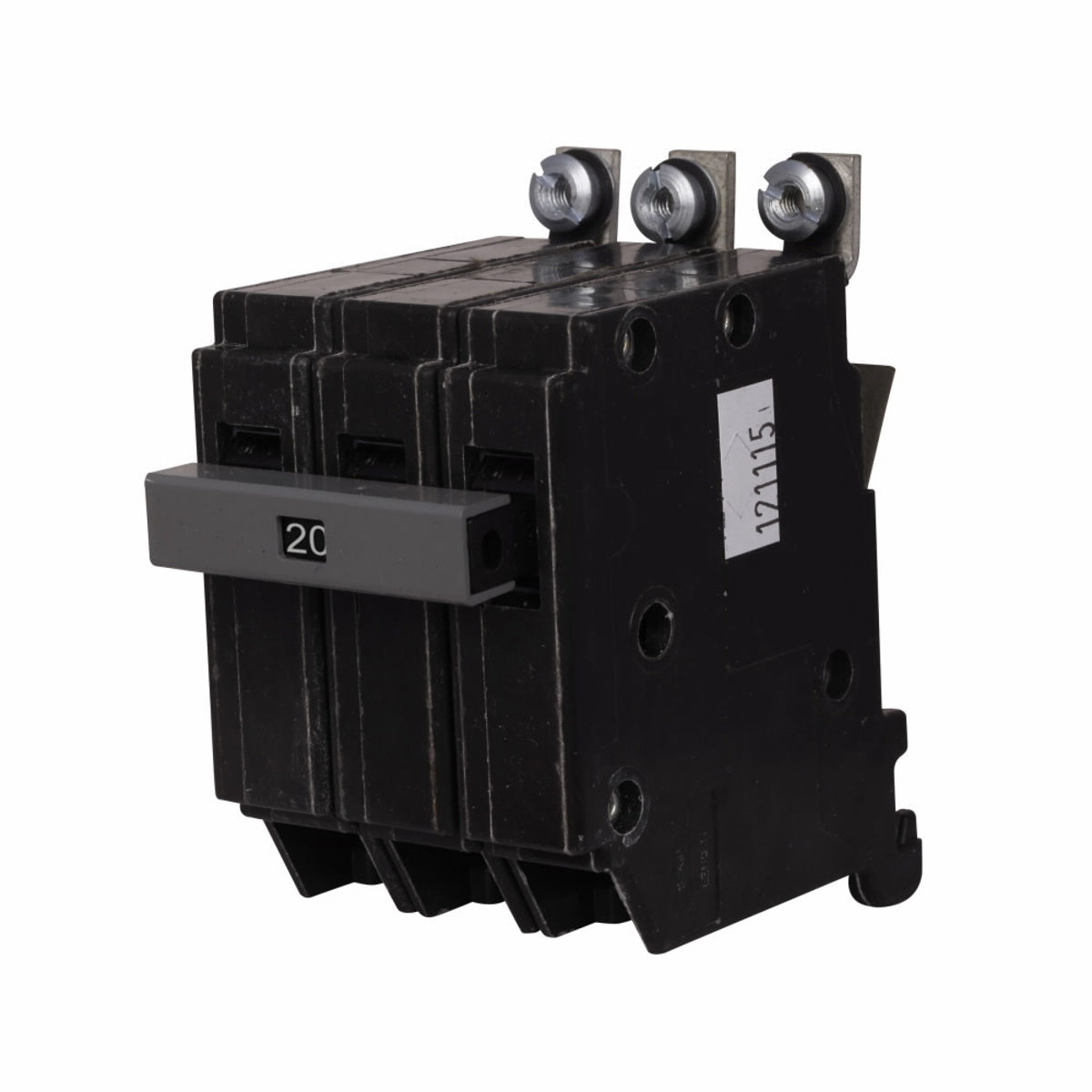

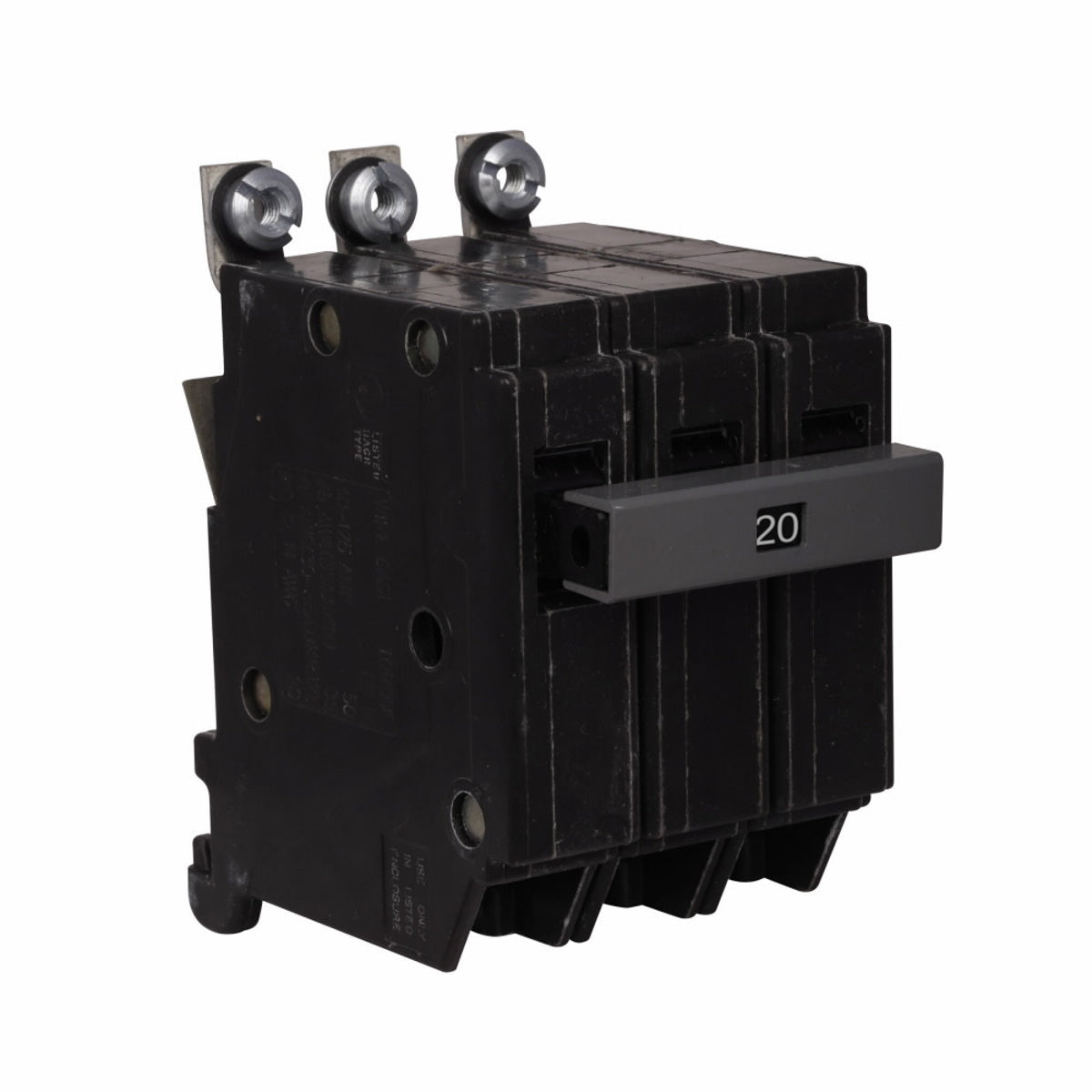

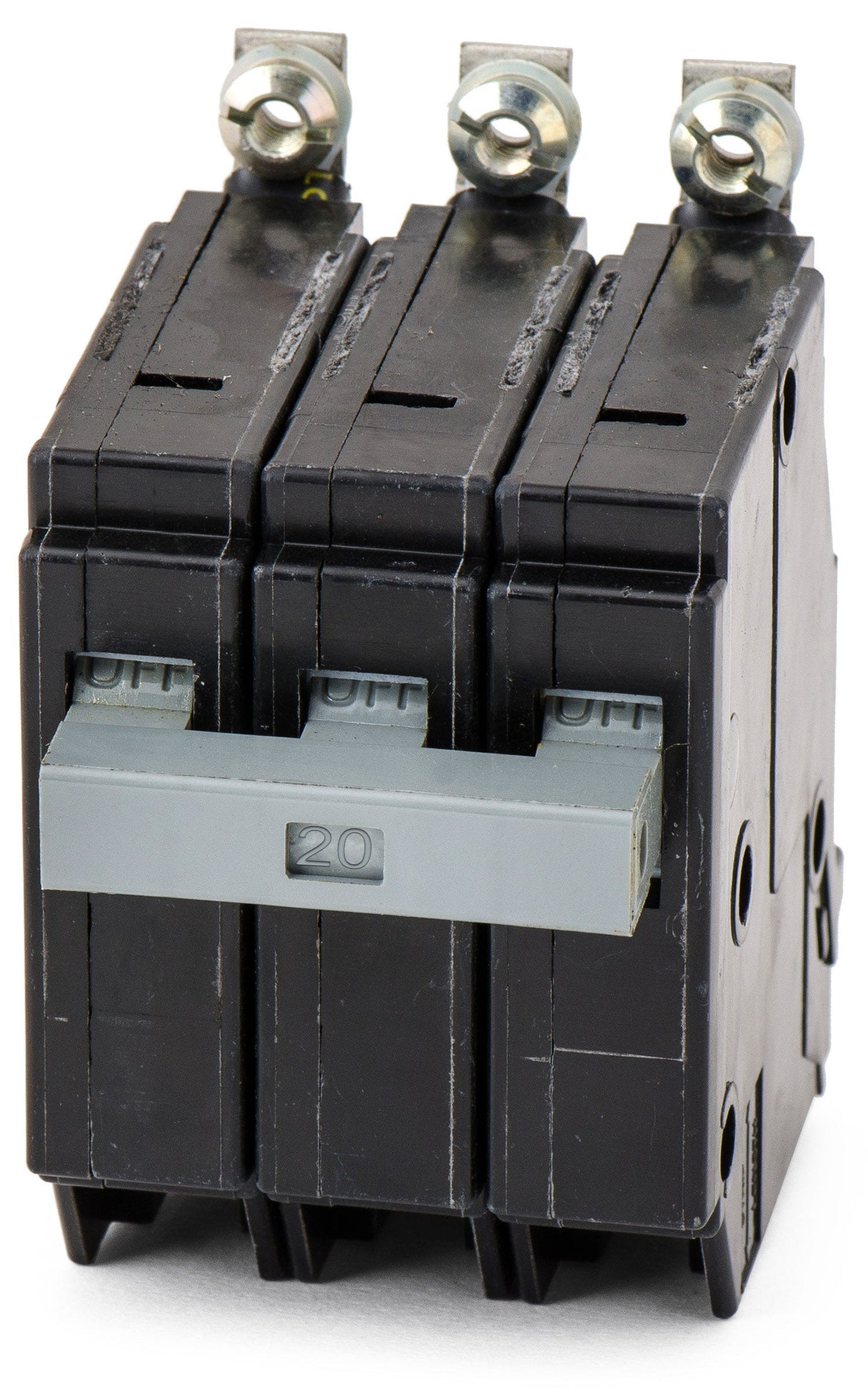

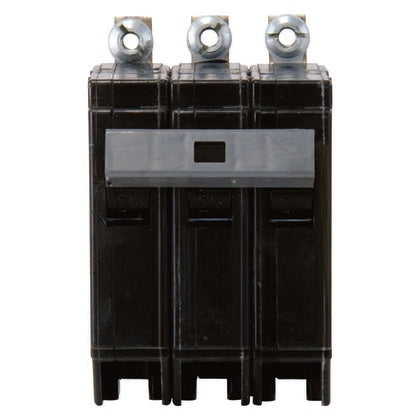

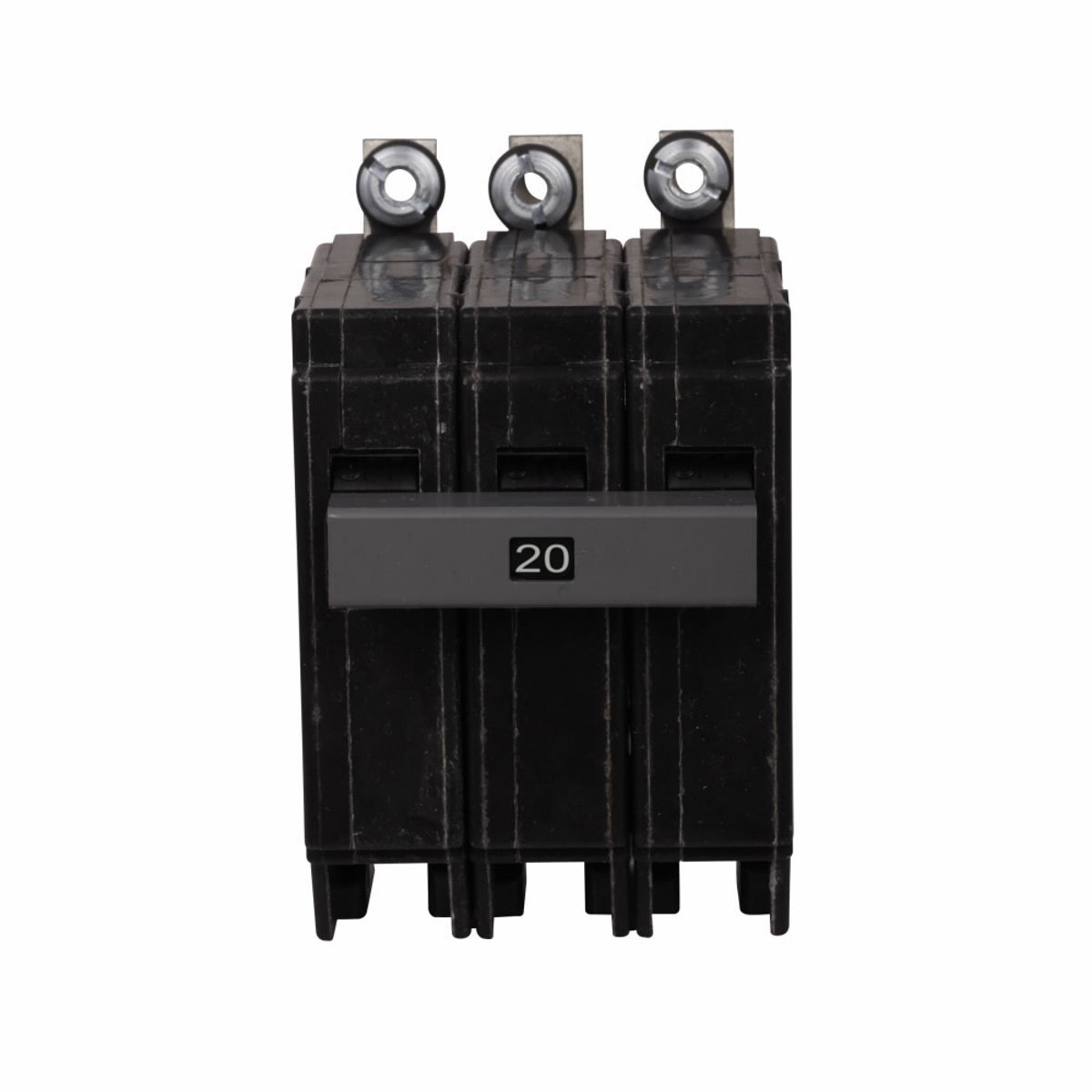

The Eaton CHB320 Type CHB Circuit Breaker is a three-pole, 20A circuit breaker designed for 240V applications. It provides overload protection and trips to the OFF position, eliminating nuisance callbacks. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting quickly to short-circuit conditions. It has an interrupt rating of 10 kAIC and accommodates #14-8 AWG wire size.
- Provides premium overload protection.
- Features a thermal-magnetic trip curve.
- Suitable for use with CH Loadcenters.
Product Highlights
The Eaton CHB320 circuit breaker offers reliable overload protection with a 10 kAIC interrupt rating and is suitable for various applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CHB320
-
Country of Origin: Dominican Republic
Technical Specifications
-
Type: Circuit Breaker
-
Brand: Eaton
-
Voltage: 240 Volt
-
Amperage: 20 Amp
-
Standard: UL 489
-
Wire Size: 14-8 AWG
-
Number of Poles: 3 Pole
-
Interrupt Rating: 10 kAIC
-
Circuit Breaker Type: CHB
-
Catalog Number: CHB320
-
Manufacturer: Eaton
-
Country of Origin: Dominican Republic
-
Application: Other|Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Generation - Conventional Energy - Conventional Energy|Generation - Renewable Energy - Alternative Energy|Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
-
UPC: 782113112596
-
GTIN: 00782113112596
-
Item Type: Thermal magnetic circuit breakers
-
Voltage Rating: 240 V - 240 V
-
Actuator Type: Handle
-
Connection Type: Box Lug
-
Mounting Type: Bolt-On
-
Phase: 3 ph
-
Temperature Rating: 60 to 75 deg C
-
Trip Type: LI
-
Amperage Rating: 20 A
-
Standards/Approvals: Bureau Veritas Certified|CCC Certified|CE Certified|CSA Certified|GoST-R Certified|Lloyd's Register Certified|UL 489
-
Used with: CH Loadcenters
-
Number of poles: Three-pole
-
Wire size: #14AWG...#8AWG
-
Poles: 3
-
Volts AC: 120, 240
-
Amps: 20
-
Mounting: Bolt On
-
Interrupt Rating AC: 10 kA
-
Series: CHB
-
AIC Rating: 10kA @ 240VAC
-
Terminal Type: Box Lugs
-
For Use With: Cutler-Hammer Type PB Panelboards, Type PH Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-8 AWG
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Approval: CSA, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, Common Trip
