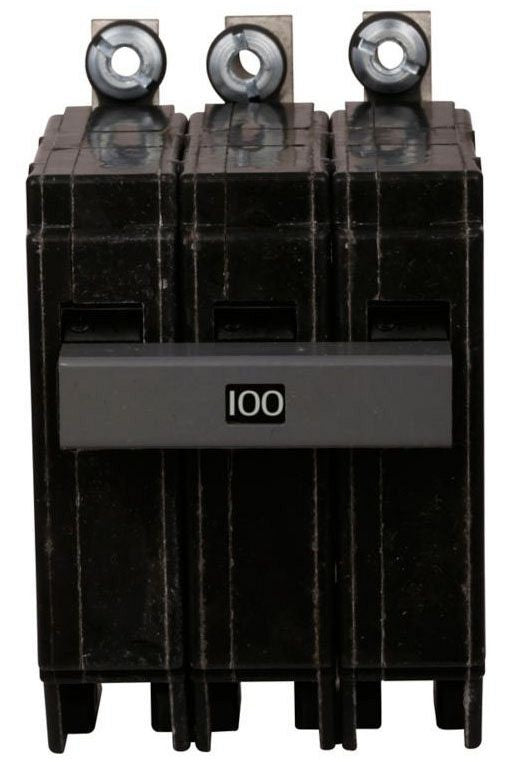

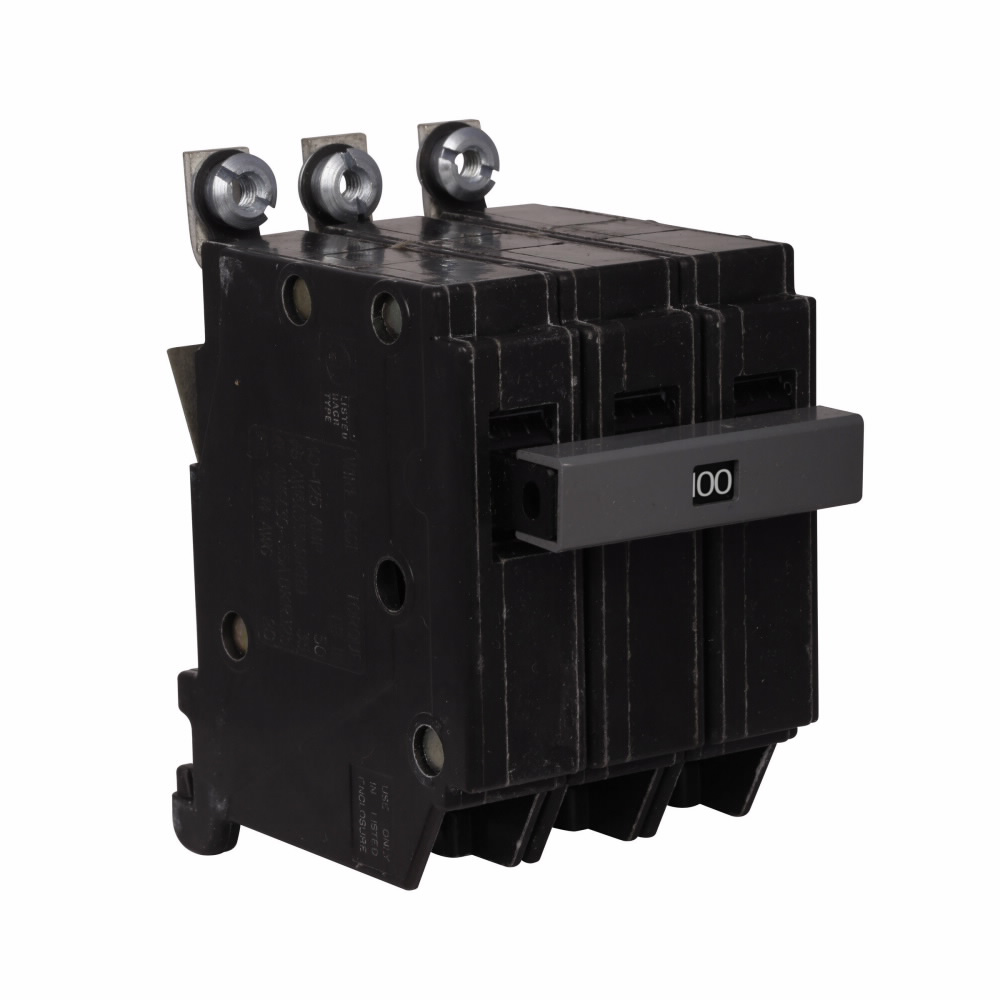

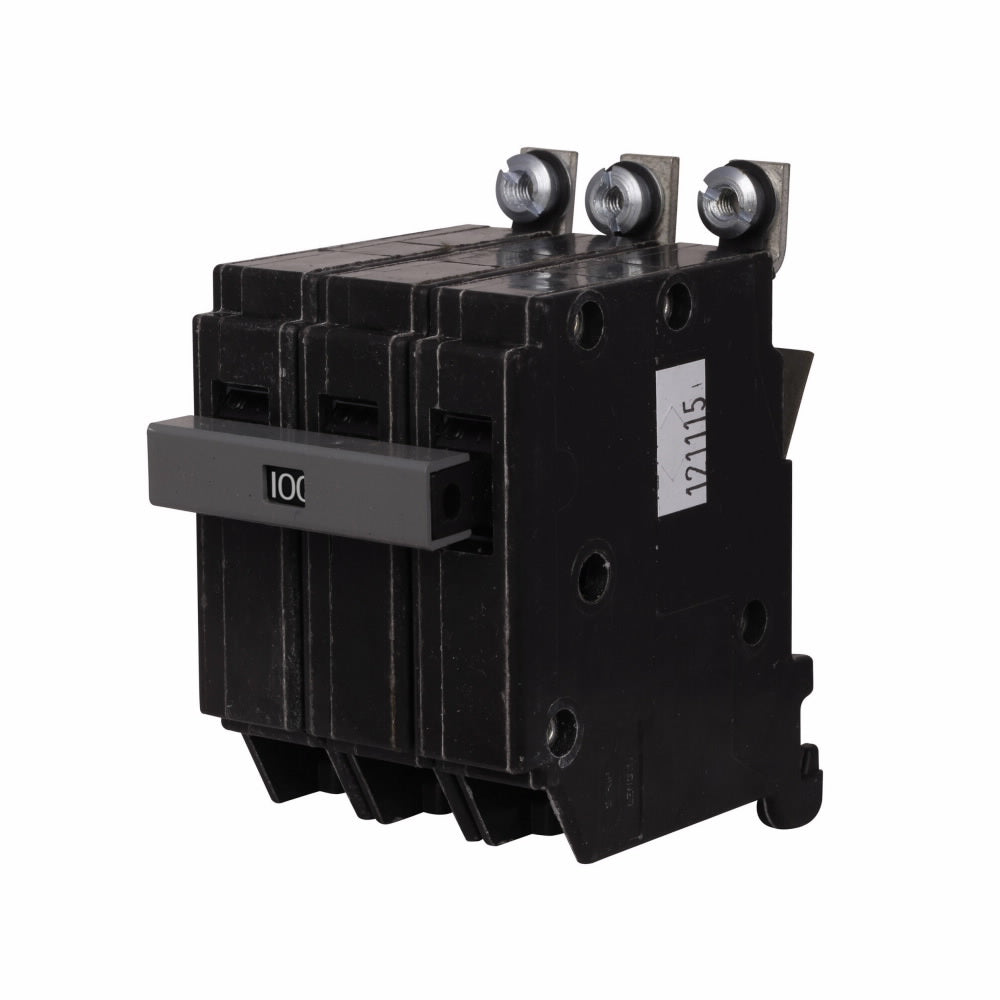

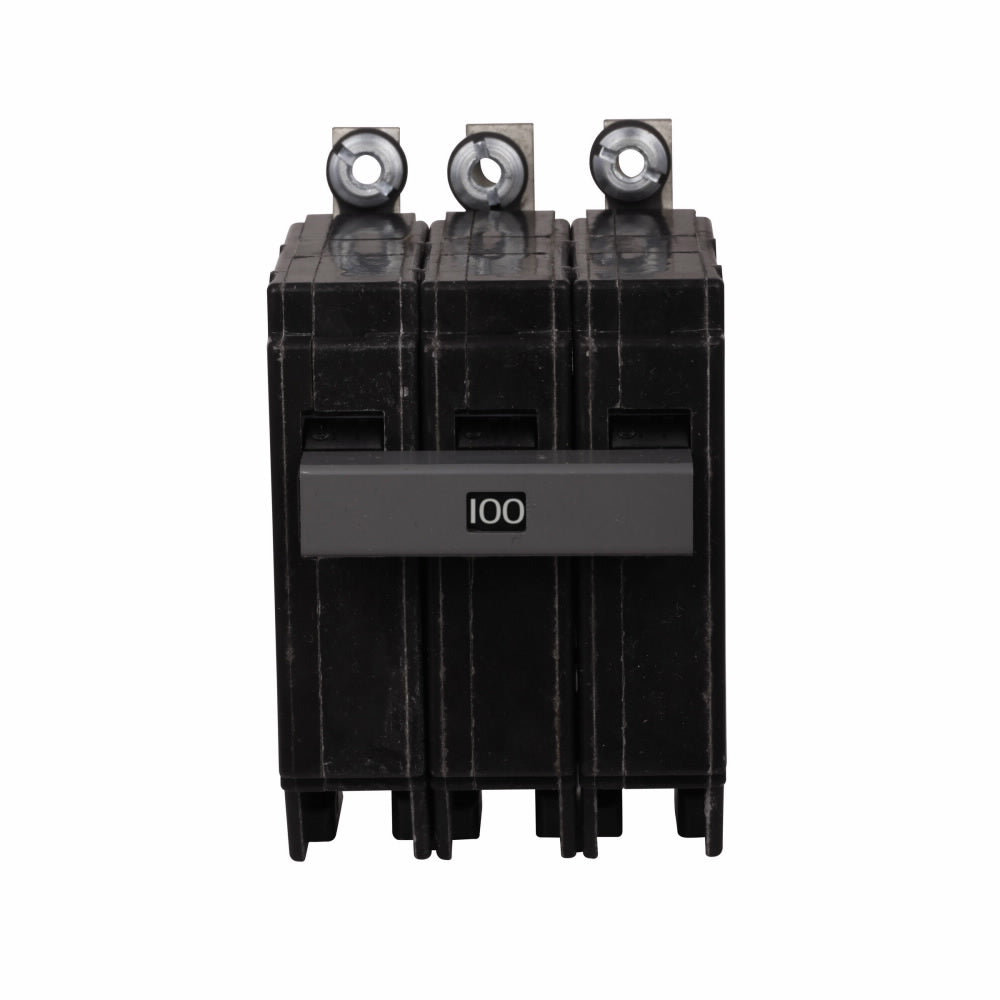

Eaton CHB3100 Type CHB Standard Molded Case Circuit Breaker 240 VAC 100 A 10 kA Interrupt

Product Description

The Eaton CHB3100 Type CHB Circuit Breaker is designed for effective power distribution. This thermal magnetic circuit breaker operates at two hundred forty volts with an amperage rating of one hundred amps. It features a ten kA interrupt rating and three poles for robust performance in various electrical systems.

• Rated voltage: 240 V
• Amperage: 100 A
• Three-pole design

Product Highlights

This circuit breaker is ideal for residential and commercial applications. It offers overload protection and minimizes nuisance tripping, making it suitable for critical electrical systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: CHB3100
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Interrupt Rating: 10 kA
• Number of Poles: 3
• Wire Size: 4 to 1/0 AWG
• Dimensions: 5.9 in L x 3.8 in W x 2.2 in H
• Actuator Type: Handle
• Mounting Type: Bolt-On
• Country of Origin: Dominican Republic
