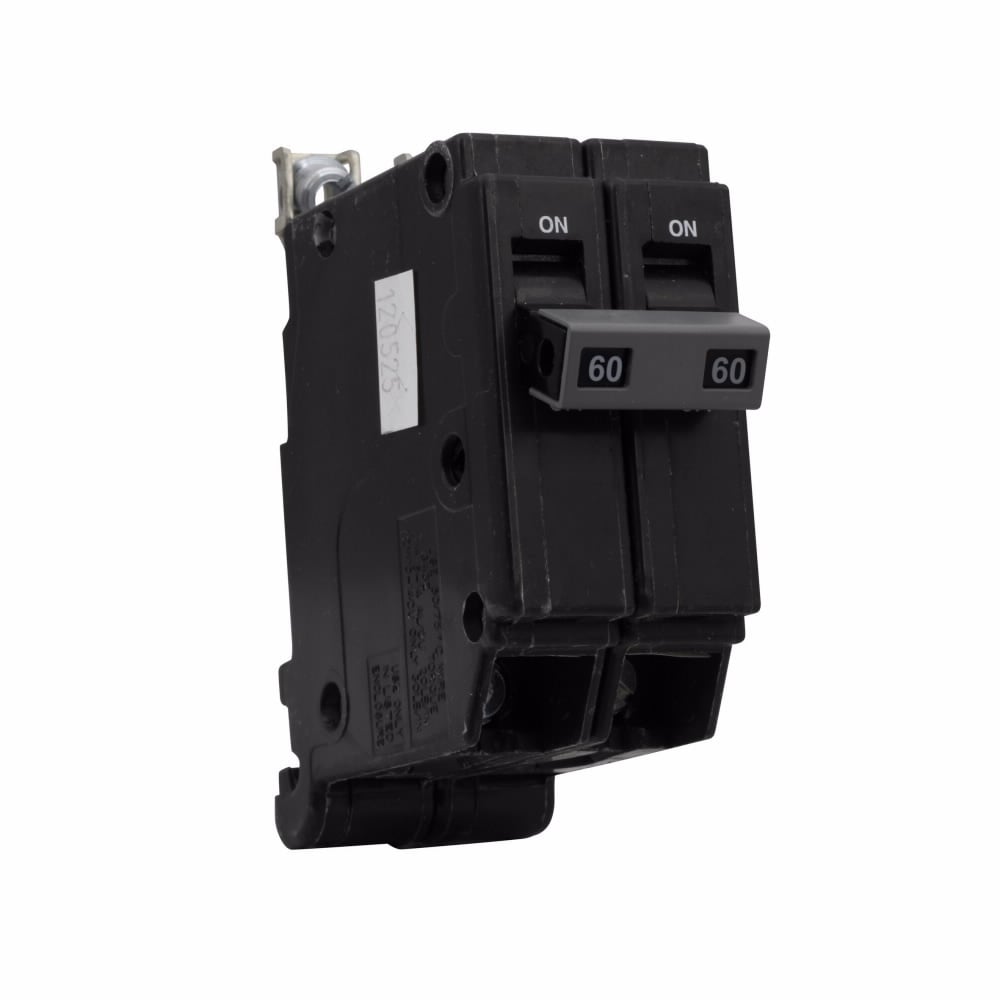

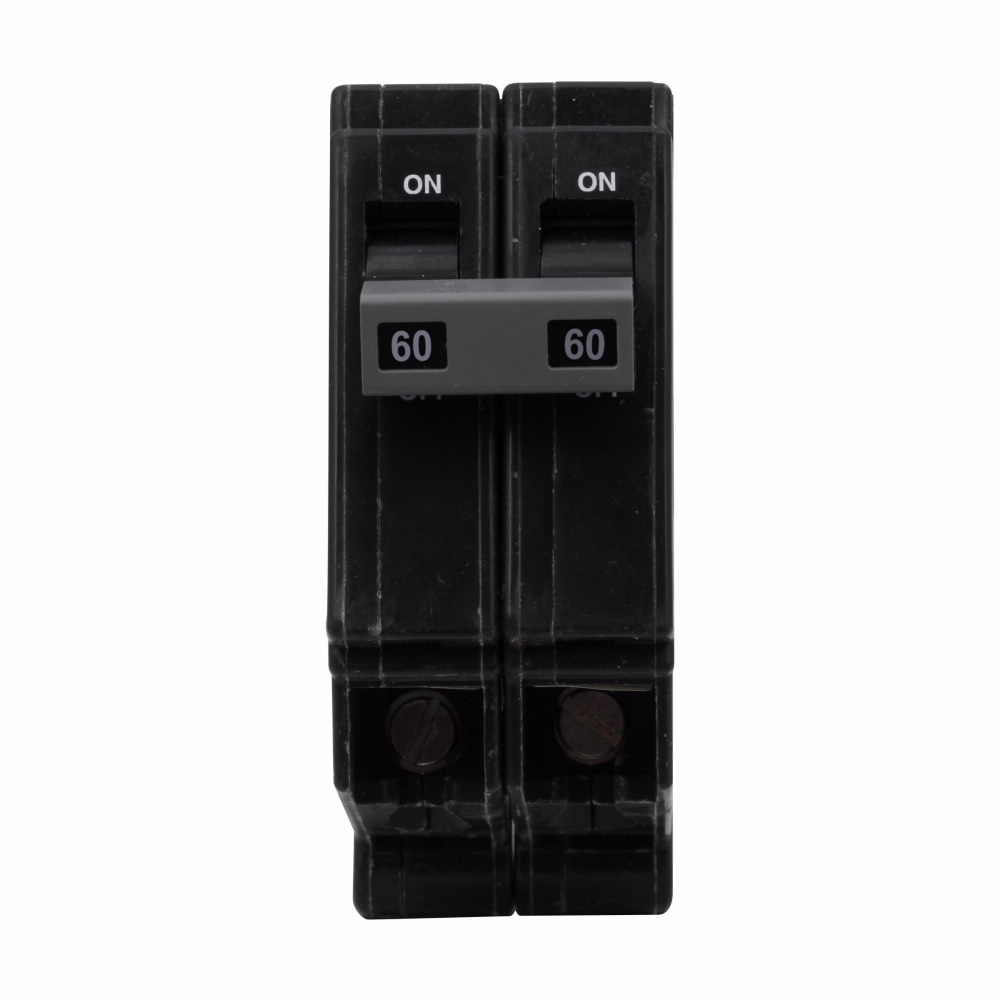

Eaton CHB260 Type CHB Circuit Breaker 120/240 VAC 60 A 10 kA Interrupt 2 Poles

Product Description

The Eaton CHB260 Type CH Circuit Breaker is designed for efficient overload protection and circuit control. This unit operates at 120/240 volts and can handle a current of up to sixty amps. It features two poles with a maximum interrupt rating of ten kA. The circuit breaker is compatible with wire sizes ranging from eight to two AWG and is suitable for various applications including residential buildings, renewable energy generation, and conventional energy systems.

• Type CHB thermal magnetic circuit breaker
• Handles include ON-OFF indication
• Quick response to short-circuit conditions

Product Highlights

This circuit breaker is part of the Eaton line of thermal magnetic circuit breakers, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: CHB260

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Wire Size: 8-2 AWG
• Dimensions: 3.4 in L x 2.2 in W x 2.7 in H
• Weight: 0.55 lb
• Standard: UL 489
