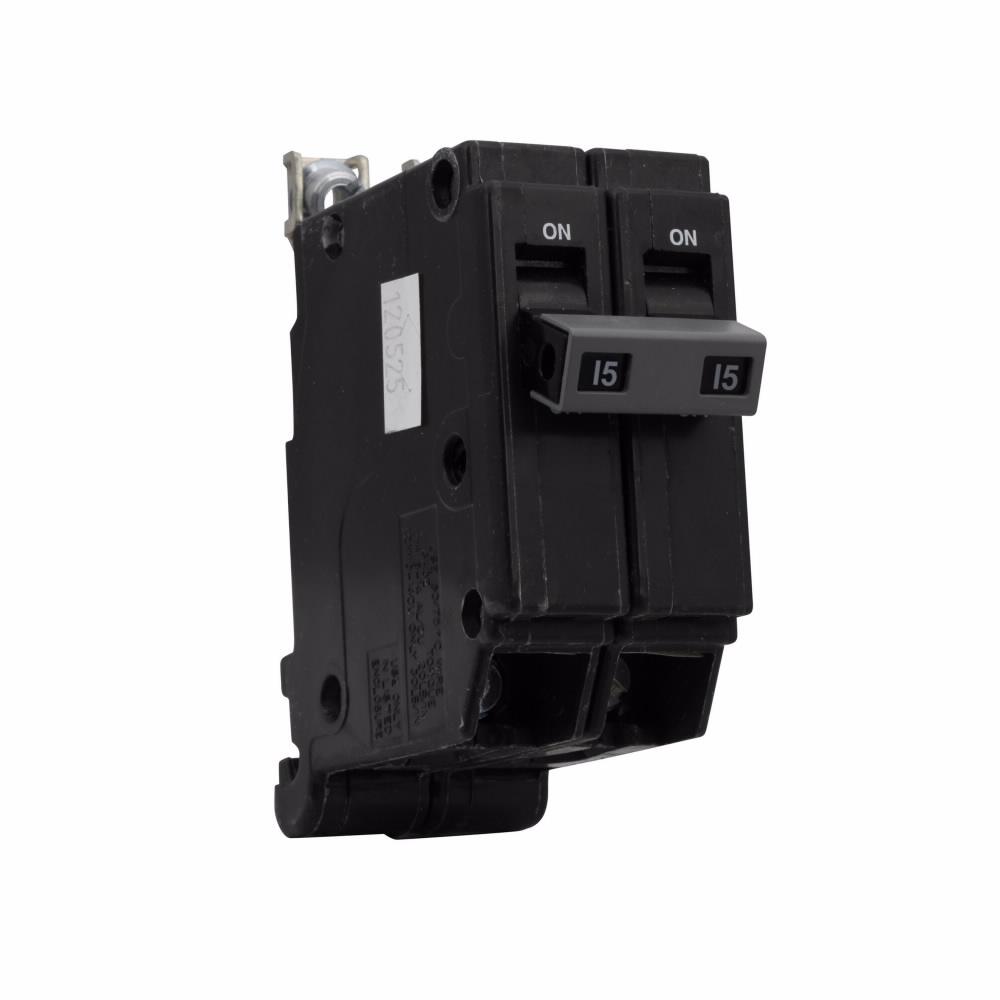

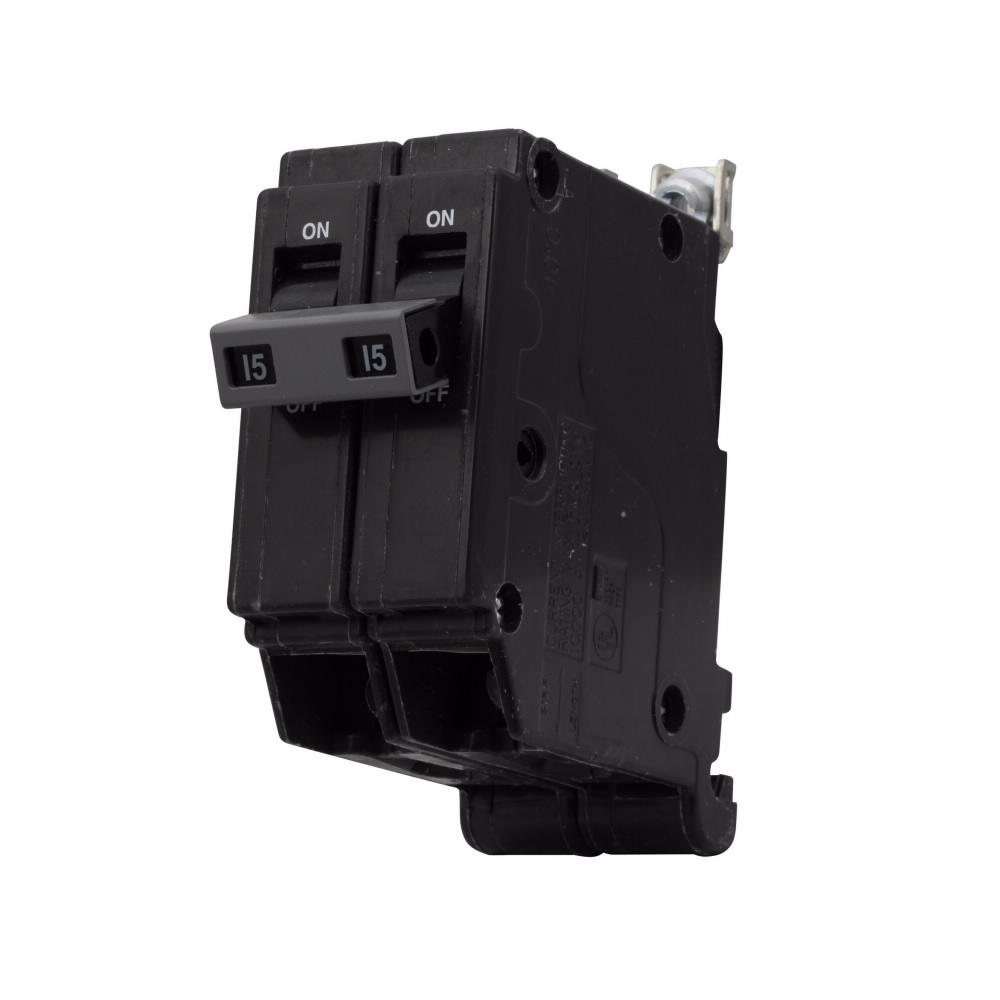

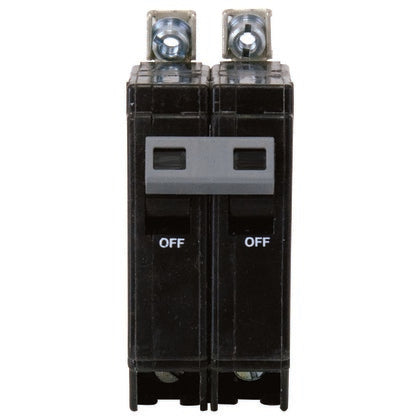

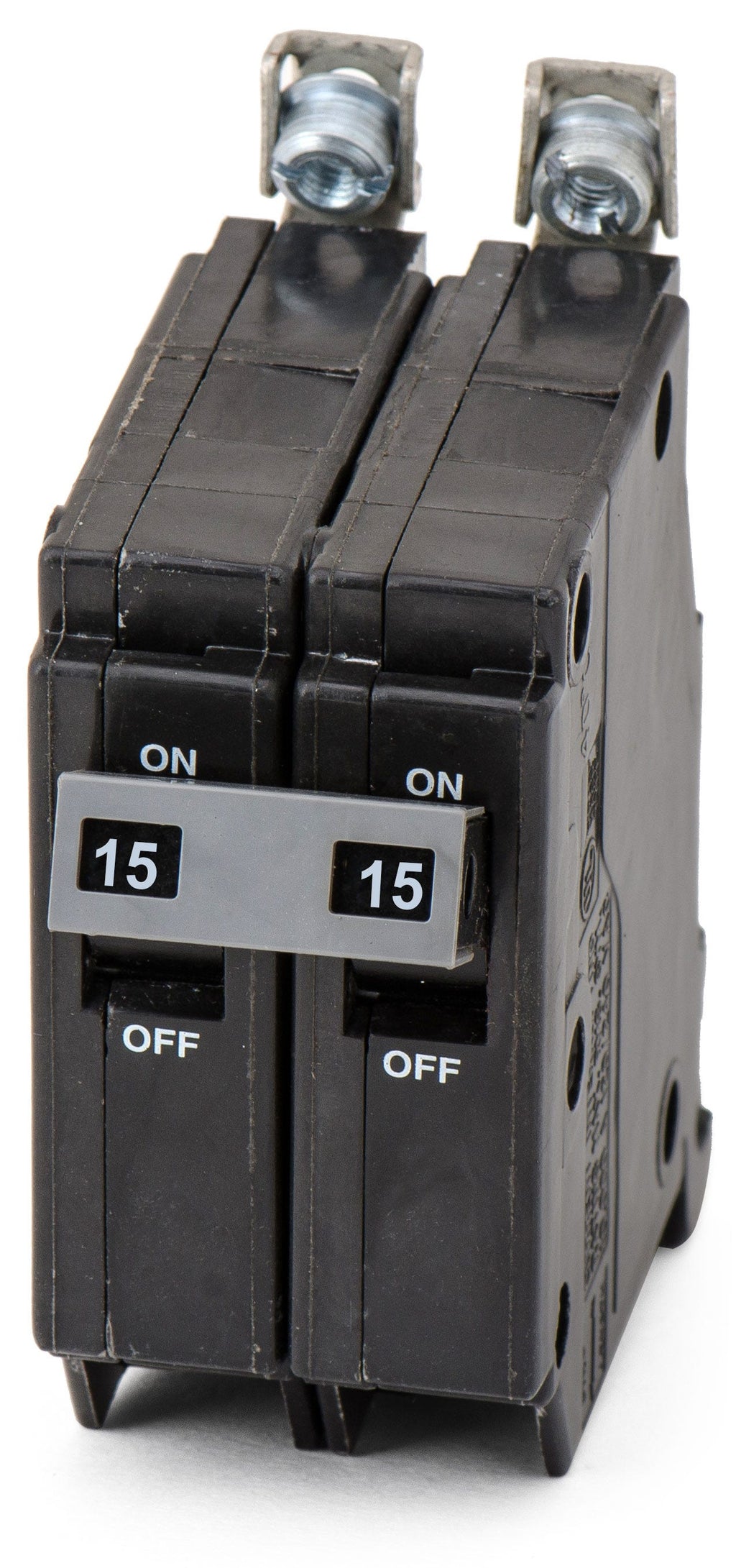

Eaton CHB215 CH Thermal Magnetic Circuit Breaker 15A

Product Description

The Eaton CHB215 is a thermal magnetic circuit breaker designed for reliable circuit protection. This two-pole breaker is rated at 15A and 120/240V, with a 10 kAIC interrupt rating. It is suitable for use with CH Loadcenters and offers thermal-magnetic protection for commercial applications, safeguarding against overloads and short circuits.

• Two-pole breaker with 15A amperage rating
• Operates on 120/240V systems
• Features a 10 kAIC interrupt capacity

Product Highlights

Provides reliable thermal-magnetic protection for commercial and industrial applications. Designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB215
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CHB215
• UPC: 782113112404
• Product Length/Depth: 3.75 in
• Product Height: 3.5 IN
• Product Width: 1.5 IN
• Certifications: UL 489, CSA C22.2 No. 5, Federal Specification W-P-131a, CSA, UL
• Catalog Notes: Requires extra pole space
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters, Type PB Panelboards, Type PH Panelboards, Meter Panels
• Amperage Rating: 15 A
• Voltage rating: 120/240 V
• Circuit breaker type: CHB
• Interrupt rating: 10 kAIC
• Wire size: #14-8 AWG
• Number of poles: Two-pole
• Type: Circuit breaker, Type CHB Standard
• Brand: Eaton / Cutler-Hammer
• Series: CHB
• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Box Lugs
• For Use With: Type PB Panelboards, Type PH Panelboards, Meter Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 5, Federal Specification W-P-131a
• Approval: CSA, UL
• Temp Rating: 40C
• Product Name: Type CHB Circuit Breaker
• Product Length: 3.75 IN
• Dimensions (H x W x L): 3.5" x 1.5" x 3.75"
• Volts AC: 120, 240
• Amps: 15
• Mounting: Bolt On
• Interrupt Rating AC: 10 kA
• Actuator Type: Handle
• Connection Type: Box Lug
• Dimensions: 3-3/4 x 1-1/2 x 3-1/2 in
• Mounting Type: Bolted-On
• Temperature Rating: 60 to 75 deg C
• Trip Type: LI
