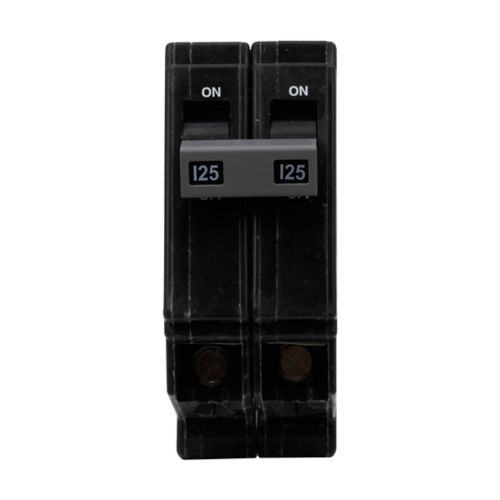

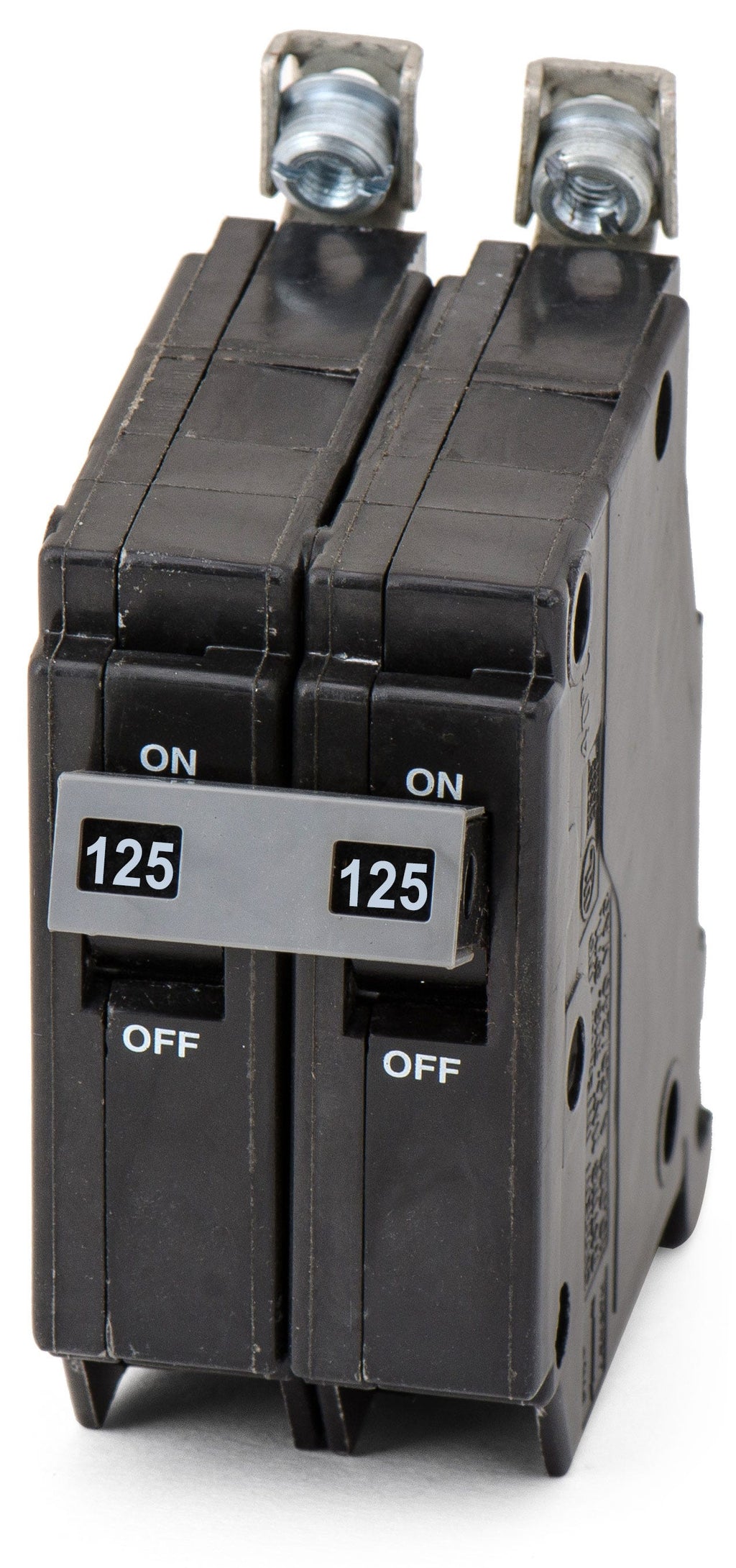

Eaton CHB2125 CH Thermal Magnetic Circuit Breaker 125 A

Product Description

The Eaton CHB2125 is a thermal magnetic circuit breaker. This two-pole, 125A circuit breaker provides thermal-magnetic protection against overloads and short circuits. Designed for a secure connection, this breaker bolts into Cutler-Hammer Type PB panelboards, PH panelboards, and meter panels. The box lug terminals accommodate 4-1/0 AWG wire.

• Commercial and industrial use
• Thermal-magnetic protection against overloads and short circuits
• Bolts into Cutler-Hammer Type PB panelboards, PH panelboards, and meter panels

Product Highlights

Eaton CHB2125 circuit breakers provide premium overload protection and eliminate nuisance callbacks. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB2125

Technical Specifications

• Product Name: Eaton CH thermal magnetic circuit breaker
• Catalog Number: CHB2125
• UPC: 782113338903
• Product Length/Depth: 3.6 in
• Product Height: 3.4 in
• Product Width: 1.5 in
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters
• Amperage Rating: 125 A
• Voltage rating: 120/240 V
• Circuit breaker type: CHB
• Interrupt rating: 10 kAIC
• Wire size: 4 to 1/0 AWG
• Number of poles: Two-pole
• Type: Circuit breaker
• Brand: Eaton / Cutler-Hammer
• Series: CHB
• Part Number: CHB2125
• Amperage: 125A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Box Lugs
• For Use With: Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Max Wire: 1/0 AWG
• Min Wire: 4 AWG
• Available Options: Handle Lock
• Standards: CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Common Trip
• UNSPSC: 39121601
• Trip Type: LI
• Application: CH Loadcenters, Automotive, Food and Beverage, Food Service Equipment, Industrial Equipment, Material Handling, Metal Forming, Metal Stamping, Packaging, Printing Machinery and Waste Water Treatment Plant Applications
• Connection Type: Cable-In/Cable-Out
• Includes: Cable Retainer Clips
• Dimensions: 3.6 in L x 1.5 in W x 3.4 in H
