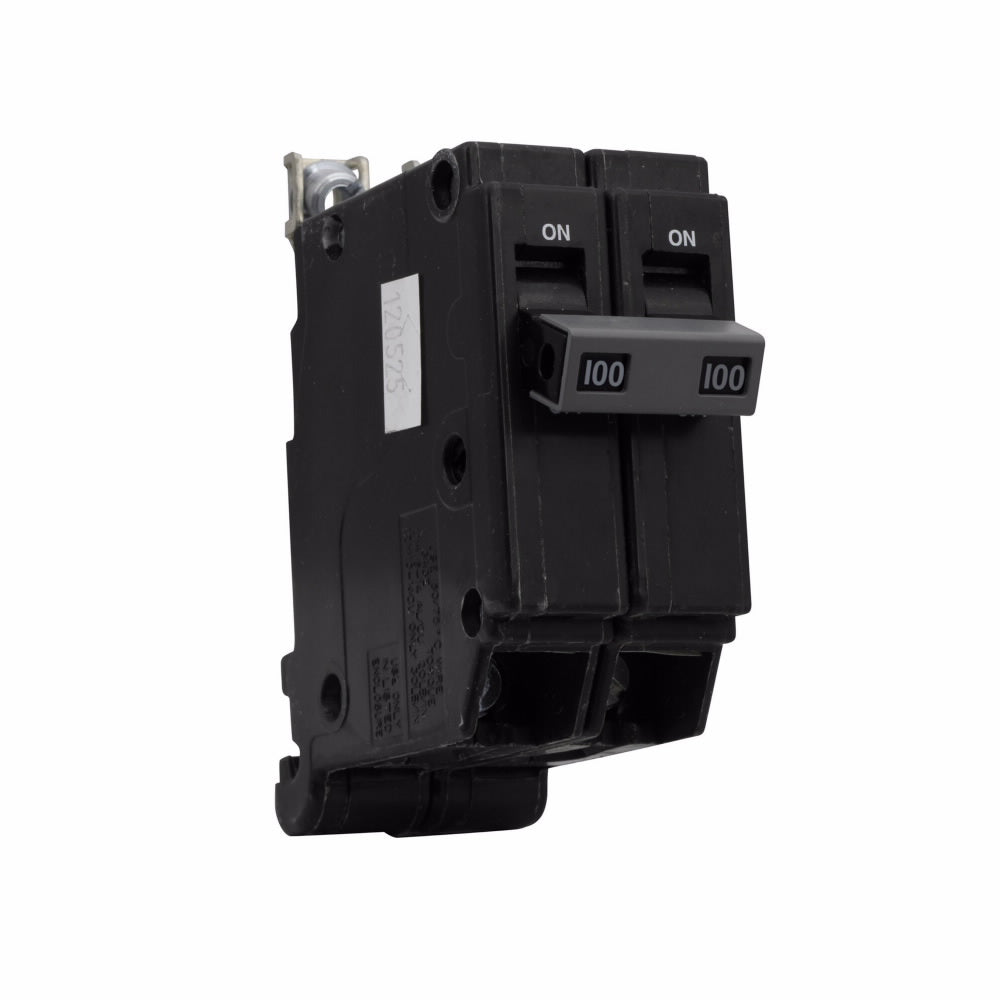

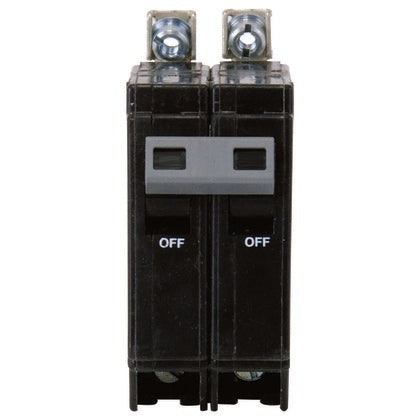

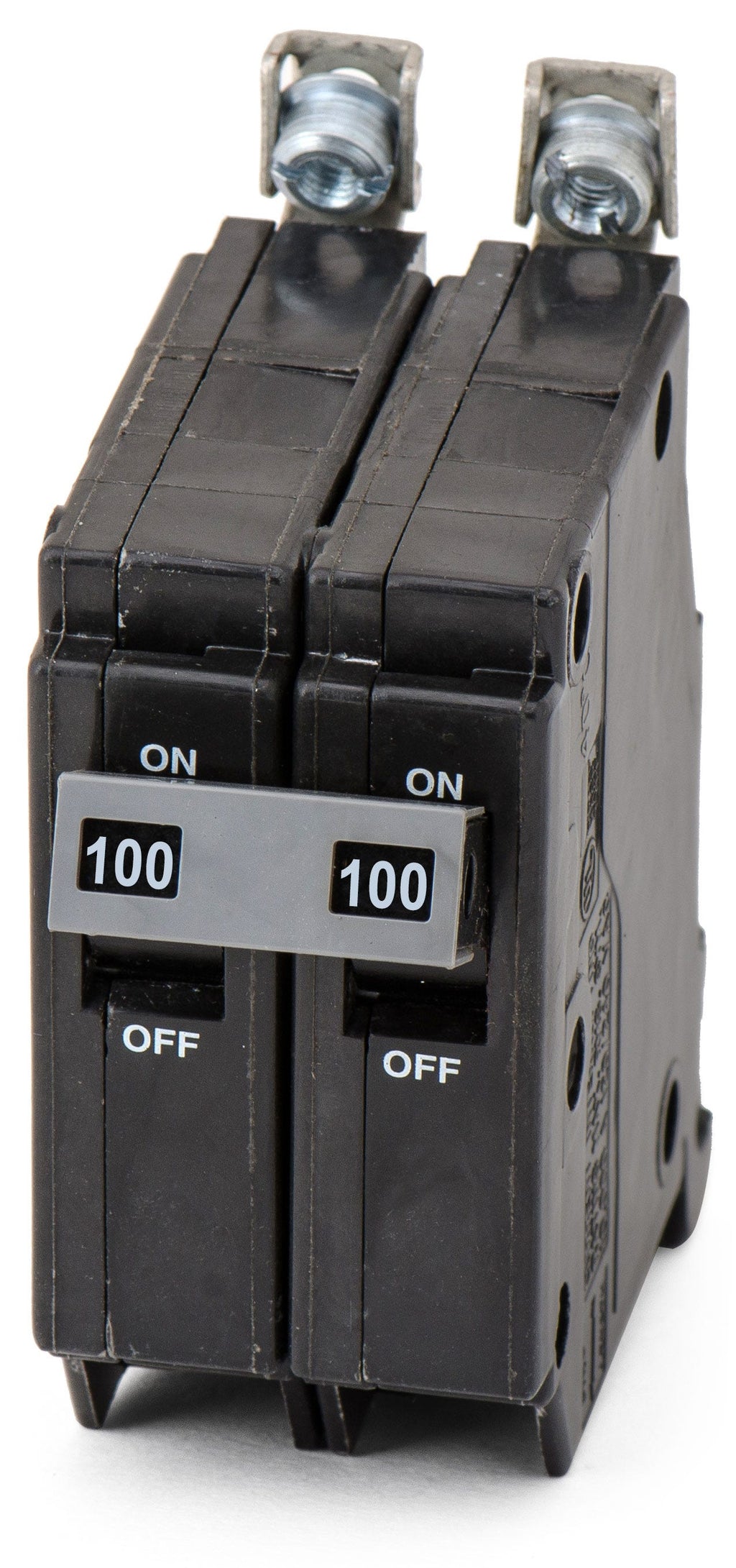

Eaton CHB2100 CHB Standard Circuit Breaker 100 A

EATON
Brand: EATON
SKU: CHB2100
Availability: Out Of Stock
$696.35
$696.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton's residential CHB2100 circuit breakers provide overload protection. These Type CH circuit breakers trip to the OFF position. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting to short-circuit conditions. Handles are marked with ON-OFF indication and ampere rating of the breaker.

  • Type CHB breaker handles trip to a position between ON and off and require movement to full OFF to reset the breaker
  • Contacts are sintered weld resistant silver tungsten
  • Inverse time element thermal element tripping

Product Highlights

Eaton CHB2100 circuit breakers provide premium overload protection and eliminate nuisance callbacks.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: CHB2100
Technical Specifications
Actuator Type
Handle
Connection Type
Box Lug
Mounting Type
Bolted-On
Phase
1 ph
Temperature Rating
75 deg C
Type
Type CHB Standard
Wire Size
4 to 1/0 AWG
Voltage Rating
120/240 VAC
Amperage Rating
100 A
Interrupt Rating
10 kA
Number of Poles
2
Trip Type
LI
Product Name
Type CHB Circuit Breaker
Product Length/Depth
3.6 in
Product Height
3.5 in
Product Width
1.5 in
Certifications
UL 489
Product Type
Thermal magnetic circuit breakers
Used with
CH Loadcenters
Circuit breaker type
CHB
AIC Rating
10kA @ 120/240VAC
Mounting Style
Bolt-On
Terminal Type
Box Lugs
For Use With
Cutler-Hammer Type PB Panelboards, Type PH Panelboards
Trip Technology
Thermal Magnetic
Trip Function Code
LI
Trip Function
Long-Time, Instantaneous
Trip Adjustability
Fixed Thermal, Fixed Magnetic
Wire Gauge
4-1/0 AWG
Max Wire
1/0 AWG
Min Wire
4 AWG
Available Options
Padlock Attachment
Standards
CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489
Approval
CSA, UL
Temp Rating
40C
Construction Features
Common Trip
Brand
Eaton
MPN
CHB2100
UPC
0782113112671
Model
Eaton CHB2100
eBay Product ID (ePID)
1438799726
Suitable For
Interior
Application
Branch Circuit
Maximum Amperage
100 A
Current Rating
91-100 A
Material
Thermoplastic
Circuit Breaker Type
CHB
