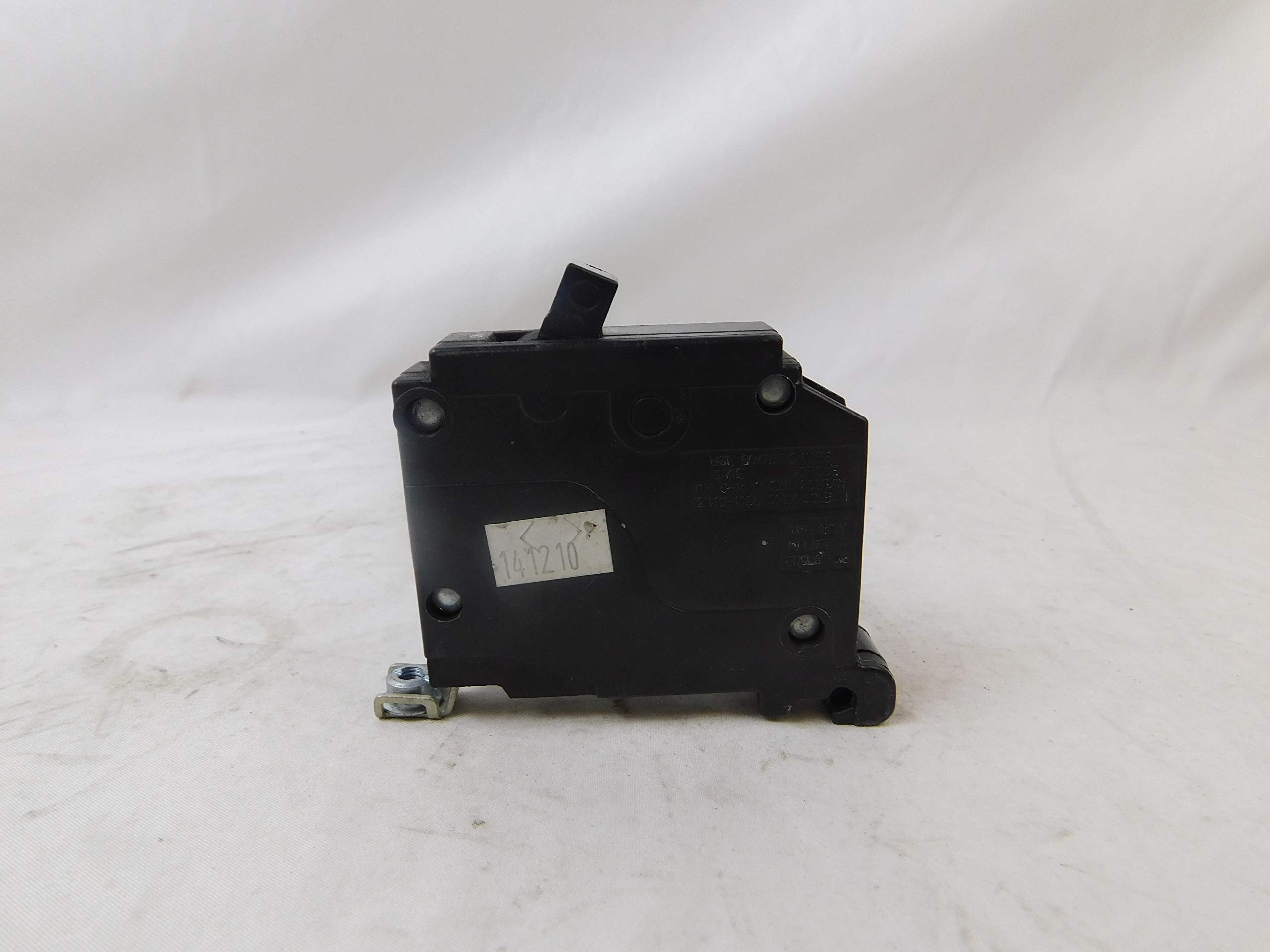

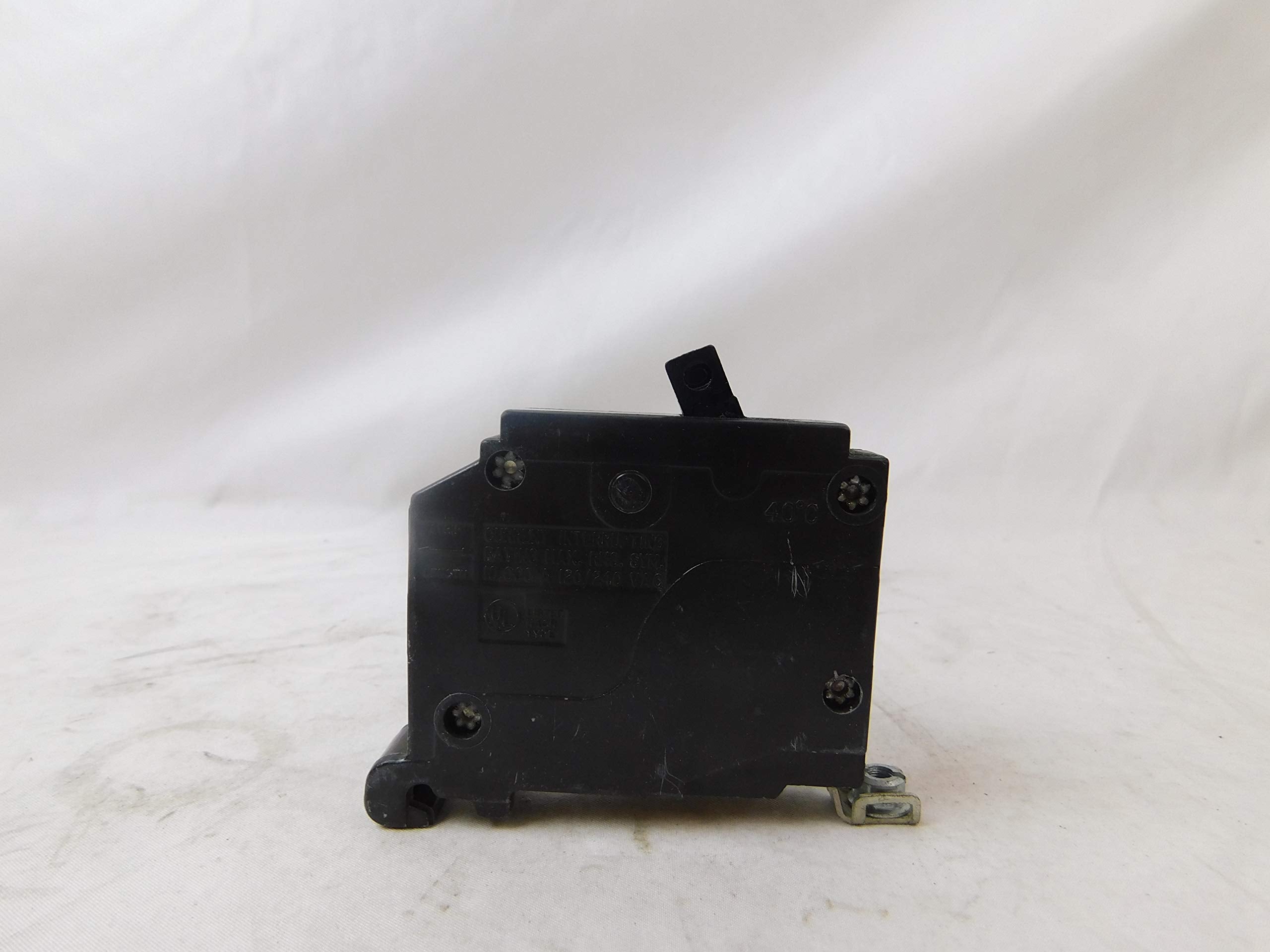

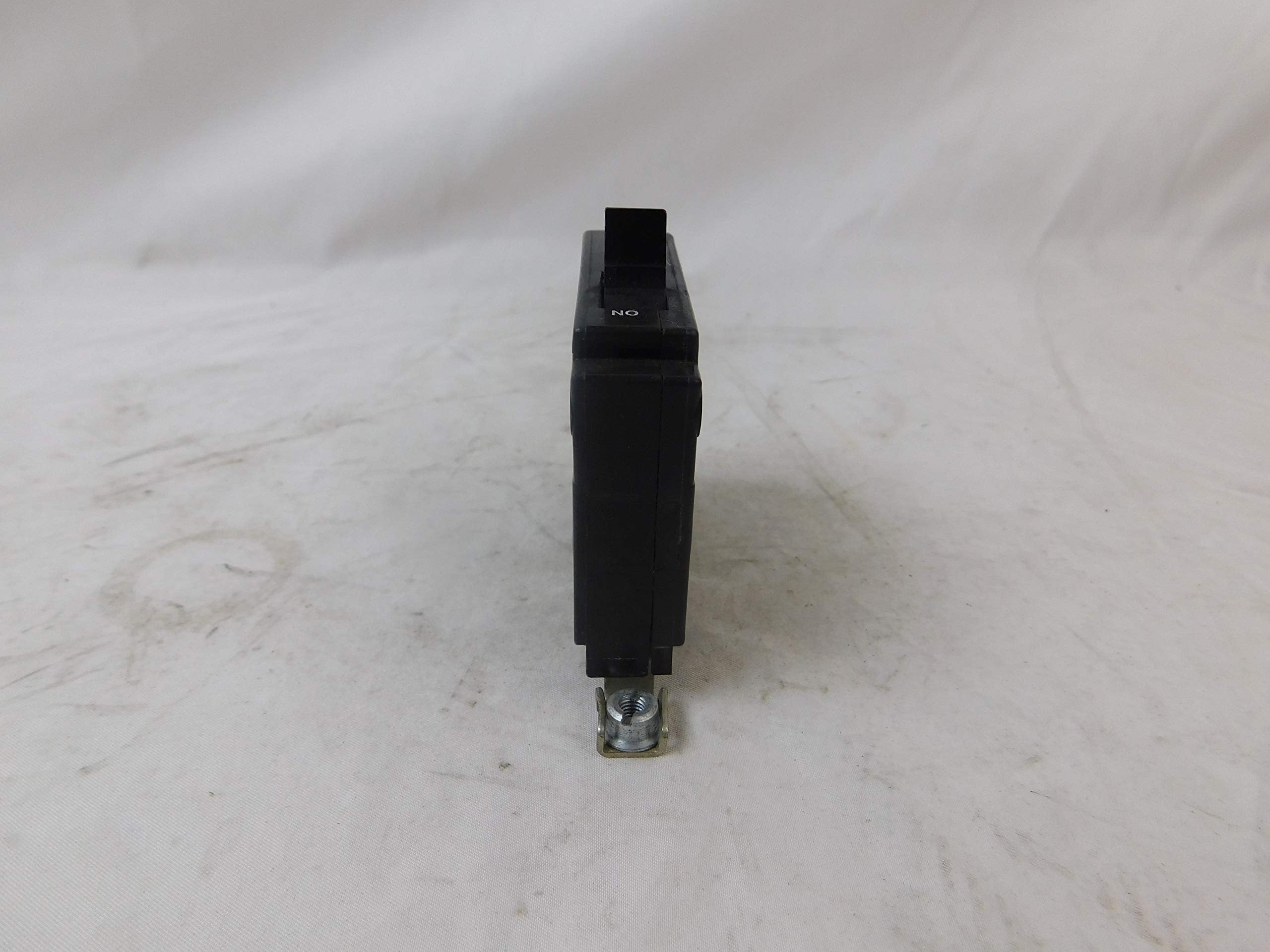

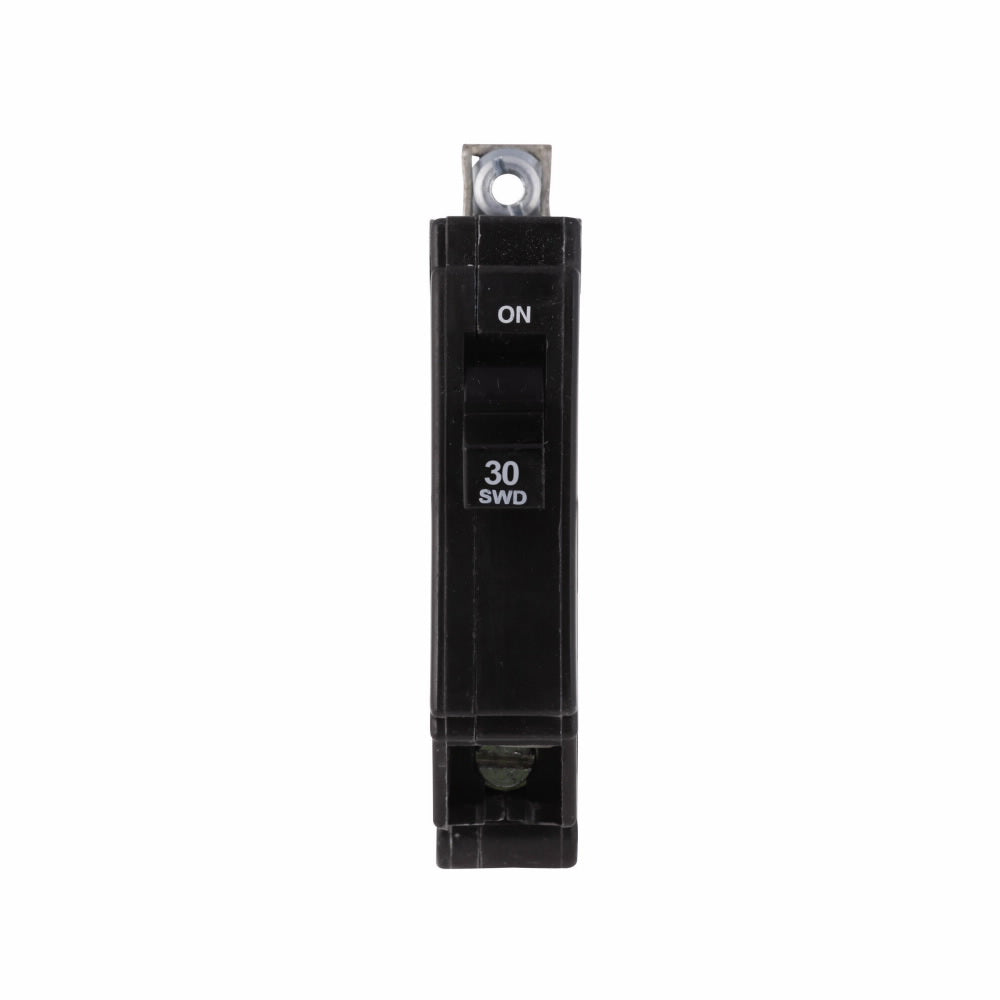

Eaton CHB130 CHB Standard Molded Case Circuit Breaker 30A 1P 120/240V

Product Description

The EATON CHB130 is a type CHB standard molded case circuit breaker. Rated at 120/240 VAC, 30 A, with a 10 kA interrupt rating, this single-pole breaker features an LI trip. It is designed for use with vintage C-H Type PB Panelboards.

• Contacts are sintered weld resistant silver tungsten
• Type CHB breaker handles trip to a position between ON and off and require movement to full OFF to reset the breaker
• Inverse time element thermal element tripping

Product Highlights

The EATON CHB130 circuit breaker provides reliable protection for overheating wires, overloads, and short circuits in various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB130

Technical Specifications

• Amps: 30
• Poles: 1
• Interrupt Rating AC: 10000
• Actuator Type: Handle
• Amperage Rating: 30 A
• Connection Type: Box Lug
• Manufacturer Part Number: CHB130
• Mounting Type: Bolted-On
• Number of Poles: 1
• Phase: 1
• Standards/Approvals: Bureau Veritas Certified|CCC Certified|CE Certified|CSA Certified|GoST-R Certified|Lloyd's Register Certified|UL 489
• Temperature Rating: 60 to 75 deg C
• Trip Type: Long Time and Instantaneous
• Type: Type CHB Standard
• Voltage Rating: 120/240 VAC
• Catalog Number: CHB130
• UPC: 782113112374
• Product Length/Depth: 3.3 in
• Product Height: 3.2 in
• Product Width: 0.7 in
• Product Weight: 0.25 lb
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters
• Interrupt rating: 10 kAIC
• Wire size: #14-8 AWG
• Number of poles: Single-pole
• Special features: 5 mA Ground Fault
• Interrupt Rating: 10 kA
• Number Of Poles: 1
• Wire Size: 14 to 8 AWG
• Standard & Approvals: UL Listed, HACR Rated, Federal Specification W-P-131a
• Application: For type PB and PH panelboards, meter panels and multi metering modules
• Brand: Eaton
• Number of Positions: 1
• Number of Gangs: 1
• Number of Throws: 1
• Maximum Amperage: 30
• Operation Method: On/Off
• Material: Nylon
• Suitable For: Interior
• Voltage: 240
• MPN: CHB130
• Model: CHB130
• Family / Style: CH
• Volts AC: 120, 240
• Mounting: Bolt On
