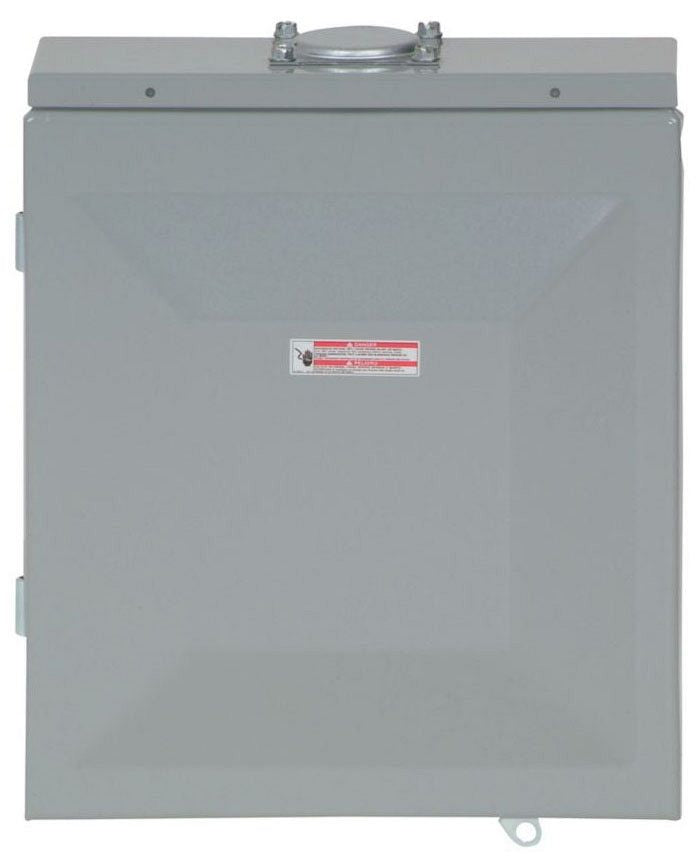

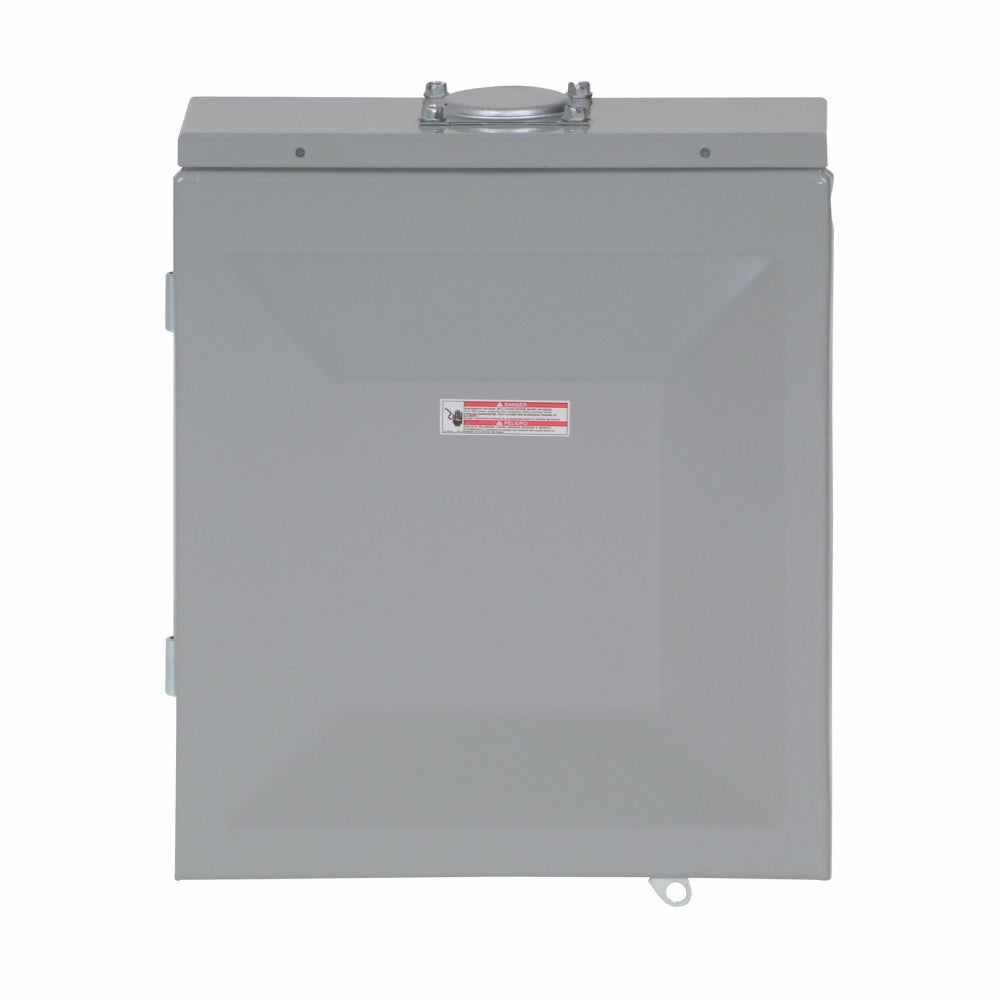

EATON CH8L125RP 1-Phase Main Lug Load Center 120/208Y/240 VAC 125 A 16 Poles 25 kA Interrupt

Product Description

EATON CH8L125RP is a 1-phase main lug load center that operates at 120/208Y/240 VAC and has a total amperage of 125 A. Designed to accommodate up to 16 poles, this model features a 25 kA interrupt capability, making it suitable for various electrical distribution needs.

• Includes surface mount option.
• Compatible with 6 to 1/0 AWG wire sizes.
• NEMA 3R enclosure rated for outdoor use.

Product Highlights

This load center is ideal for both residential and light commercial applications. It acts as an electrical distribution point, guiding electricity throughout the buildings for powering lights and receptacles.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Main Lug Load Center

Technical Specifications

• Voltage Rating: 120/208Y/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 16
• Number of Circuits: 8
• Dimensions: 13 in L x 11 in W x 3.69 in H
• Interrupt Rating: 25 kA
• Wire Size: 6 to 1/0 AWG
• Enclosure Type: NEMA 3R
