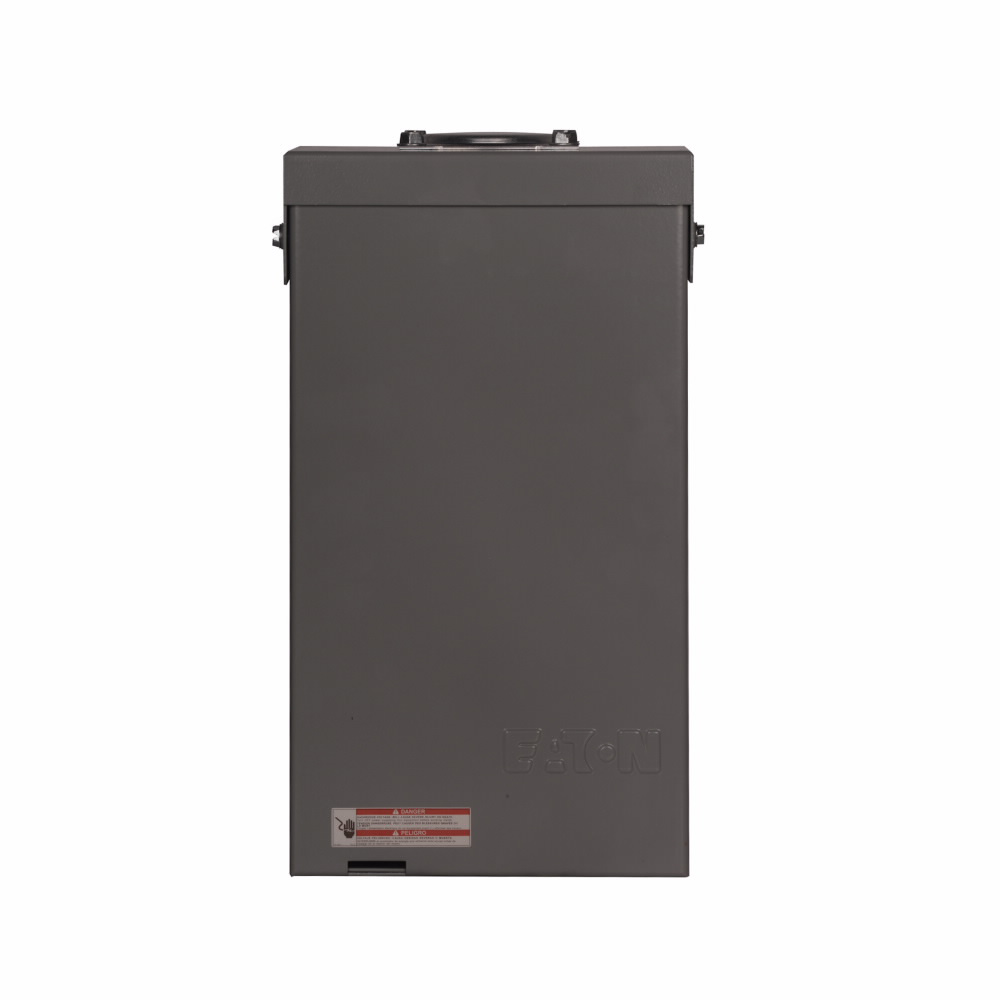

Eaton CH6L125R 1 Phase / CH LC 125A MLO 6

Product Description

Eaton CH6L125R is a main lug load center designed for residential and light commercial use. This load center is rated at 125 amps and supports voltages of 120/240 volts AC. Its NEMA 3R outdoor enclosure provides durability against environmental elements. It features a copper bus and is suitable for various applications including industrial facilities and factories.

• Includes cover for added protection
• Compatible with 8-2 AWG wire sizes
• UL 67 certified for safety standards

Product Highlights

This load center is built to handle six circuits and is configured for three-wire standard applications. Its compact dimensions make it easy to install in tight spaces.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Amperage Rating: 125
• Voltage Rating: 120/240V
• Number of Poles: 6
• Enclosure Type: NEMA 3R
• Material: Metal
• Dimensions: 11.75 inches Length x 6.5 inches Width x 4.5 inches Height
• Wire Size Compatibility: 8-2 AWG
• Interrupt Rating: 25 kAIC
