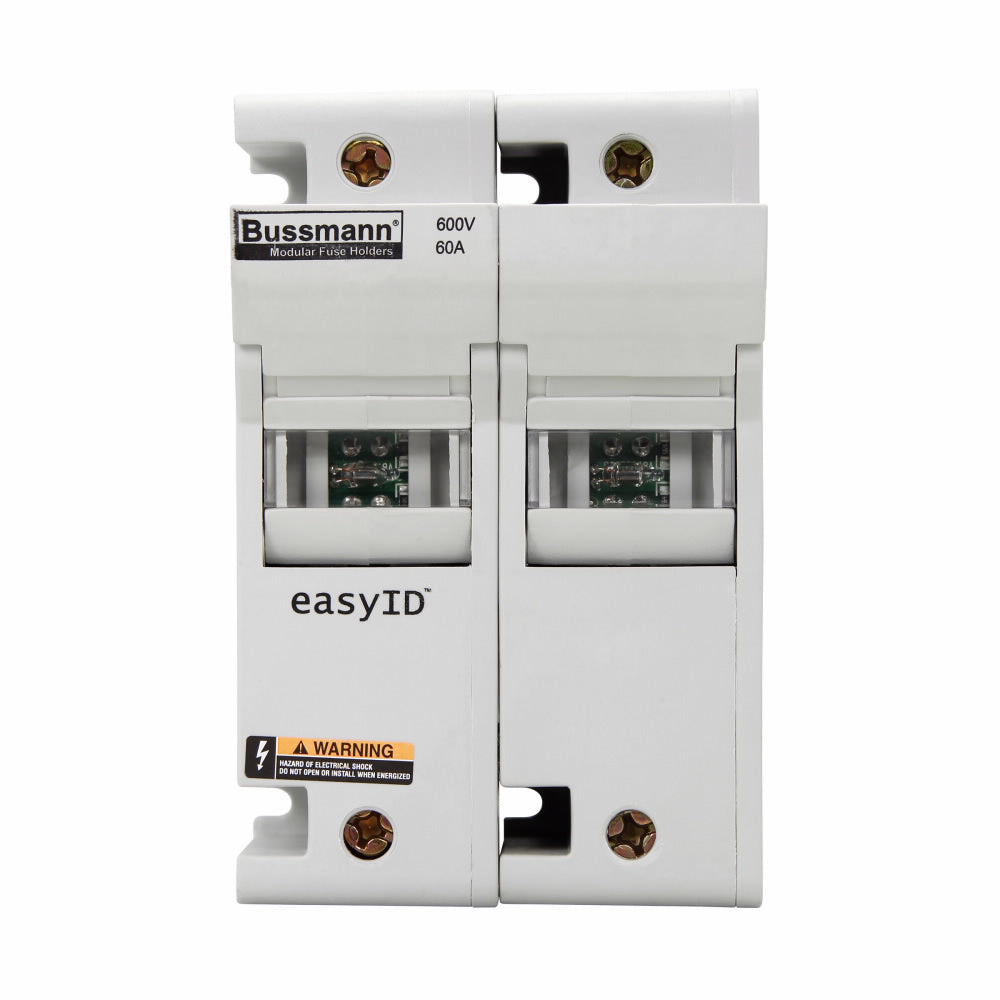

Eaton CH60J2I BUS CLASS J 2P 60A FUSEHOLDER W/INDICATOR (1)

Product Description

Eaton CH60J2I is a Bussmann easyID Fuse Holder designed for electrical assemblies. This product supports up to sixty amps and features a neon lamp indicator for open fuses. Made with finger-safe technology, it ensures improved electrical safety while allowing easy servicing.

• Neon lamp open fuse indicator
• IP20 finger safe with lock out/tag out feature
• Compatible with LPJ, JKS, and DFJ fuse series

Product Highlights

The Bussmann easyID design simplifies panel layouts, using less space and reducing inventory costs.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171263092

Technical Specifications

• Amperage Rating: 60 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Class: J
• Connection Type: Box Lug
• Dimensions: 3.16 in L x 3.31 in W x 4.88 in H
• Fuse Diameter: 1.06 in
• Fuse Length: 2.38 in
• Material: Copper/Thermoplastic
• Mounting Type: DIN Rail/Panel
• Number of Poles: 2
• Temperature Rating: 85 deg C
• Voltage Rating: 600 VAC/VDC
• Standards/Approvals: CE Certified, CSA C22.2 File No.LR47235/39, IEC 60529, RoHS Compliant, UL 512 File No.E14853 Guide IZLT
• Suitable For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuse
