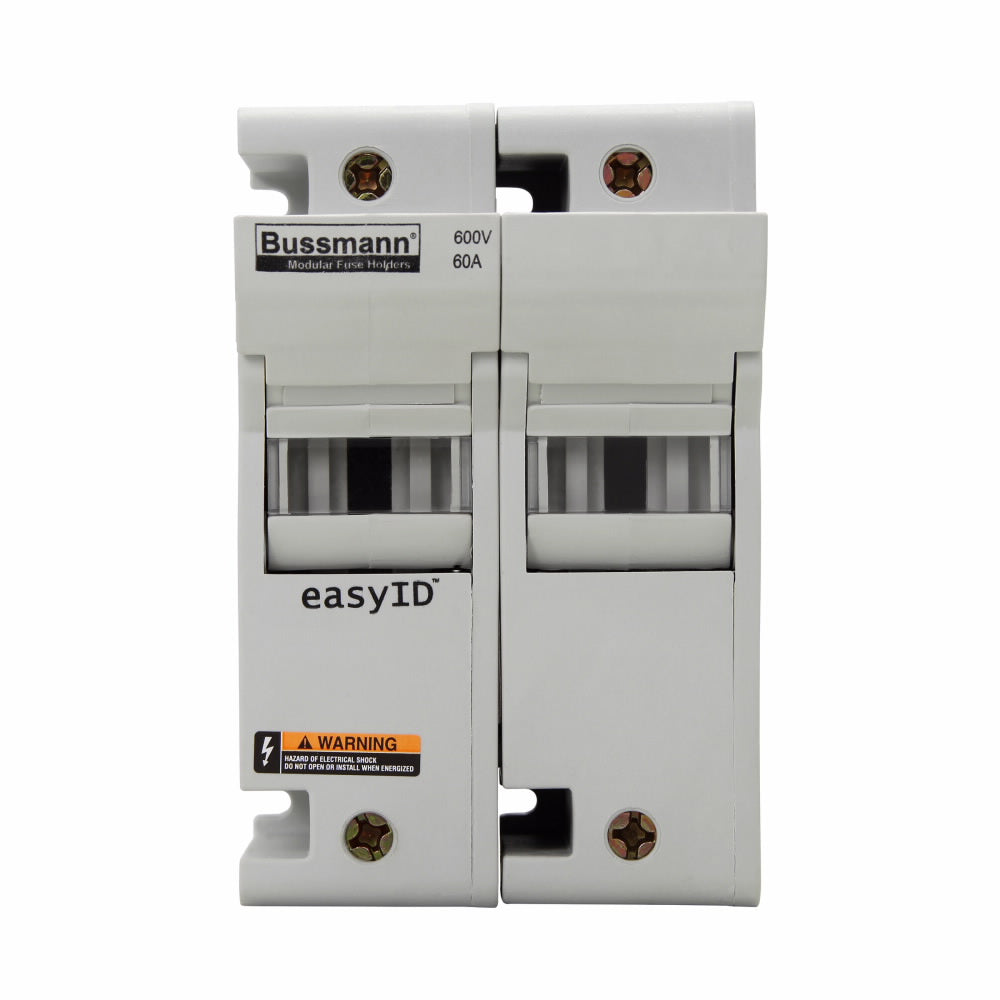

Eaton CH60J2 BUS CLASS J 2P 60A Fuseholder (1)

Product Description

The Eaton CH60J2 Bussmann easyID fuse holder offers a modular design suitable for high voltage applications. This device operates at 600 VAC/VDC with a current rating of 60 A. It supports Class J fuses and is ideal for use in electrical assemblies and panels.

• Finger safe construction enhances safety during installation and operation.
• Compatible with LPJ Series time delay, JKS Series fast acting, and DFJ Series class J high-speed fuses.
• DIN rail and panel mount options allow for flexible installation.

Product Highlights

The Bussmann easyID fuse holder features a viewing window for easy indicator visibility, improving safety and efficiency. The unit's design reduces installation space and simplifies panel layouts.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171263091

Technical Specifications

• Fuse Length: 2.38 inches
• Fuse Diameter: 1.06 inches
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC/VDC
• Class: J
• Number of Poles: 2
• Temperature Rating: 85 degrees C
• Material: Copper/Thermoplastic
• Mounting Type: DIN Rail/Panel
• Connection Type: Box Lug
• Dimensions: 3.16 inches L x 3.31 inches W x 4.88 inches H
