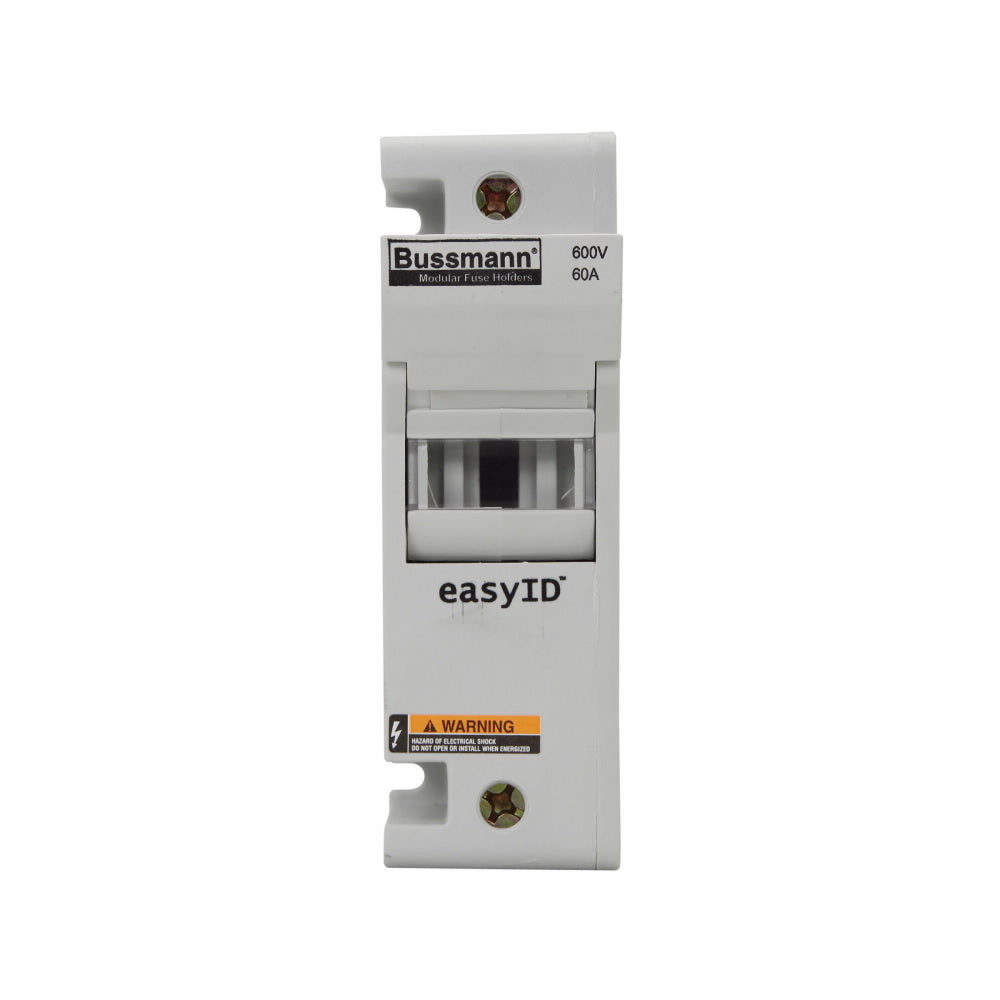

Eaton CH60J1 BUS CLASS J 1P 60A FUSEHOLDER (1)

Product Description

Eaton CH60J1 is a Bussmann easyID Fuse Holder designed for reliable performance. It features a modular design and supports a voltage rating of six hundred VAC/VDC. This holder accommodates a current of sixty amperes and offers a single pole connection.

• Finger safe design enhances safety during installation and maintenance.
• DIN Rail and panel mount options for flexible installation.
• Compatible with LPJ, JKS, and DFJ series fuses for varied applications.

Product Highlights

The CH60J1 features an easyID window for clear indicator visibility and an improved lock out/tag out mechanism for enhanced safety. Designed for use in electrical assemblies and panels, this fuse holder is built to last.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171263088

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC/VDC
• Temperature Rating: 85 deg C
• Dimensions: 1.58 in L x 3.31 in W x 4.88 in H
• Connection Type: Box Lug
• Mounting Type: DIN Rail/Panel
• Fuse Length: 2.38 in
• Fuse Diameter: 1.06 in
