Product Description

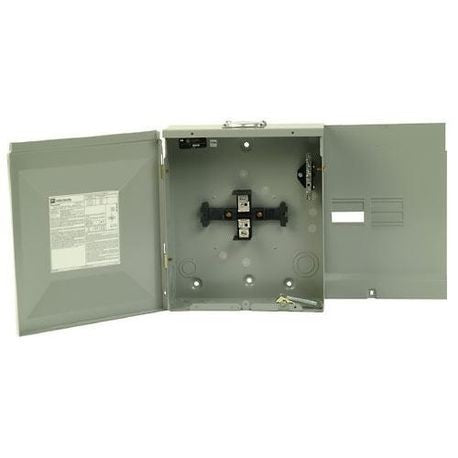

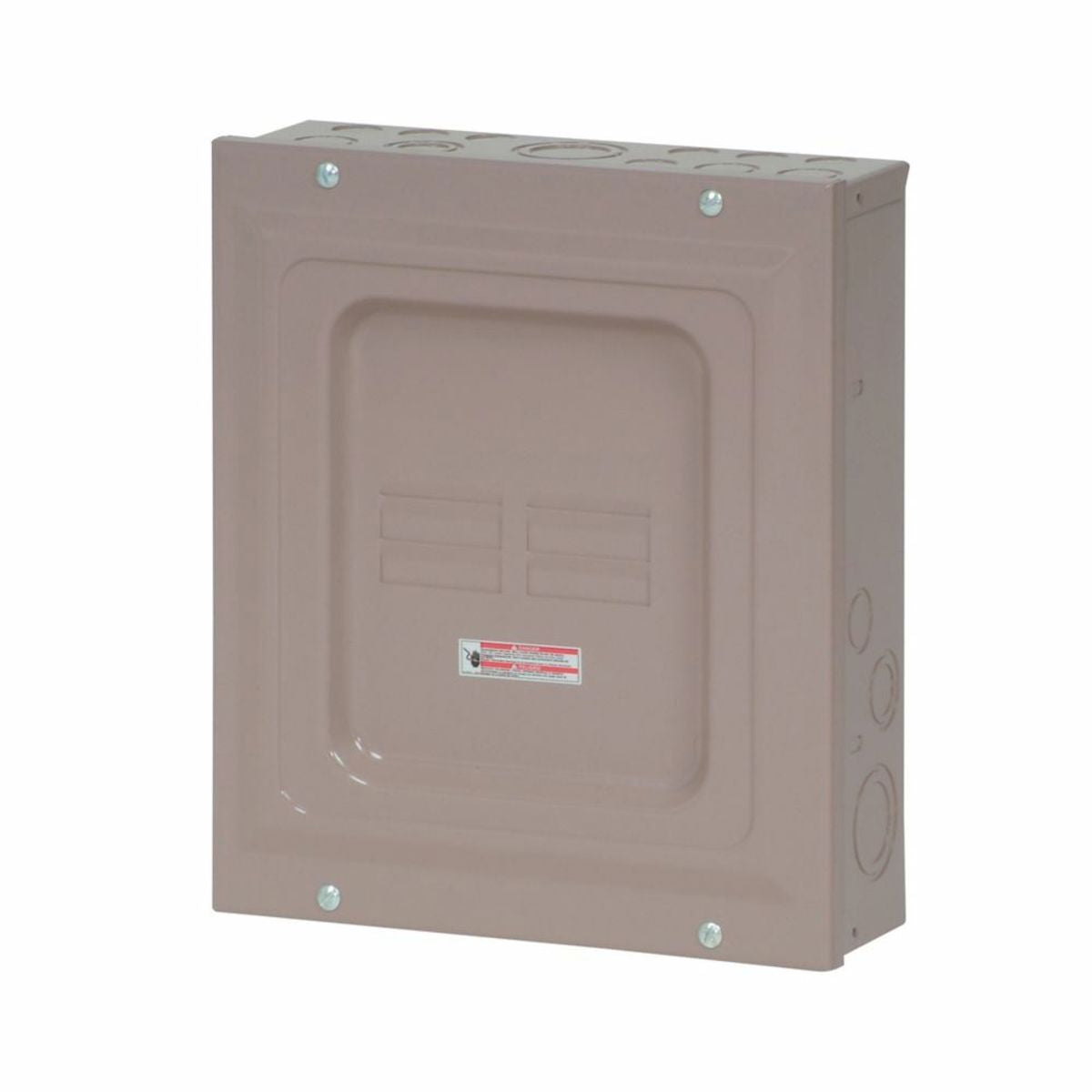

The EATON CH4L125SP Type CH Single-Phase Main Lug Load Center is designed for power distribution and circuit protection. This load center handles voltages of 120/208Y/240 VAC and supports up to 125 amps. It features a compact design suitable for residential and light commercial use.
- Four spaces and circuits
- Surface mount design
- Compatible with 14 to 1/0 AWG wire
Product Highlights
The EATON load center provides flexibility for residential electrical systems, allowing for effective circuit management.
Product Information
Standard Information
-
Brand: EATON
-
MPN: CH4L125SP
Technical Specifications
-
Voltage Rating: 120/208Y/240 VAC
-
Amperage Rating: 125 A
-
Number of Poles: 8
-
Number of Circuits: 4
-
Enclosure Type: NEMA 1
-
Weight: 12.4 lb
-
Dimensions: 13 in L x 11 in W x 3.69 in H
-
Interrupt Rating: 25 kA
-
Wire Size: 14 to 1/0 AWG
