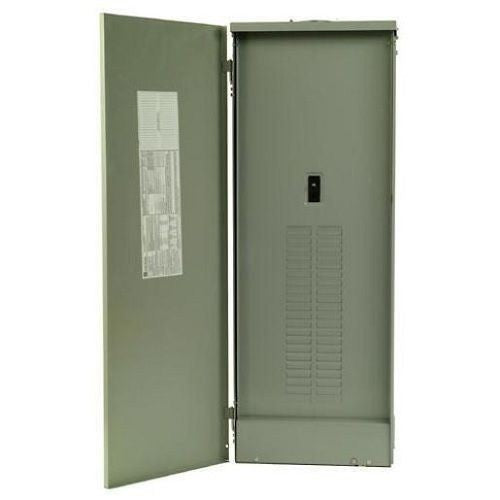

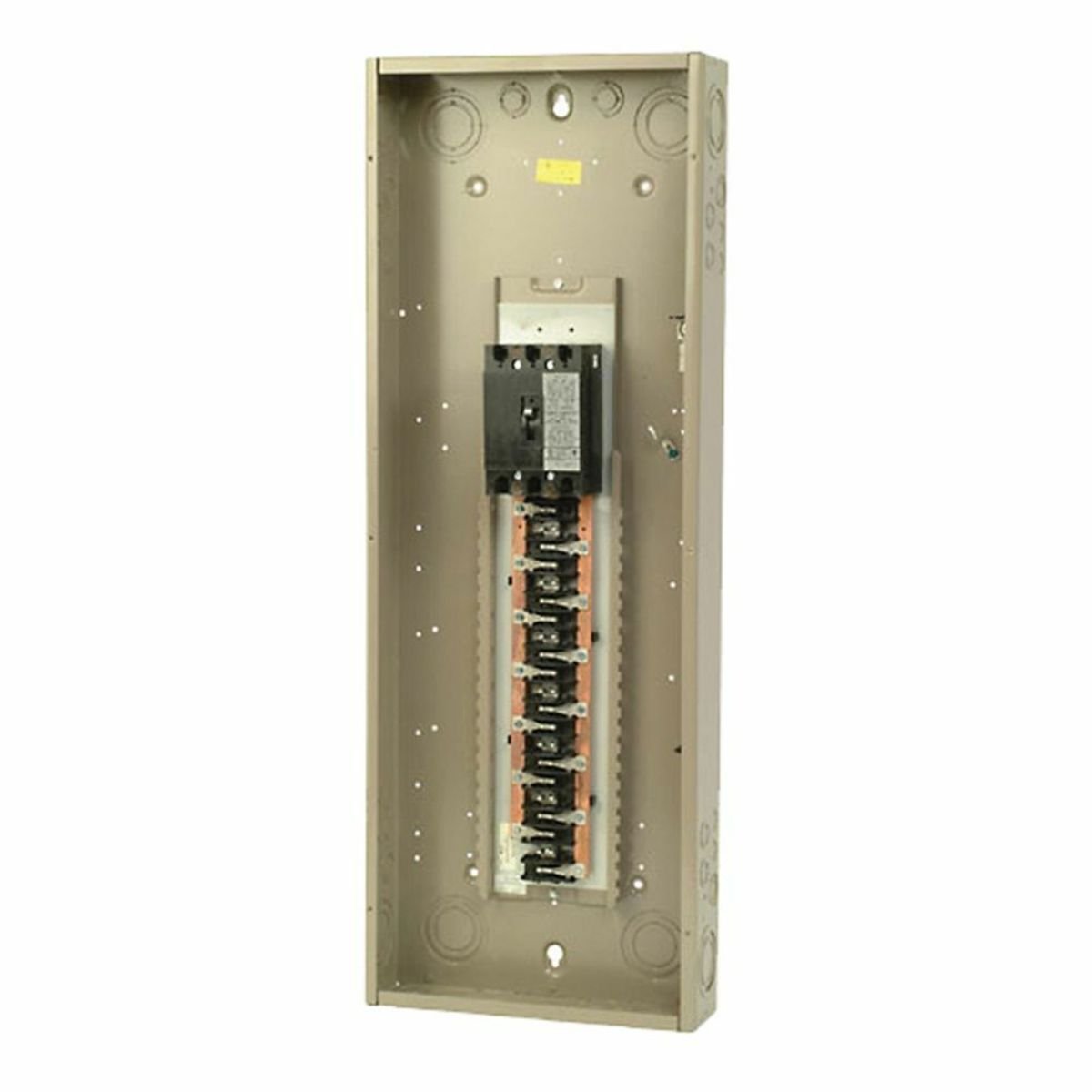

Eaton CH42B3200R Type CH Three-Phase Main Circuit Breaker Load Center, 200 Amp, 42 Space/42 Circuit, NEMA 3R

Product Description

The EATON CH42B3200R is a main circuit breaker load center designed for power distribution and circuit protection in residential and light commercial applications. This 3-phase standard load center is rated for 200 A and 208Y/120/240 VAC, with a 10 kA interrupt rating and a 4-wire wiring configuration. It features 42 spaces and 42 circuits, accommodating CC/CH type breakers.

• One-piece silver flash plated copper bus provides superior conductivity.
• Insulated/bondable single neutral.
• Steel backpan provides positive, reliable mounting.

Product Highlights

EATON CH series loadcenters enclose CH breakers for power distribution and circuit protection. It distributes electricity throughout homes and feeds lights and receptacles. Covers are available as surface, flush or combination.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH42B3200R
• Country of Origin: United States

Technical Specifications

• Type: 3-Phase Standard
• Wire Size: 2/0 AWG to 300 kcmil
• Breaker Type: CC/CH
• Manufacturer: EATON
• Mounting Type: Surface/Plug-On
• Enclosure Type: NEMA 3R
• Voltage Rating: 208Y/120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 42
• Housing Material: Metal
• Interrupt Rating: 10 kA
• Number of Spaces: 42
• Number of Circuits: 42
• Wiring Configuration: 4-Wire
• Catalog Number: CH42B3200R
• Brand: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Application: Residential
• Phase: 3
• Special Features: Standard
• Standard: UL 67,UL 50
• UPC: 782113098296
• GTIN: 00782113098296
• Item Type: Main breaker loadcenter
• Size: L
• Breaker Mounting: Plug-On
• Product Length/Depth: 39 in
• Product Height: 5.19 in
• Product Width: 14.31 in
• Warranty: Limited lifetime
• Certifications: UL 50 UL 67
• Catalog Notes: Furnished with hub closure plates.
• Product Type: Main breaker loadcenter
• Bus material: Copper
• Main circuit breaker: CC
• Feed type: Overhead
• Enclosure material: Metallic
• Number of wires: 4
• UNSPSC: 39121101
