Product Description

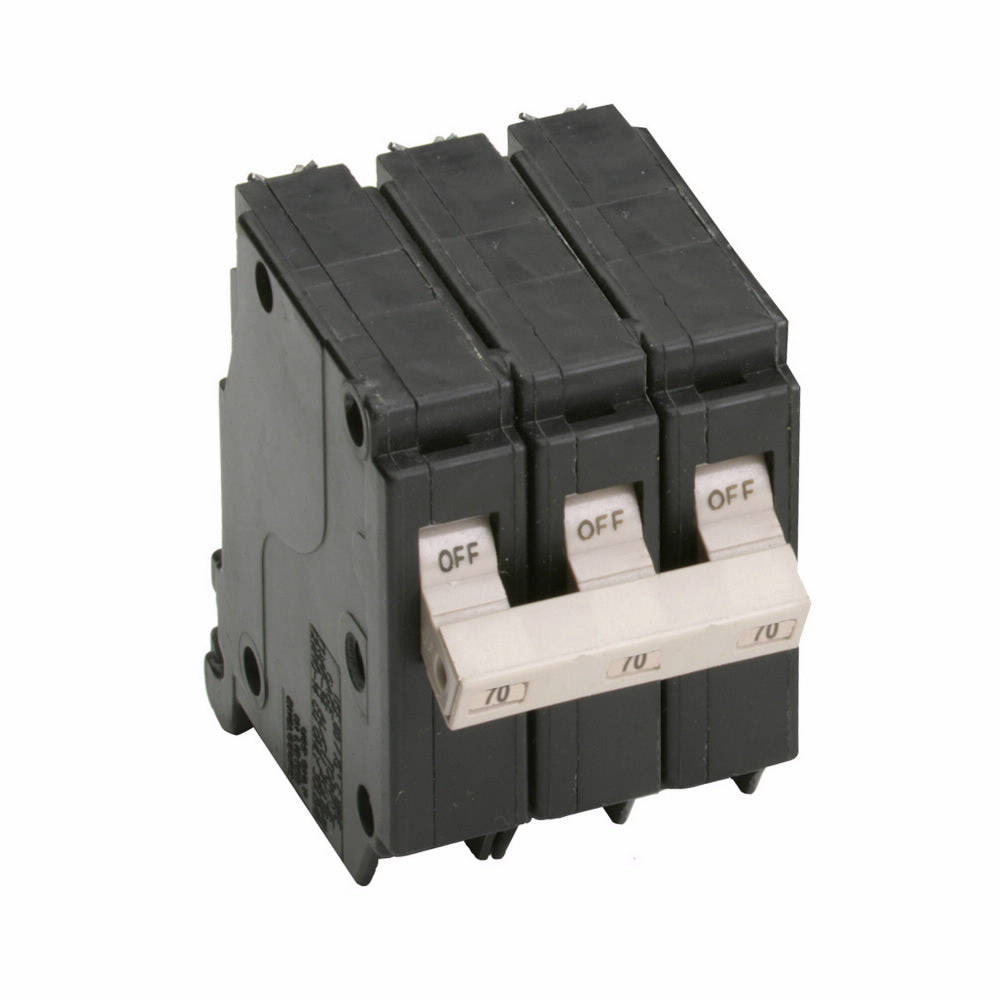

Eaton offers the CH370 Type CH thermal magnetic circuit breaker with a voltage rating of two hundred forty volts alternating current and an amperage rating of seventy amps. This three-pole breaker has an interrupt rating of ten kA and accommodates wire sizes from ten to one aught copper or aluminum. The CH370 provides reliable protection against overloads and short circuits.
- Space-saving three-quarter inch design
- Tri-Drive screw for easy installation with various drivers
- Trip-free handle design reduces callbacks
Product Highlights
This circuit breaker features an instantaneous and long-time trip type, ideal for residential and commercial applications. It incorporates a thermal-magnetic trip curve to minimize nuisance tripping.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Master SKU: a89410d5-59a9-469c-9e72-aed273e247f7
Technical Specifications
-
Catalog Number: CH370
-
Voltage Rating: 240 VAC
-
Amperage Rating: 70 A
-
Number of Poles: 3
-
Interrupt Rating: 10 kA
-
Trip Type: Common breaker trip
-
Dimensions: 3.5 inches H x 0.75 inches W x 3.5 inches D
-
Temperature Rating: 40 deg C
