EATON CH350 Type CH Thermal Magnetic Circuit Breaker, 240 VAC, 50 A, 10 kA Interrupt, 3 Poles

Product Description

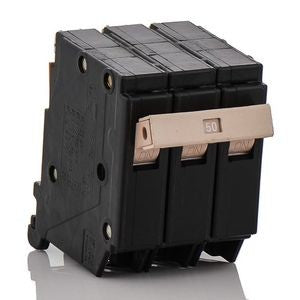

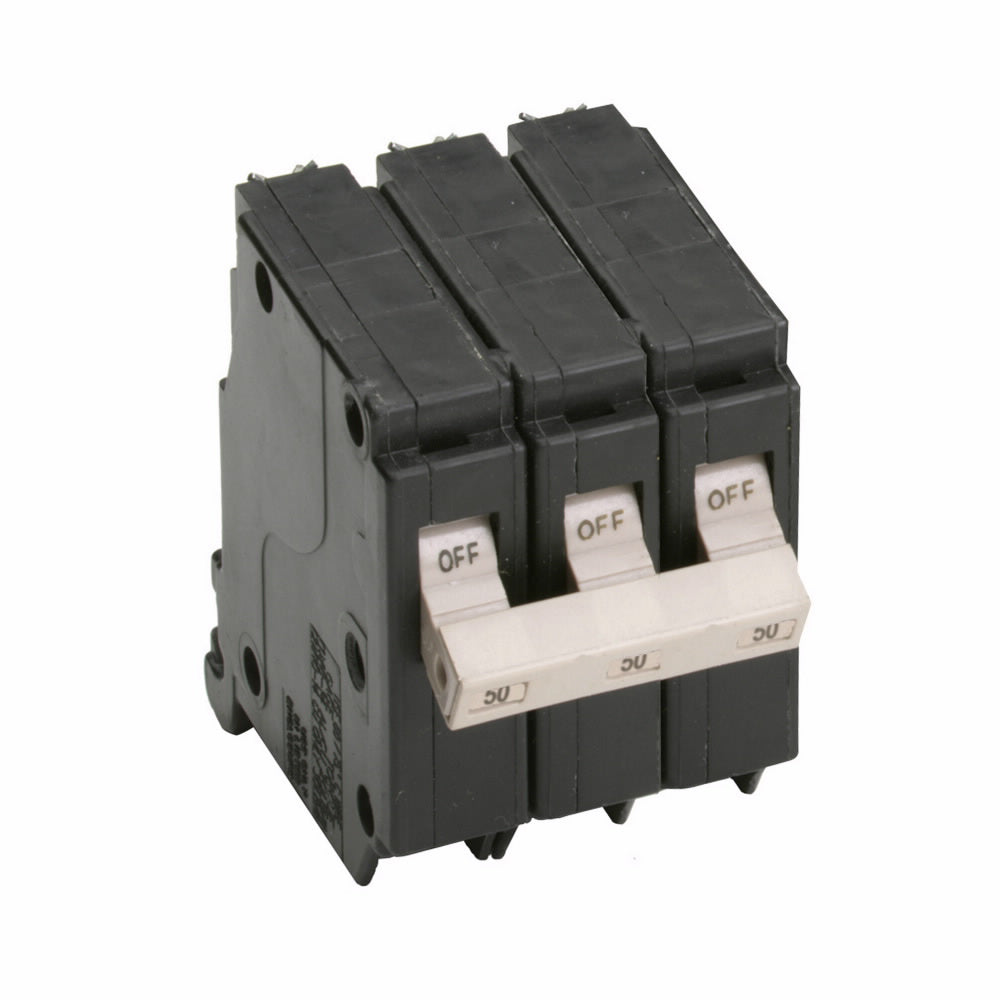

The Eaton CH350 is a type CH thermal magnetic circuit breaker rated for two hundred forty volts alternating current and fifty amps. This 3-pole breaker is built for efficiency and safety in electrical applications.

• Common/Thermal Magnetic Trip
• Interrupt Rating: 10 kA
• Compatible with 10 to 1/0 AWG wire

Product Highlights

The Eaton CH350 circuit breaker provides robust protection for your electrical systems. Its design ensures reliable operation while preventing nuisance tripping. It can be used in various industrial and residential applications, offering peace of mind.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH350

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Interrupt Rating: 10 kA
• Trip Type: Common/Thermal Magnetic
• Dimensions: 2.2 in L x 3.2 in W x 2.6 in H
• Wire Size: 10 to 1/0 AWG
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 degrees Celsius
• Standards: UL 489
