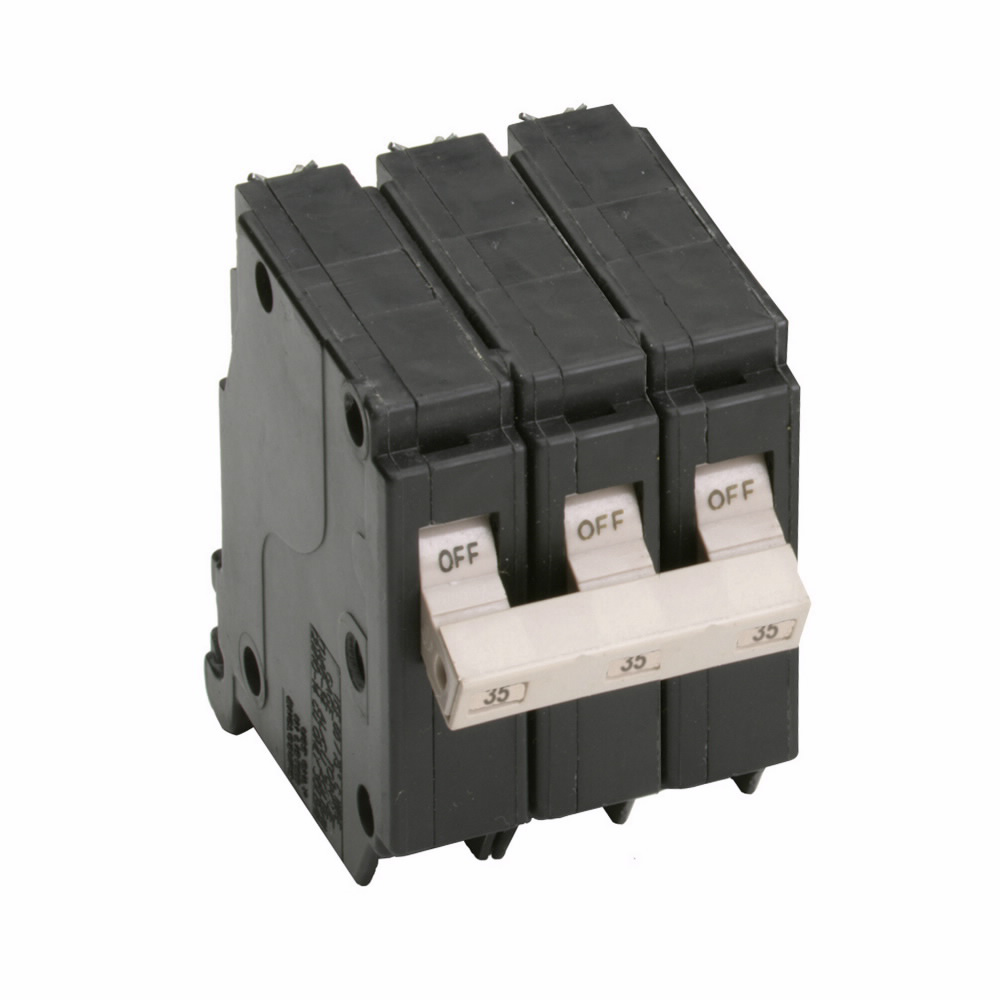

Eaton CH335 3/4 Inch Standard Circuit Breaker 35 A 240V 10 kAIC

Product Description

The Eaton CH335 is a thermal magnetic circuit breaker designed for reliable performance. This type CH standard breaker operates at thirty-five amps and is rated for a maximum voltage of two hundred forty volts. It features a common trip mechanism across three poles and provides an interrupt rating of ten kAIC.

• Three-pole configuration for comprehensive protection
• Common trip feature minimizes nuisance tripping
• Compatible with wire sizes from fourteen to six AWG

Product Highlights

This Eaton circuit breaker is suitable for residential load centers and light commercial applications. Its design helps prevent unwanted trips while maintaining necessary overload protection.

Product Information

Standard Information

• Brand: Eaton
• Type: Thermal Magnetic Circuit Breaker

Technical Specifications

• Catalog Number: CH335
• Voltage Rating: 240 Volt
• Amperage Rating: 35 Amp
• Number of Poles: 3
• Interrupt Rating: 10 kAIC
• Height: 3.5 inches
• Length: 3.5 inches
• Weight: 0.8 lb
• Standards: UL 489
