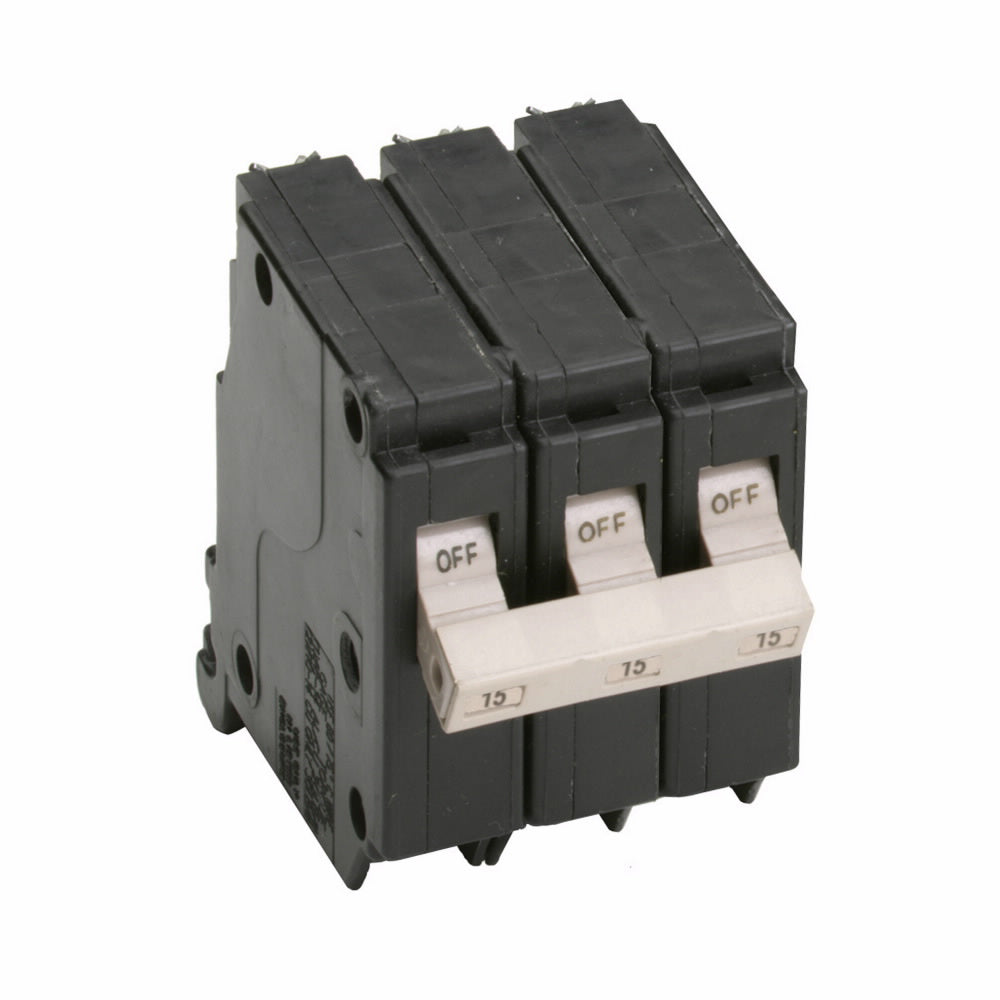

EATON CH315 Type CH Thermal Magnetic Circuit Breaker, 120/240 VAC, 15 Amp, 10 kAIC, 3-Pole

Product Description

The Eaton CH315 Type CH Thermal Magnetic Circuit Breaker is designed for reliable circuit protection in residential and commercial applications. It operates at 240 volts with a rating of fifteen amps and features a thermal magnetic trip mechanism that provides optimal overload and short circuit protection.

• Rated for 240 VAC, 15 Amps
• 10 kA Interrupt Rating
• Three-pole configuration for versatile applications

Product Highlights

This circuit breaker is suitable for various uses, including circuit protection in marine, industrial, and residential environments. Handles feature an On-Off indication, making it easy to operate and identify status.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH315

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Number of Poles: 3
• Trip Type: Common/Thermal Magnetic
• Wire Size: 14 to 6 AWG
• Dimensions: 3 in L x 3 in W x 3 in H
• Temperature Rating: 60 to 75 deg C
• Mounting Type: Plug-On
• Enclosure Type: NEMA 1/3R
